Invacare 9000 XDT Wheelchair

InvacareSKU: 9XDT



The Invacare® 9000 XDT Wheelchair is designed for individuals who demand an extra wide, heavy-duty or tall chair with seat-to floor heights ranging from hemi through tall. The high-performance 9000 XDT wheelchair provides a 350 lb. weight capacity and the components are interchangeable with the other 9000 series wheelchairs.


  • Durable, low-maintenance carbon steel frame is long-lasting
  • Tall frames are designed to accommodate taller individuals and provide a more comfortable ride
  • Multiple frame color variations for customizing
  • Triple-axle positions allow wide variation of seat-to-floor heights

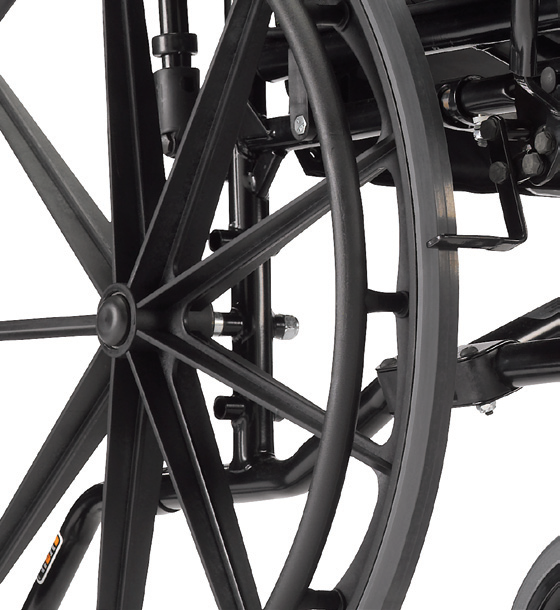

  • Urethane rear tires mounted on “no flex“ wheels offer superior performance

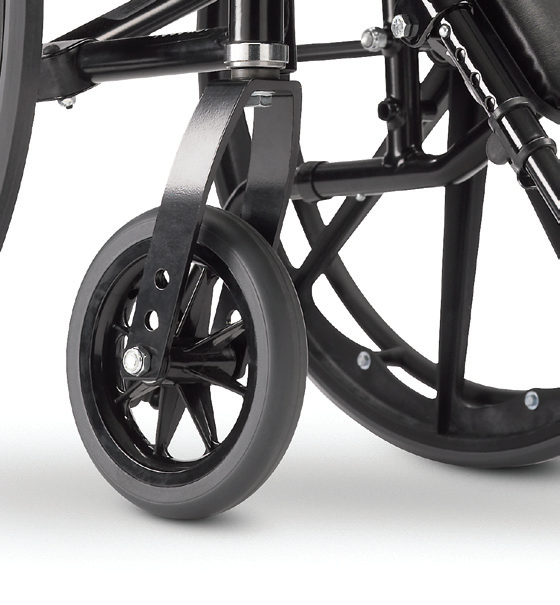

  • Urethane casters for better ride and lighter weight
  • Low-maintenance, dual-sealed precision bearings
  • Heavy-duty inner liners keep seat and back from stretching
Overall Width 23, 25, 27 or 29 inches
Overall Depth (with riggings) 45½ inches
Seat Width 16, 18, 20 or 22 inches
Seat Depth 16, 17, 18, 19 and 20 inches
Seat to Floor**
Super Hemi

17½, 19½ and 21½ inches
Back Style Adjustable - 1-inch increments
Back Height 15 to 19 inches in 1-inch increments
Arm Styles Swing back or removable,
space saver* or conventional,
desk* or full length and
fixed* or adjustable height
Handrims Steel*, aluminum and plastic coated
Front Riggings Swingaway and Elevating Footrest
Wheel Locks Toggle lock - push or pull
Caster Size 8 x 1¼-inch* Urethane,
8x1-inch solid rubber,
8x1¼-inch pneumatic or pneumatic flat-free insert,
8x1¾-inch semi pneumatic
Rear Wheels 24*-inch composite, urethane*,
pneumatic or pneumatic-flat free insert
Rear Axle Permanent
Upholstery Black nylon, black sail cloth, heavy viny
Shipping Weight (Approx.) 46½ lbs (21kg) 16x16-inch seat frame with complete package
Weight (Approx.) 36½ lbs (16kg)
Weight Limits 350 lbs (154 kg)

* These options are standard for this model.
** 9000 XDT - The seat-to-floor heights are based on pneumatic tires and pneumatic tires with flat free inserts. If wheelchair is equipped with urethane tires, subtract ¼-inch from the measurements listed above. All heights are measured with properly inflated new tires. These heights can vary + ¼-inch due to tire wear.
