The Xenon² Series - Available in 3 Models

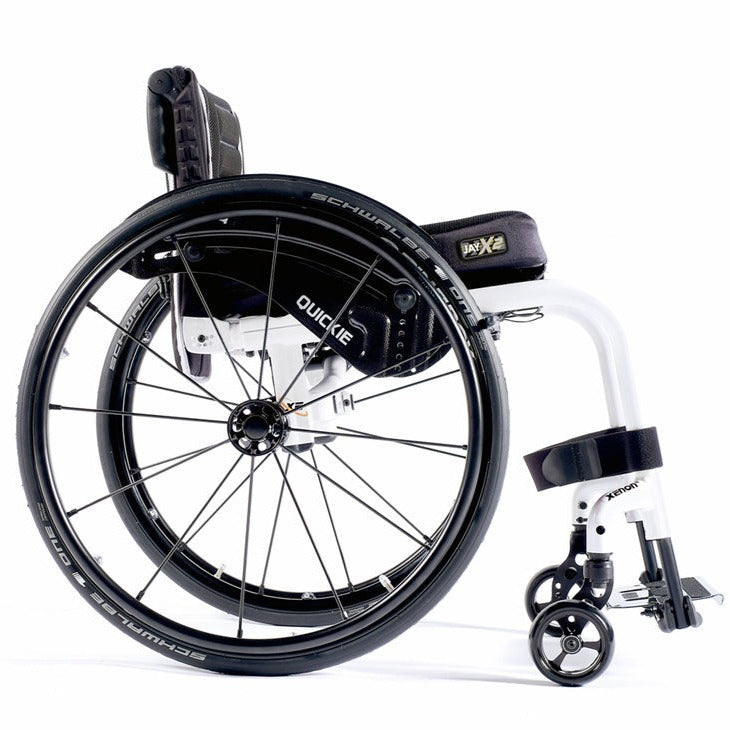

Looking for the very best in driving dynamics or the most compact folding dimensions? We have a Xenon for you. The Xenon² FF delivers an incredibly strong folding wheelchair frame that weighs as little as 19.4 lbs. It's the lightest wheelchair in its class*. Cool, clean, and streamlined design maximizes your speed and efficiency with every push.

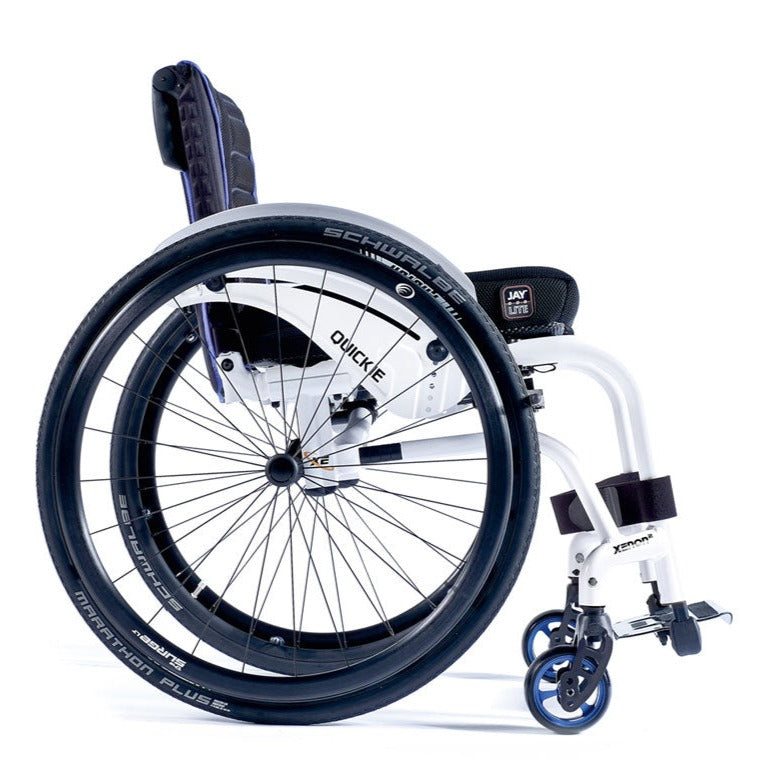

The Xenon² Hybrid has all the benefits of a lightweight wheelchair with no compromises in terms of rigidity. From just under 20.9 lbs. and with a new unique cross-brace combined with the completely redesigned axle stem, the Xenon² Hybrid wheelchair is easy to fold, lift, and transport.

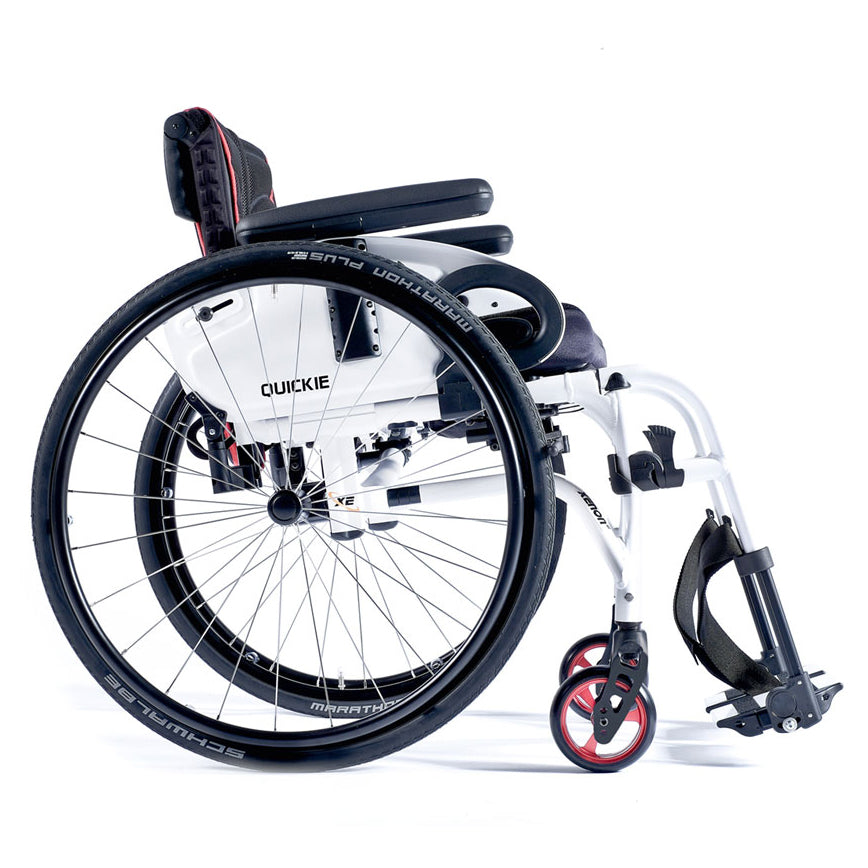

At just 22.7 lbs., with an innovative cross-brace and compact folding dimensions, the Xenon² SA wheelchair is easy to fold, lift, and transport. The swing-away front frame enables easy standing transfers in and out of your wheelchair. It has been cleverly designed to create the kind of minimalistic style that you'd normally expect from a rigid wheelchair. With a sporty, elegant design and innovative technology, the Xenon² SA provides a lightweight folding wheelchair that's the ideal traveling companion for the active person.

* Class is defined as aluminum folding wheelchairs (North America)

Peerless Folding Performance

At the core of the Xenon² is a unique cross-brace that fits so neatly under the seat it's barely noticeable - giving a very minimalistic, open-frame feel that you'd usually associate with a rigid wheelchair.

But the similarities don't end with the appearance. The completely redesigned axle stem combined with the new cross-brace provides the stiff, stable driving performance feel of a rigid frame, but with all the portability of a folding one.

Get the options and features you want on your Xenon²: Surge LT handrims, Angle Adjustable Back, Desk Sideguard, and more.

Options and Features

Get the options and features you want on your Xenon²: Surge LT handrims, Angle Adjustable Back, Desk Sideguard, and more.

Style in Motion

Personalize your Xenon² and stand out from the crowd with a versatile palette of 30 frame colors. There's also seven distinctive anodized colors to choose from for the caster fork and wheel. You can even accentuate your color scheme further by matching or contrasting the trim color of the EXO backrest upholstery.

Do you need help with funding your Quickie chair?
You can try to get funding for your wheelchair through SG Enable Assistive Technology Fund (ATF). To learn more about this service, the eligibility criteria required and how you can apply for the scheme, please click below to access the funding page.
>> Find out More

Model Number	EIX2
Frame Style	Folding
HCPCS Code	K0005
Wheelchair Weight	Fixed Front: as low as 19.4 lbs (14.4 lbs transport weight) Hybrid: as low as 20.9 lbs (16 lbs transport weight) Swing-Away: as low as 22.7 lbs (17.7 lbs transport weight) Weights based on common size (16" x 16") and can vary based on wheelchair configuration and material tolerances. Weights subject to change without notice.
Frame Material	Aluminum
User Weight Capacity	Fixed Front: 240 lbs Hybrid: 300 lbs Swing-Away: 265 lbs
Transit Approved	Yes
Shipping Dimensions	31" L x 24" H x 24" W
Average Shipping Weight	50 lbs.
FRAME AND FEATURE MEASUREMENTS
Seat Widths	Fixed Front: 12.5" to 18" (32 to 46 cm) Hybrid: 12.5" to 19.5" (32 to 50 cm) Swing-Away: 12.5" to 19.5" (32 to 50 cm)
Seat Depths	Fixed Front: 13.5" to 19.5" (34.3 to 50 cm) Hybrid: 13.5" to 19.5" (34.3 to 50 cm) Swing-Away: 13.5" to 19.5" (34.3 to 50 cm)
Frame Angle	80°, 88°
Front Seat-to-Floor Height	Fixed Front: 17" to 21.5" (43 to 55 cm) Hybrid: 17" to 21.5" (43 to 55 cm) Swing-Away: 17" to 22" (43 to 56 cm)
Rear Seat-to-Floor Height	Fixed Front: 14.5" to 19.5" (37 to 50 cm) Hybrid: 14.5" to 19.5" (37 to 50 cm) Swing-Away: 14.5" to 19.5" (37 to 50 cm)
Lower Leg Length Setting	8.6" to 17.7" (22 to 45 cm)
Back Height	9.8" to 18.7" (25 to 47.5 cm)
Angle Adjustable Backrest Adjustment Range	Fore (-) 15° to Aft (+) 13°
Camber	0° / 2° / 4°
Center of Gravity (COG) Adjustment	0.5" to 4.0" (1 to 10 cm)
Tilt Range	N/A
OPTIONS AND ACCESSORIES
Frame Type	Fixed Front Hybrid Swing-Away
Special Packages	Carbon Package: Proton Rear Wheel Carbon Platform footplate / Leg strap Carbon side guard w/ Large fender Ultra Lite Package: Proton Rear Wheel Schwalbe Speed Run Tire Compact Wheel Lock
Tilt Release Options	N/A
Frame Inset	0 or 1 cm
Caster Wheels	3" Micro 4" Low Profile Polyurethane 4" Micro Lighted 4" x 1" Aluminum Polyurethane 4" x 1.25" Semi Pneumatic 4" x 1.5" Aluminum Soft Roll 5" Low Profile Polyurethane 5" Micro Lighted 5" x 1" Aluminum Polyurethane 5" x 1.5" Semi-Pneumatic 5" Soft Roll (Grey) 5" x 1.5" Aluminum Soft Roll 6" Polyurethane 6" Pneumatic 6" x 1.5" Semi Pneumatic 6" x 1.5" Aluminum Soft Roll
Caster Options	Multi-Position Single Sided Frog Legs
Hangers	70°, 80°, ELR
Footplates	Composites (divided) Composites Angle Adj (divided) Aluminum Angle Adj (divided) Multi-Angle Adj (Zfinity) Platform Composite Platform Aluminum Ultra Lite Platform Platform Carbon Fiber
Footplate Options	Heel Loops Leg Strap Gel Hanger Cover Position Plates Platform Swing-Away Mechanism
Axle	Quick Release Steel Quad Quick Release
Axle Plate	Adjustable COG
Rear Wheel Type	24" Mag Wheel 5-Spoke 24" Lite Spoke Wheel 25" Lite Spoke Wheel 24" Ultra Lightweight Spoke Wheel 25" Ultra Lightweight Spoke Wheel 24" Spinergy SPOX Black 25" Spinergy SPOX Black 24" Spinergy LX Black 25" Spinergy LX Black 24" Mountain 24" Proton Wheel 25" Proton Wheel 24" Drum Brake Wheel - 36 Spokes
Rear Wheel Tire	Pneumatic Pneumatic with Airless Insert Full Poly SHOX Performance Poly High-Pressure Clincher Black Knobby V-TRAK Schwalbe^® Marathon Plus Evolution Schwalbe^® Speed Run Schwalbe^® Down Town Two Grip Schwalbe^® Right Run Mountain Tire
Handrims	Aluminum Anodized Aluminum Powder Coated Colored Plastic Coated Natural Fit - Standard Grip Natural Fit - Super Grip Natural Fit - No Thumb Grip Natural Fit LT - Standard Grip Natural Fit LT - Super Grip Natural Fit LT - No Thumb Grip The Surge - Oval w/ Gription Strip The Surge LT - Oval w/ Gription Strip Q-Grip Neoprene Coated Spinergy Flex Rim
Hub Lock	N/A
Suspension	Frog Legs Caster Suspension
Backrest Type	Fixed Fixed Fold Down (to the front) Angle Adjustable Back (75° - 103°)
Back Post Options	Push Handle Ergo Grip Long Fold Down Push Handles Height Adjustable Push Handles
Backrest Options	Stabilizer Bar Stabilizer Bar Swing-Away
Back Upholstery	Standard EXO Tension Adjustable EXO Tension Adjustable EXO Pro 3DX J3 JAY Back
Military Service Patches	Marines Army Navy Air Force Coast Guard Purple Heart
Armrests	Padded Swing-Away Fixed Padded Swing-Away Height Adj Single Post Height Adjustable Removable Desk Sideguard Flip Up Fixed Desk Sideguard Flip Up Height Adj
Arm Pads	Desk Length
Wheel Locks	Direct Mount High Mount Push High Mount Pull Ergo Scissor Compact 6" Extension Handle Pair
Seating	Tension Adj Seat Sling No Pocket Tension Adj Seat Sling 1 Utility Bag 2" Cushion JAY Cushions
Power Assist	N/A
Grade Aid	N/A
Anti-Tips	Rear Anti-Tips Anti-Tip Swing-Away Tip Assist
Side Guards	Plastic - Standard Plastic - Low Aluminum Aluminum with Fender Carbon Fiber Carbon Fiber with Fender
Side Guard Options	Frame color match for Aluminum or Aluminum with Fender
Positioning Belts	Universal 1.5" Auto Buckle Belt
Tray Tables	Small Medium Large X-Large
Accessories	Quickie Backpack Zippie Backpack Seat Pouch Caddy Clear Spoke Guard Black Spoke Guard Gel Cover Hanger/Frame Gel Swing-Away Pad Extra Leg Strap Black Crutch Holder Tool Kit Mobile Phone Pocket Lower Extremity Swing-Away Support
Frame Color Options	Aztec Gold Bead Blast Black Black Cherry Black Opal Blue Opal Candy Blue Candy Purple Candy Red Electric Blue Evergreen Glossy White Glow Green Apple Hot Sparkle Pink Mauve Pink Rootbeer Sparkle Silver Sunrise Orange Titanium Color Paint Yellow Matte Black Matte Black Cherry Matte Electric Blue Matte Evergreen Matte Purple
Anodized Color Options	Black Blue Gold Lime Green Purple Red Ti Grey

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
