Rifton TRAM (Transfer and Mobility Device)

RiftonSKU: 58/K310 (K302)

Frame: Standard
Scale: Without Scale
Price:
$7,270.49

Description

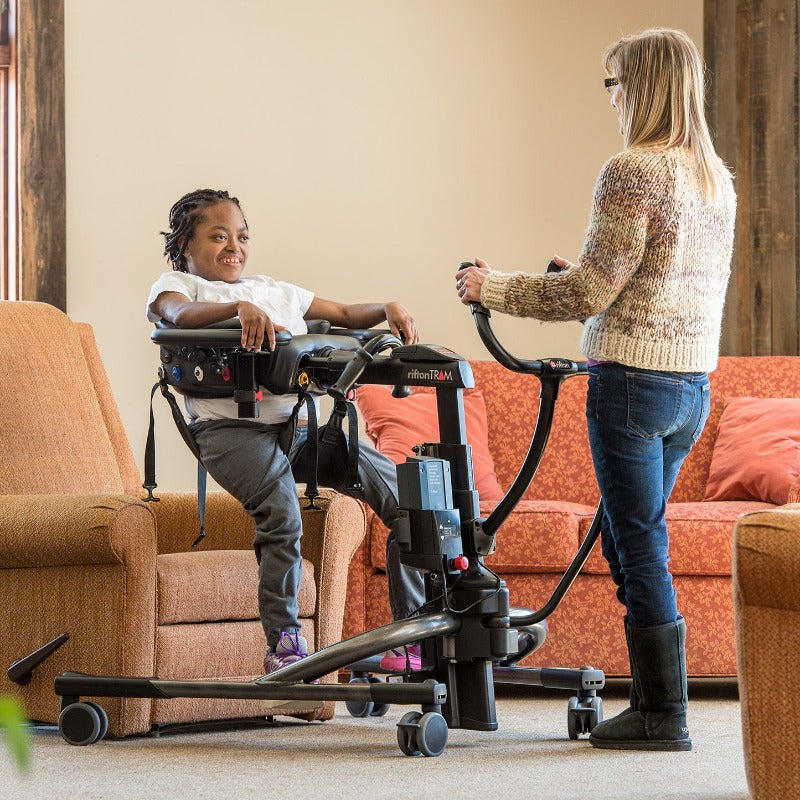

Rifton Tram seated transfer
Seated transfer: Communication between caregiver and client is enhanced with the TRAM.

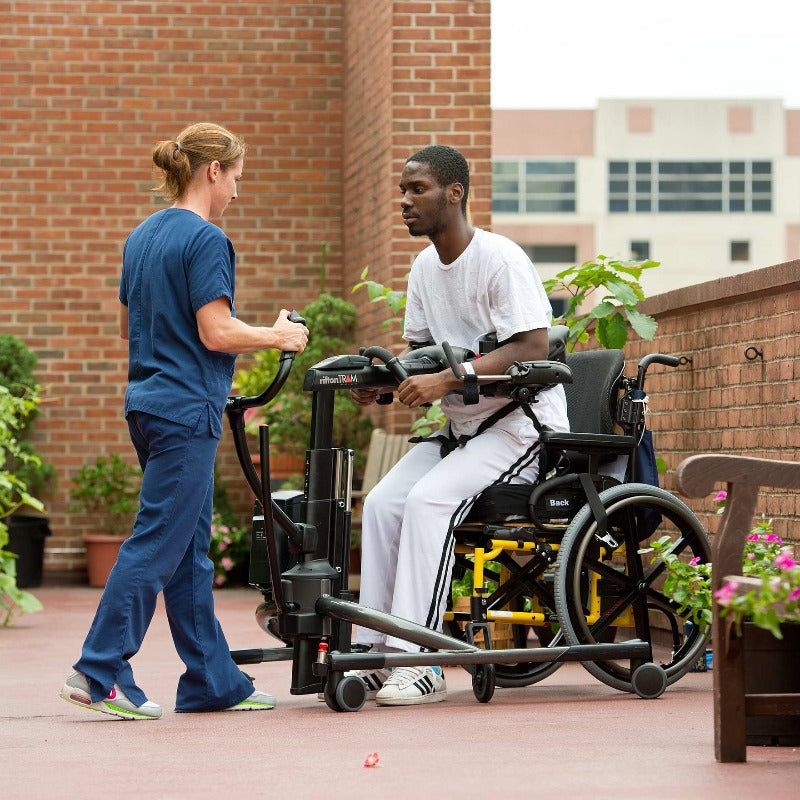

Rifton Tram sit to stand transfer
A single caregiver can assist even a tall client with poor balance in sit-to-stand transfers.

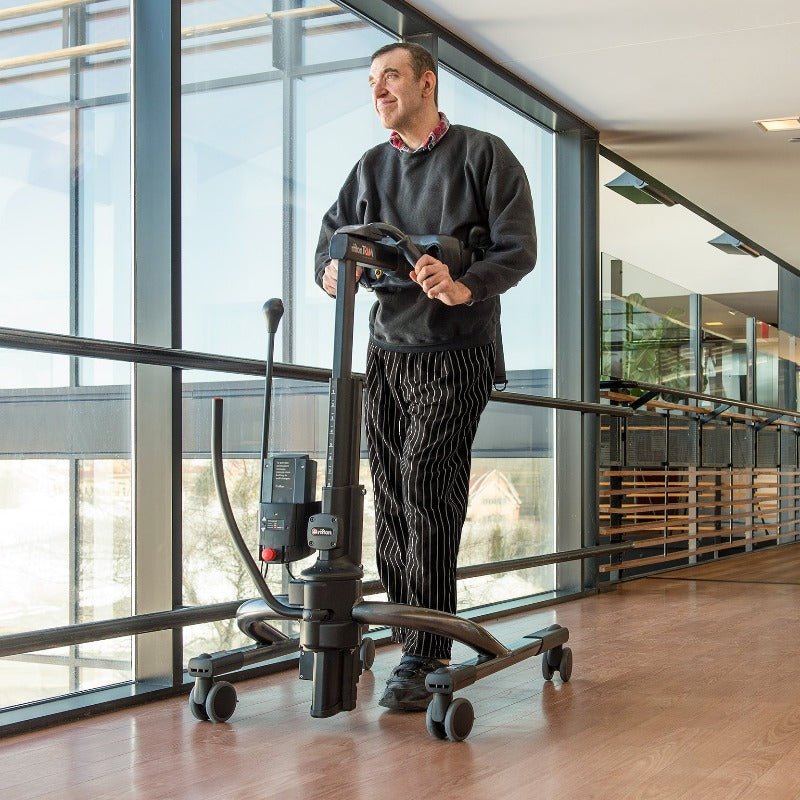

Rifton Tram ambulation

Gait practice made easy with the TRAM

Lift. Ambulate. Transfer.
The TRAM is a transfer and mobility device designed to deliver three powerful functions in one compact unit: gait training, sit-to-stand transfers and seated transfers. The TRAM offers far more utility than a standard patient lift at a remarkably low price.
The Benefits:
✓ An ultralight compact frame that’s easy to manoeuvre in tight spaces
✓ Intuitive controls and adjustments, making it simple for a single caregiver to operate
✓ A body support system that eliminates any lifting by the caregiver, reducing back strain and workplace injuries
✓ 350-pound (160kg) weight capacity and a powerful battery drive that can deliver over 70 lifts on a single charge
✓ An optional built-in scale, allowing you to weigh your client while performing a routine transfer

Capable of lifting and transferring patients of varying abilities and body types, the TRAM features an innovative, patented support system that secures the patient with a simple buckle. This enables the caregiver to quickly prepare the patient for a safe transfer.

At just over seventy pounds, the TRAM’s compact, ultralight frame is manoeuvrable in small or confined areas, as well as simple to transport or store. Quickly adaptable by multiple caregivers, the TRAM’s intelligent engineering significantly reduces back strain and stress – providing a smarter and safer environment for workers.
Arm PromptsRifton TRAM forearm prompt small Arm platformsrifton TRAM arm platforms Walking SaddlesRifton TRAM walking saddle Hip PositionersHip positioner accessory for the Rifton E-Pacer Hip Positioner PadsRifton Pacer small hip positioner pad Thigh StrapsRifton TRAM additional thigh strap Swivel LocksRifton TRAM direction lockrifton TRAM low base direction lock Chargers & Power Cordsrifton sololift accessory american charger and cord Additional BatteryRifton TRAM extra battery Rifton Accessories ToteRifton Pacer accessories tote bag

Important: User’s weight must not exceed the maximum working load.

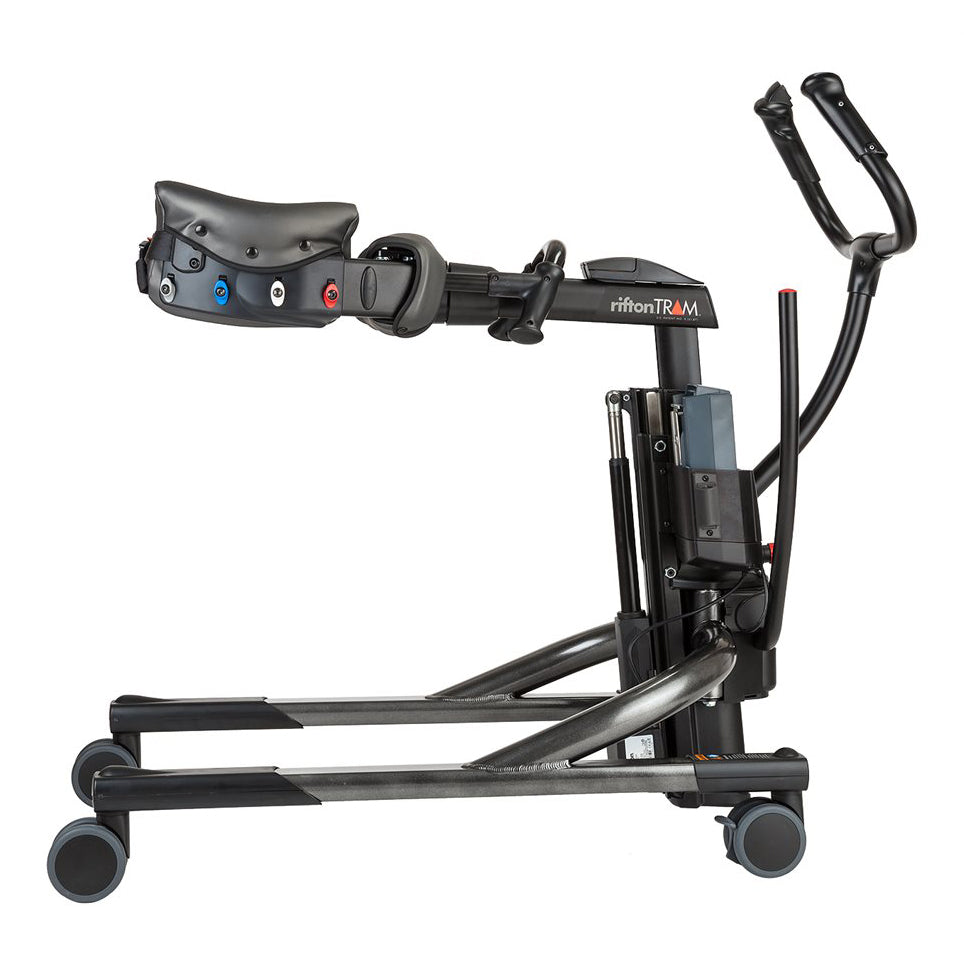

tram side view dimensionstramtopviewdimensions

Item Dimensions (inches)

Type

Rifton TRAM
(K310)

Rifton Low-base TRAM
(K320)

Girth

22-60

22-60

Overall length

45½

45½

Overall width

27½ – 46

27½ – 46

Overall height

43½ – 58

43½ – 58

TRAM weight

70 lbs

70 lbs

Turning diameter

50

50

Floor to top of base leg for furniture clearance

Minimum user armpit height (when standing or ambulating)

30½

30½

Maximum user height (when standing or ambulating)

76 (6'4)

76 (6'4)

Maximum working load (lbs)

350

350


Technical specifications
Lifting speed 1½ inch/sec with no load
Batteries
12V, 2.9 Ah valve-regulated lead-acid gel-type batteries.
(Replacement batteries available from Rifton.)
Battery charger
Wall-mounted charger, 100 – 240 V AC, max 650 mA
 Motor
24V, 6A, permanent magnet motor
Emergency lowering
Electrical
Wheels
Front: 100mm dual with brake; Rear: 100mm dual
Warranty 2 years warranty on frame; 6 months warranty for battery.
Against manufacturing defects.
