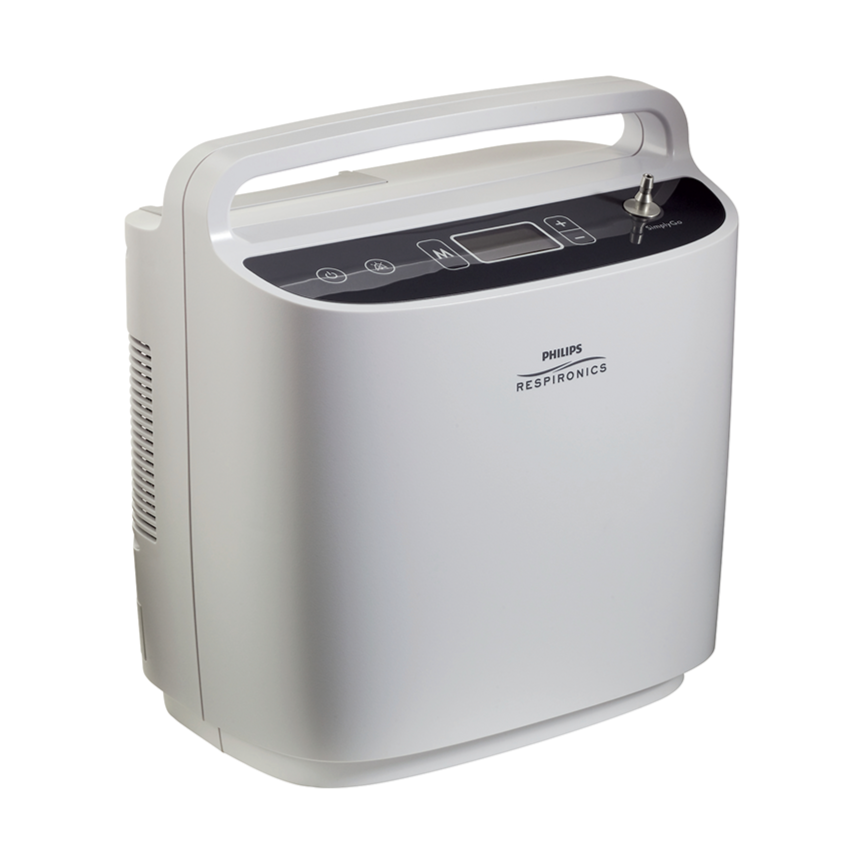

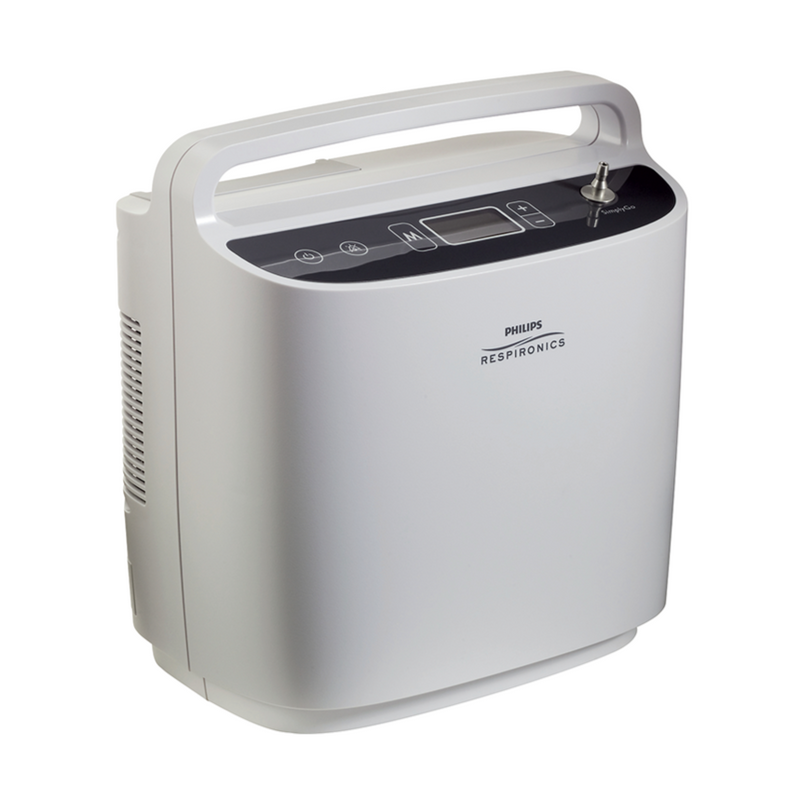

Philips Respironics - SimplyGo Portable Oxygen Concentrator
SimplyGo offers continuous flow and pulse-dose delivery in a device weighing 10 pounds. Reliably manage the therapy and lifestyle needs of your patients with just one POC. Simplify patient management - and your business - with SimplyGo.

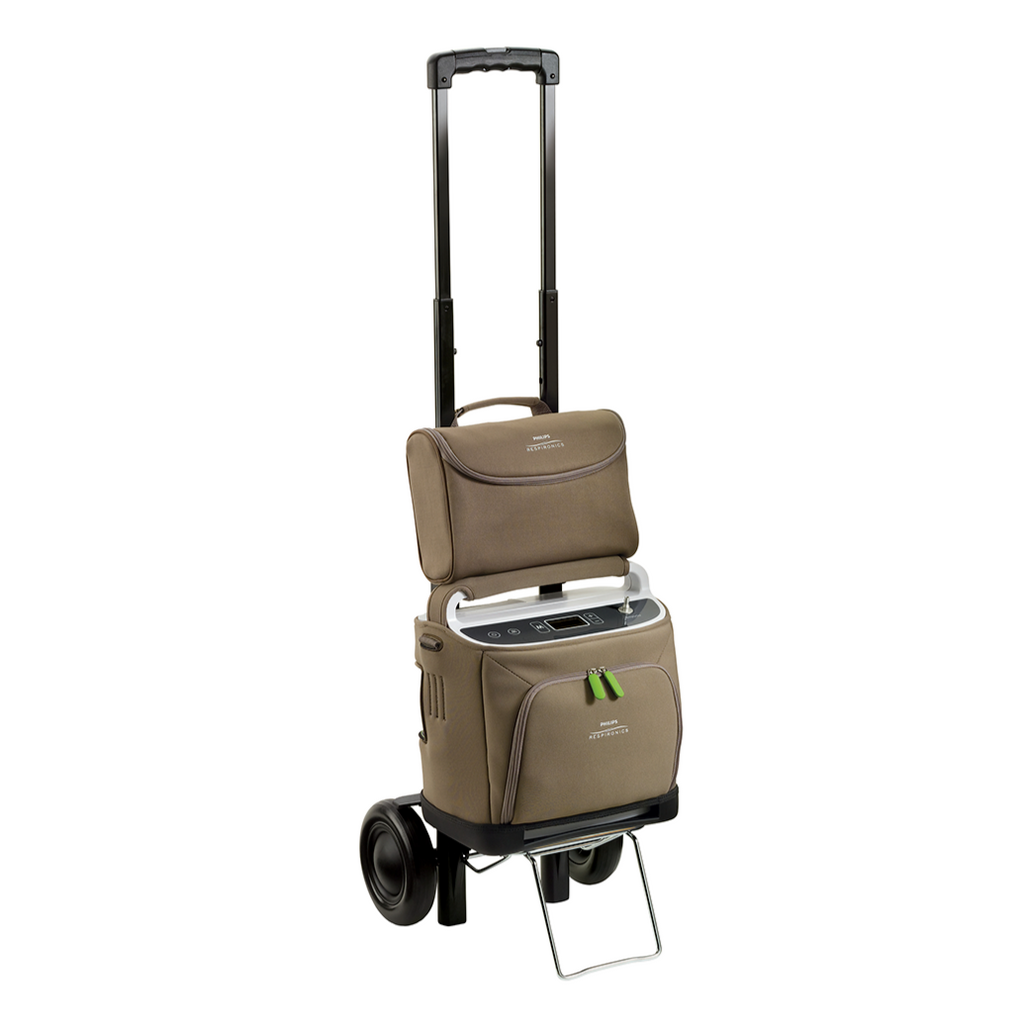

A new breed of POC for continuous and pulsed oxygen delivery SimplyGo is the only POC to offer both continuous flow and pulse-dose delivery in a single device weighing only 10 pounds. Long-life compressor for long-lasting care Long-life compressor for long-lasting care Large oxygen output for all patient needs SimplyGo has more than twice the oxygen output of any POC weighing 10 pounds or less. That means SimplyGo is able to keep up with your patients' portable oxygen needs today and tomorrow. High impact resistant design sets new standards of ruggedness With a long-life compressor, high-quality parts, a high impact resistant design, and oversized cartwheels, SimplyGo was built to set new standards of ruggedness. During development, SimplyGo was rigorously tested and subjected to extreme conditions including impacts, vibrations, and temperatures to deliver reliable performance day in and day out. Teams up with EverFlo for a complete oxygen solution When SimplyGo is teamed up with EverFlo—our low maintenance, lightweight, stationary oxygen concentrator for use in the home—you can create an oxygen-generating system that will meet the needs of nearly all patients while helping to reduce your cost of providing oxygen therapy. An intuitive control panel is easy to read SimplyGo's streamlined control panel is convenient and easy to use. All device operations are immediately at your fingertips. Oversized cartwheels for smooth mobility SimplyGo's handy fold-up cart features six-inch oversized cartwheels for a smoother roll. And the cart's adjustable handle enables users to attach the accessory case and optional humidifier pouch if desired. Carrying case for convenience on the go SimplyGo's attractive multi-purpose carrying case allows users to wear it over the shoulder or secure it to the mobile cart. An extra battery, cannula, or other accessories fit in the zippered pouch. Comes with everything you need, so patients are good to go The basic system includes SimplyGo portable oxygen concentrator, carrying case, mobile cart, one rechargeable Lithium Ion battery, DC and AC power cords, accessory case, and user manual. Exchangeable batteries are powered for success The battery is immediately accessible. One of the keys to SimplyGo's portability is its lightweight and compact battery. It is easily accessible and can be quickly changed by patients. There are no awkward external battery belts, connectors, or hard-to-maintain internal batteries. Do patients want more time? Simply take along more batteries. Operating alarms keep you informed SimplyGo has several operating alarms that allow you to monitor its performance.
Continuous flow settings 0.5/1/1.5/2 l/min Oxygen Concentrations 86 to 97% at all settings % Pulse mode bolus size 1=12ml
Sound level ≤ 43 dB at pulse setting 2 dB Size 29.2 cm x 25.4 cm x 15.2 cm (11.5" x 10" x 6") Weight with battery 4.5kg (10 lbs.) Operating temperature
5° to 40°C (41° to 104°F) SimplyGo's battery duration 3.0 (pulse dose setting of 2*) and 0.9 (continuous flow 2 LPM) hr Filtration Internal bacteria filter Storage temperature -20° to 60°C (-4° to 140°F) Altitude Up to 3.048 m/10,000 ft DC power - input 11.5 to 16 VDC and 18 A max DC power - output 19 VDC and 7.9 A max AC power - input 100 to 240 VAC/ 50 to 60 Hz/1.7 A max AC power - output 19 VDC and 7.9 A max Power consumption 150 while charging/120 while not charging W Alarm types Low oxygen purity/No breath/High breath rate/No flow/Low battery/Depleted battery/Wrong battery/System technical fault Lithium-Ion battery 14.4 VDC 6600 mAh (LiIon), 0.7 kg (1.5 lbs), charge time is approximately 2 to 3 hours per battery from fully discharged
