Overview

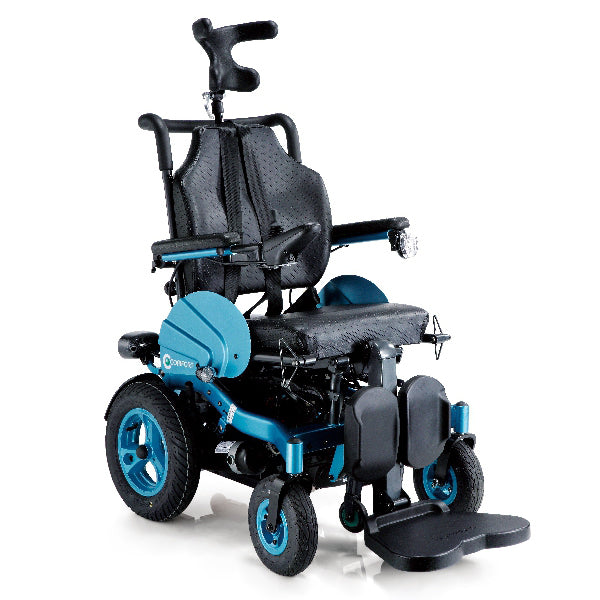

The Standing Wheelchair is meticulously crafted to your needs. Toughness and durability are built-in so you can expect comfort and flawless performance on a daily basis.

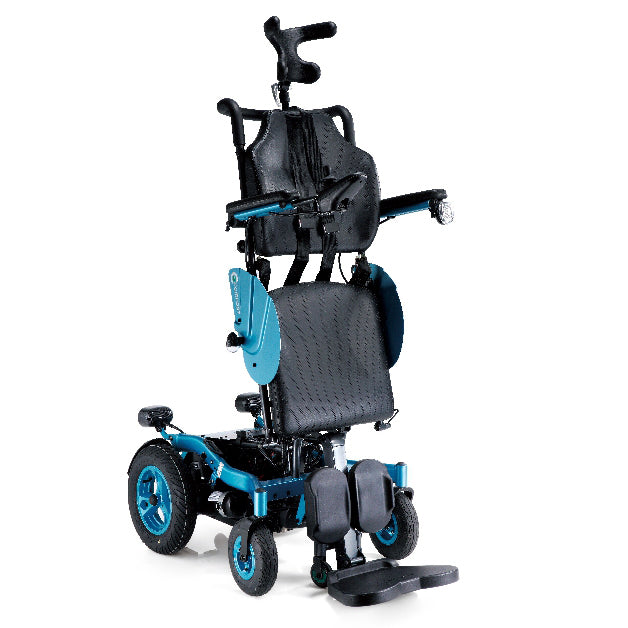

The Standing Wheelchair is a very unique piece of equipment. It allows someone who is normally confined to a seated position in a traditional wheelchair to stand up and stretch out with ease and safety, at any time, in any place.
The Standing Wheelchair isn't just a chair off the rack. Rather, it is a precise-built wheelchair that can help you to become healthier and stronger through repeated standing.
- Electric standing wheelchair
- Standing up, driving function by power
- Rigid steel framework with liquid coating
- With head and signal light (controlled by joystick)
Adjustable headrest
Flip-back armrest
Knee protection
Adjustable footplate
Footplate upwards
Detachable backrest
LED indicator light
Tie down anchorage- Max capacity: 120 kg
Specifications
| Motor: | 450W x 24V x 2pcs |
| Brakes: | Electric-Magnetic Brakes |
| Battery charger: | 5AMP |
| Max speed forward: | 9.15km/h |
| Front castor: | 2.80/2.50-4 pneumatic castor (9") |
| Rear wheel: | 3.00-8 pneumatic tire (14") |
| Seat width: | Size A: 46cm |
| Seat depth: | Size A: 50~55 cm |
| Overall width: | 62cm |
| Overall length: | 113.5cm |
| Slop grade-ability: | Max 10° |
| Max loading: | Size A: 135kg |
| Net weight without battery: | 62.7kg |
| Battery: | 50AH x 12V x 2pcs |
| Packaging: | 38.5" x 27.5" x 31" |
| Warranty: |
3 years on frame 1 year for controller & charger 6 months for battery |
