Permobil F3 Corpus Powerchair

The F3 Corpus offers the smallest footprint of the F-series front wheel drive power wheelchairs. Its compact size and agility allows users to easily maneuver in and out of tight spaces. The optimized battery weight distribution, lower center of mass and fully adjustable ComfortRide suspension improve stability while traversing inclines or declines. Experience the enhanced functionality of the F3 by combining outstanding chassis performance with Permobil’s industry leading Corpus Seating System offering 12” of ActiveHeight and up to 30º of ActiveReach forward tilt technology.

Comfort is King

Compact Stability

The F3 Corpus offers the smallest footprint of the F-series front wheel drive power wheelchairs. Its compact size and agility allows users to easily maneuver in and out of tight spaces.

Make a Statement

New high power LED head lights are twice as bright, making it easier to see and be seen. With a sleek new design, expanded color/hydrographic options and powerful new LED lighting you should be prepared to turn a few heads in your new F-Series.

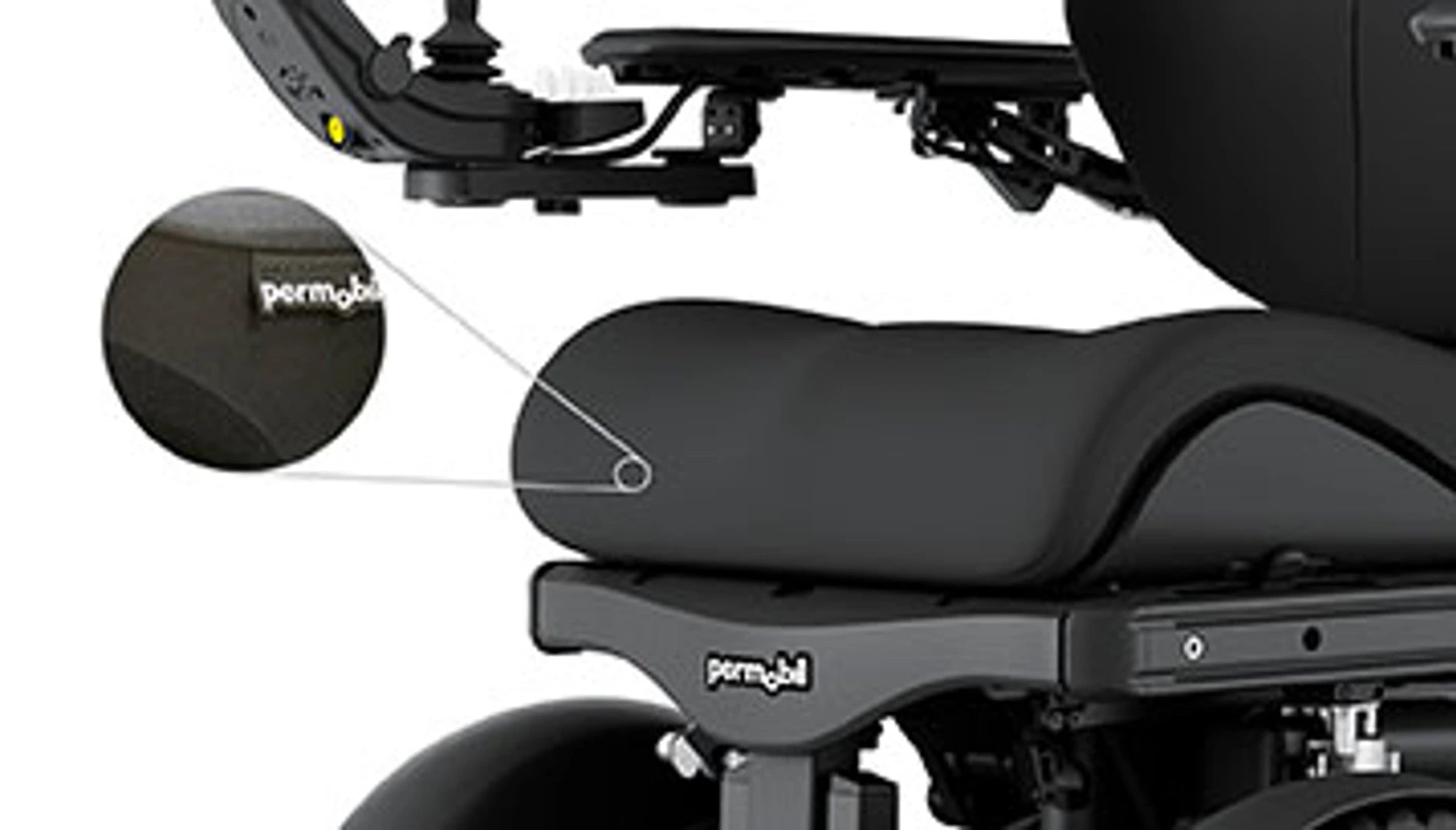

The Corpus® Seating System

Corpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimized power positioning has been enhanced with improved Ergo seat and backrest cushions. Our new dual density backrest foam promotes greater surface area contact while the redesigned Ergo seat pelvic well insert can help pressure redistribution and reduce peak pressures. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam.

Specifications

Max User Weight	330 lb	Maximum Speed	6 mph, 5 mph without anti-tips
Min Seat Width	17 ''	Maximum Seat Width	23 ''
Min Seat Depth	14 ''	Maximal Seat Depth	22 ''
Driving Range	16 mi	Alternate Driving Range	20 mi
Base Width	24 ''	Base Length	36" & 40"
Min Turning Radius	26.5 ''	Ground Clearance	3 ''
Drive Electronics	R-net 120A	Battery Type	Group 24 Gel (Driving Range 20 miles), Group 34 Gel (Driving Range 16 miles)
Seat To Floor Height	17.5", 18.5", 19.5"	Power Tilt Options	0°-50° Posterior and 5º, 10°, 20° & 30° Anterior
Recline Options	85º-120° (manual), 85º-180° (power)	Legrest Elevation	85°-180°
Armrest Pad Lengths	13", 16" & 18"	Backrest Heights	20", 23"-28" (by 1" incr.)
Optional Seat Elevator	12"	Weight Including Batteries	386 lb



Downloads

Permobil F3 Corpus Powerchair User Manual
