Permobil
ROHO Hybrid Elite Dual Compartment Cushion
Combines skin/soft tissue protection and Shape Fitting Technology with stability from a contoured foam base.

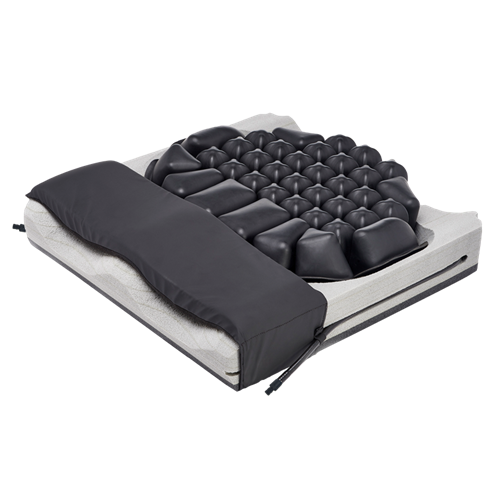

This innovative cushion combines the skin and soft tissue protection and Shape Fitting Technology® of a ROHO DRY FLOATATION® cushion with stability from a contoured foam base. The shape-fitting air insert provides critical pressure redistribution around the pelvis area for those with an obliquity. And the two, independent compartments let you set inflation levels to your exact shape and ideal position.
Based on clinical, scientific or engineering evidence, this product may be suitable for individuals who:
- have a history of skin/soft tissue breakdown and/or any stage pressure injury (including deep tissue injury), skin grafts, and/or myocutaneous flap surgery
- currently have skin/soft tissue breakdown and/or any stage pressure injury (including deep tissue injury)
- are at risk for skin/soft tissue breakdown and/or deep tissue injury
- have normal or impaired sensation
- require accommodation of pelvic asymmetry, up to approximately 2 in. / 5 cm
- require increased stability
- require lower extremity alignment
- require correction of pelvic asymmetry (medial lateral) , up to approximately 2 in. / 5 cm
Powerful Features
Positioning
An individual can achieve greater positioning ability with the Hybrid Elite Dual Compartment cushion. The contoured foam base provides the opportunity for both lower extremity and pelvic alignment and control.
Skin/Soft Tissue Protection
The Hybrid Elite Dual Compartment cushion loads the ischial tuberosities and the posterior shelf of the greater trochanters for those at risk of skin/soft tissue breakdown. The ROHO cushion insert allows for immersion and envelopment of the user’s shape. It provides an adjustable, reduced friction and shear environment that can help protect the user from acquiring pressure injuries. The dual valve option on the ROHO insert allows for customization to match a user’s specific shape and asymmetry.
Stability
The Hybrid Elite Dual Compartment’s customized contoured foam base provides improved positioning of the pelvis and lower extremities, enhancing sitting posture. This added stability assists the individual in achieving a safer transfer in and out of their wheelchair.
Hybrid Elite Dual Compartment Features
- Adjustable to shape and weight in the pelvic loading area
- Adjustable to changes in individual’s position in the pelvic loading area over time
- Hydrostatic distribution of load across the pelvic loading area
- Provides up to approximately 2. in / 7 cm of immersion
- Adds little weight to entire mobility system
- Air-filled cushion insert can be easily cleaned and disinfected
- Cover is machine washable and can be disinfected, foam base may be wiped with damp cloth
- Neoprene cushion insert can be patched or repaired to extend use
- Contoured foam base and air insert are fluid resistant
Foam insert is contoured to provide support to the legs
Foam insert is easily wiped clean and disinfected
Specifications
Includes | Hybrid ELITE Dual Compartment Cushion, two-way stretch cover, hand inflation pump, repair kit, and operating instructions. |
Construction | ROHO DRY FLOATATION air-filled, adjustable, cellular design insert (cushion insert) made of flame-resistant, black neoprene (not made with natural rubber latex) with nickel-plated brass inflation valves. Contoured foam base made of fluid-resistant polyethylene closed-cell foam. Foam Insert: polyurethane foam. |
Height | Air cell height: approximately 3.25 in. / 8.5 cm without load Total cushion height: approximately 4.25 in. / 11 cm without load |
Weight | Varies by size, approximately 3 lbs. / 1.4 kg (based on 2RHE1718C) |
Weight Limit |
500 lbs. / 225 kg (cushion must be properly sized to the individual) |
Limited Warranty |
24 months (does not apply to punctures, tears, or burns; nor does it apply to the removable cover) |
Item Number | Fits Chair Size (width x depth) |
2RHE1414C | 14" x 14" / 36 cm x 36 cm |
2RHE1415C | 14" x 15" / 36 cm x 38 cm |
2RHE1416C | 14" x 16" / 36 cm x 41 cm |
2RHE1515C | 15" x 15" / 38 cm x 38 cm |
2RHE1516C | 15" x 16" / 38 cm x 41 cm |
2RHE1516C | 15" x 16" / 38 cm x 41 cm |
2RHE1517C | 15" x 17" / 38 cm x 43 cm |
2RHE1615C | 16" x 15" / 41 cm x 38 cm |
2RHE1616C | 16" x 16" / 41 cm x 41 cm |
2RHE1617C | 16" x 17" / 41 cm x 43 cm |
2RHE1618C | 16" x 18" / 41 cm x 46 cm |
2RHE1620C | 16" x 20" / 41 cm x 51 cm |
2RHE1716C |
17" x 16" / 43 cm x 41 cm |
2RHE1717C | 17" x 17" / 43 cm x 43 cm |
2RHE1718C | 17" x 18" / 43 cm x 46 cm |
2RHE1720C | 17" x 20" / 43 cm x 51 cm |
2RHE1816C |
18" x 16" / 46 cm x 41 cm |
2RHE1817C | 18" x 17" / 46 cm x 43 cm |
2RHE1818C | 18" x 18" / 46 cm x 46 cm |
2RHE1820C | 18" x 20" / 46 cm x 51 cm |
2RHE2017C |
20" x 17" / 51 cm x 43 cm |
2RHE2018C | 20" x 18" / 51 cm x 46 cm |
2RHE2020C | 20" x 20" / 51 cm x 51 cm |
2RHE2218C |
22" x 18" / 56 cm x 46 cm |
2RHE2220C | 22" x 20" / 56 cm x 51 cm |
2RHE2222C | 22" x 22" / 56 cm x 58 cm |
2RHE2418C | 24" x 18" / 61 cm x 46 cm |
2RHE2420C | 24" x 20" / 61 cm x 51 cm |
