Overview

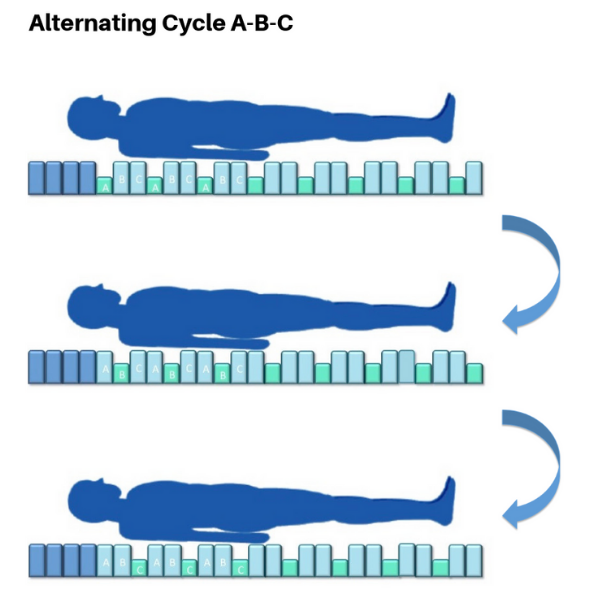

✓ Alternating mode - provides better airflow reduces heat and humid for the user✓ Static mode - air is pumped at 65% of the user's weight. Suitable for feeding or when the user at sitting position. ✓ Auto firm - air is pumped at 100% of the user's weight. Suitable when the user needs to transfer from bed to chair, or chair to bed
✓ Therapy up to stage II pressure ulcers. ✓ Patient weight adjustable from 30 to 150 KG. ✓ Bottom out: keep the patient’s bottom from touching the hard base when in an upright seating position. ✓ Mattress material is water-resistant, flameproof, and stain-resistant. ✓ Pillow function: remain static in the 4 tubes at the head zone. ✓ C.P.R. valve: air release within 15 sec. ✓ Pump: noiselessness and low vibration. ✓ Quick connector and transport CAP. ✓ Tube with true low air loss hole. ✓ Non-slip base. ✓ Easy operation ✓ Lightweight pump hooks easily ✓ Low energy consumption
We truly care about the safety of our customers and therefore, we will provide a free personalized onsite training session during delivery.

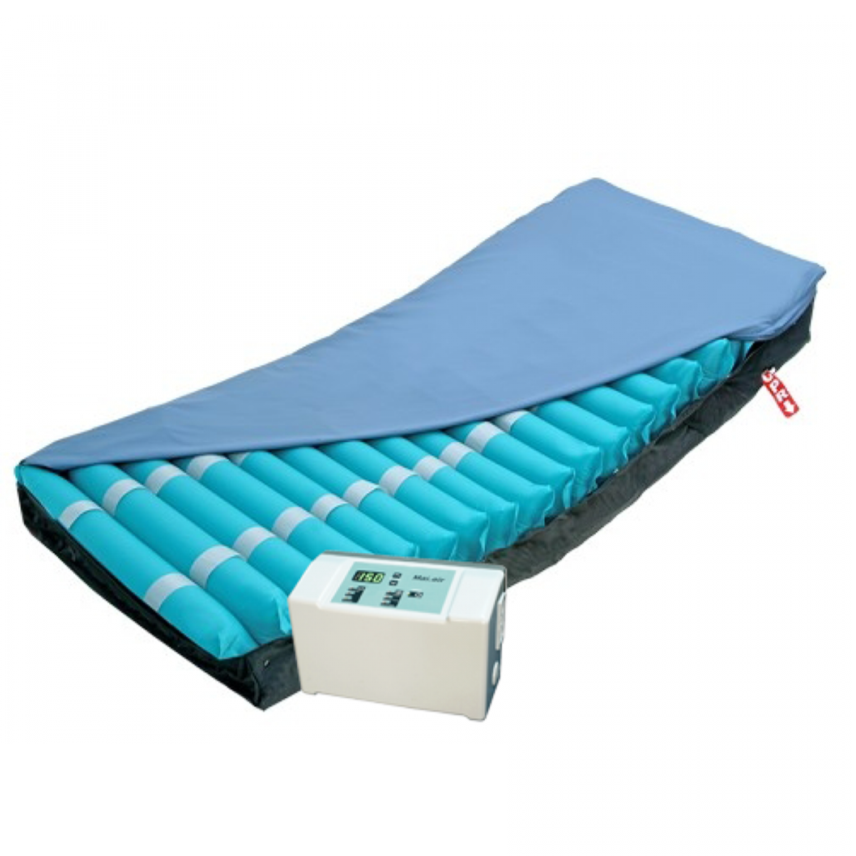

Specifications
| Mattress Type: |
Cell (Tube) Type |
| Dimension (D x W): | 200cm x 90cm |
| Height: | 4" (10.16 cm) |
| Material: | Nylon + 0.2 mm TPU film |
| No. of Cells: | 18 |
| Water-Resistance Mattress Cover: | Yes |
| Function: | Pillow Function, CPR, Quick Connector, Static |
| Cover: | Ny70D /0.015 TPU film |
| Warranty: | 1 year against manufacturing defects; wear and tear not included. |

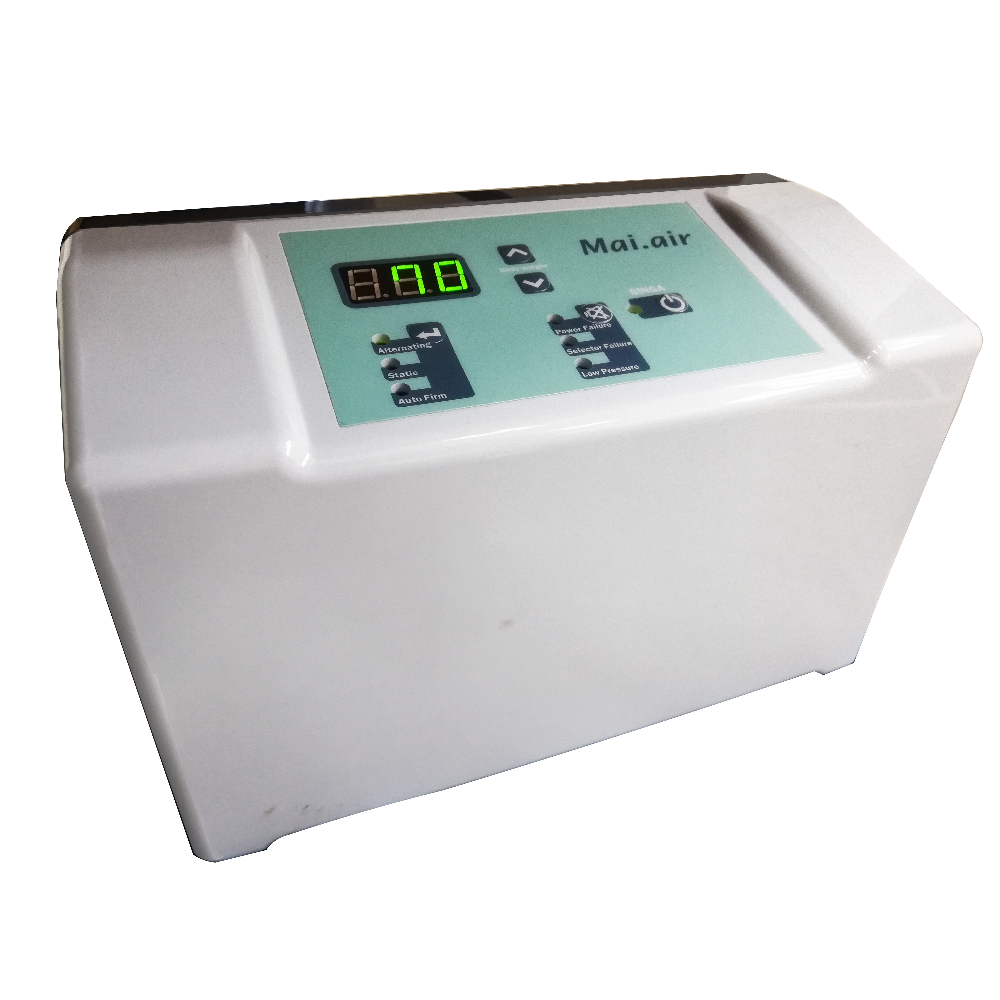

Pump
|
Dimension (LxWxH): |
260 x 125 x 170mm |
|
Voltage: |
220v |
|
Weight: |
1.5 kg |
|
Pressure Range: |
40~90 mm/Hg |
|
Cycle Time: |
8 min/60Hz |
|
Alternating Mode: |
3 sections |
|
Alarm Mode |
Power failure alarm / Selector failure alarm / Low pressure alarm |
|
Safety Standards |
EMC |
|
Weight Range |
30-150kg |
| Warranty | 2 years |
