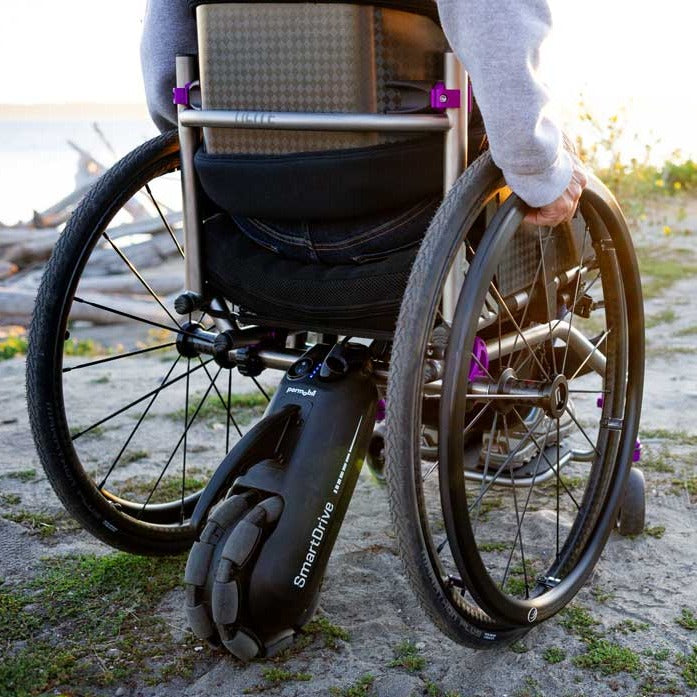

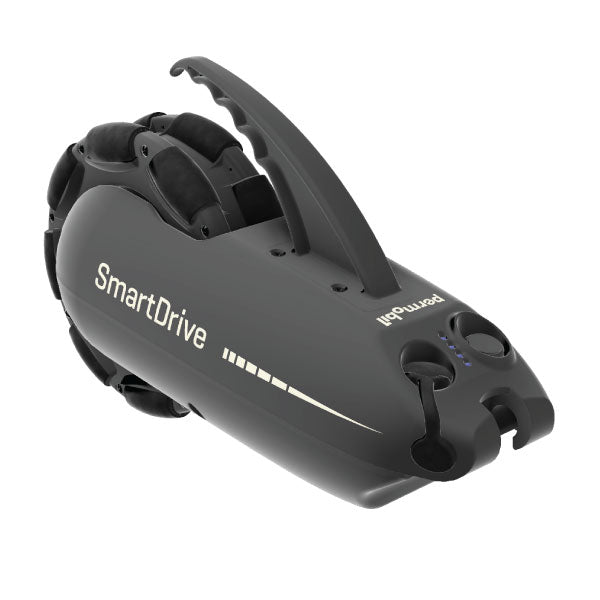

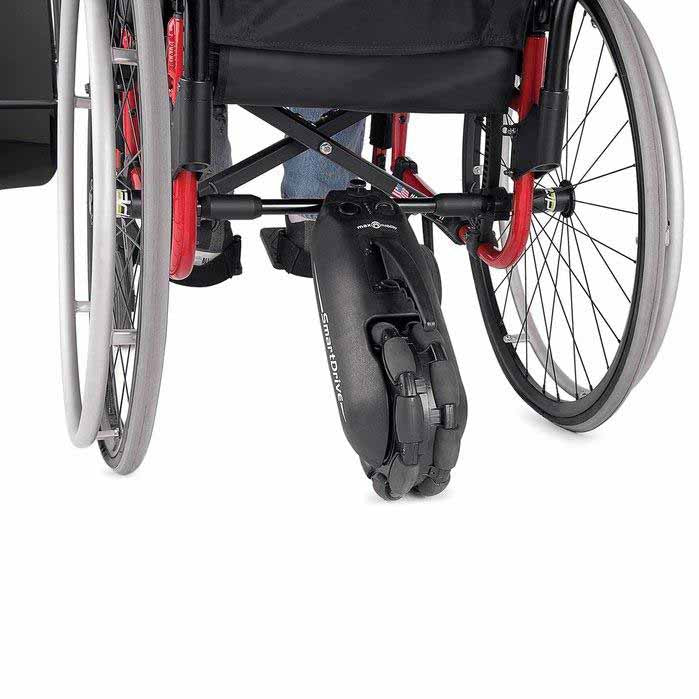

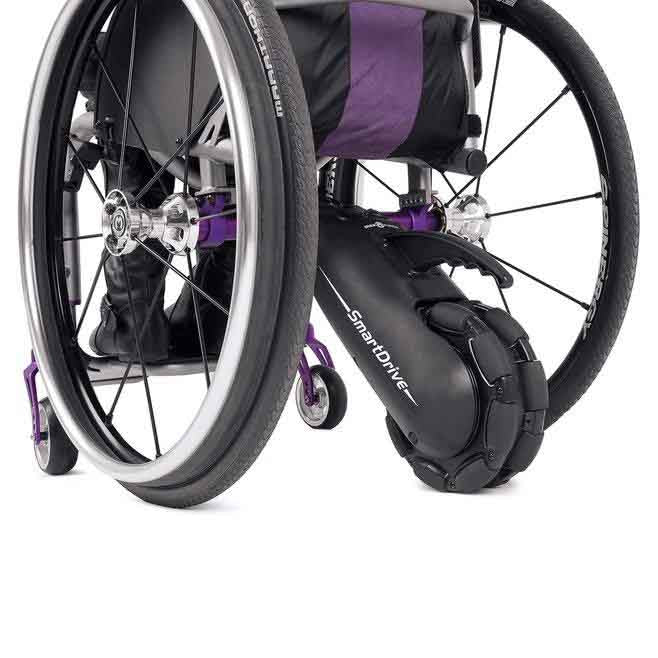

SmartDrive Specifications
Dimensions |
Length: 15.3” (389 mm) Width: 5.7” (141 mm) Height: 9.5” (242 mm)
|
Product weight |
12.5 lbs (5.7 kg) Drive Unit |
User weight |
30 to 331 lbs (14 to 150 kg) |
Driving range* |
Up to 12.3 mi (19.8 km) |
Motor power |
250 W Brushless DC |
Maximum speed |
5.5 mph (8.8 km/h) |
Operating temp |
-13°F to 122°F (-25°C to 50°C) |
Chair type compatibility
|
Rigid, Folding, Tilt-In Space, One-Arm Drive and others |
Drive wheel diameter |
22”, 24”, 25”, 26” (501, 540, 559, 590 mm) |
Warranty |
1-Year Limited Warranty (Against manufacturing defects) |
Bluetooth LE |
FCC ID QOQBT113 IC ID 5123A-BGTBLE113 |
HCPCS |
E0986 |
*Performance measurements will vary based on user and chair characteristics, driving and battery conditions.
The SmartDrive has been tested and conforms to all applicable requirements of ANSI/RESNA Standards for Wheelchairs - Volume 1 and Volume 2 and EN 12184.
NOTE: A wheelchair’s specifications provided by its manufacturer may be slightly affected by the addition of the SmartDrive.
Please refer to your owner’s manual for more detailed operation and care instructions.
PushTracker E2 Specifications
Dimensions |
1.85” x 2.06” x 0.5” (46.9 x 52.2 x 12.9 mm) |
Operating system |
Wear OS by Google™ |
Phone compatibility |
Android™, iPhone™ |
Nominal operating voltage
|
3.9 V |
Electric charge |
415 mA-h |
Wireless operating band |
Bluetooth / BLE 2.4 GHz (2.402 to 2.480 GHz) WiFi 802.11 b/g/n 2.4 GHz (2.412 to 2.472 GHz) GPS / GLONASS / Beidou 1575 MHz (1.559 to 1.610 GHz) |
Bluetooth |
LE FCC ID 2AP42-WG12026 IC ID 24006-WG12026 |
Water resistance |
5 ATM (Swim-ready, up to 50 m) |
Band width |
0.87” (22 mm) |
Band material |
Silicone (interchangeable) - Latex-Free and completely Biocompatible |
Case material |
Polycarbonate |
Display |
AMOLED (400 x 400 pixel) |
*All figures shown are for illustration purposes only and actual products may vary. Wear OS by Google, iPhone, Android, Bluetooth and Google Play are trademarks or registered trademarks of their respective owners.
