JAY J3 Posterior Deep Contour Back

Sunrise MedicalSKU: 75/J3PDCLTM14SH

Back Support Level: Lower Thoracic (LT)
Back Height (Refer Product Features for Dimension): Medium (M)
Back Width: 14"

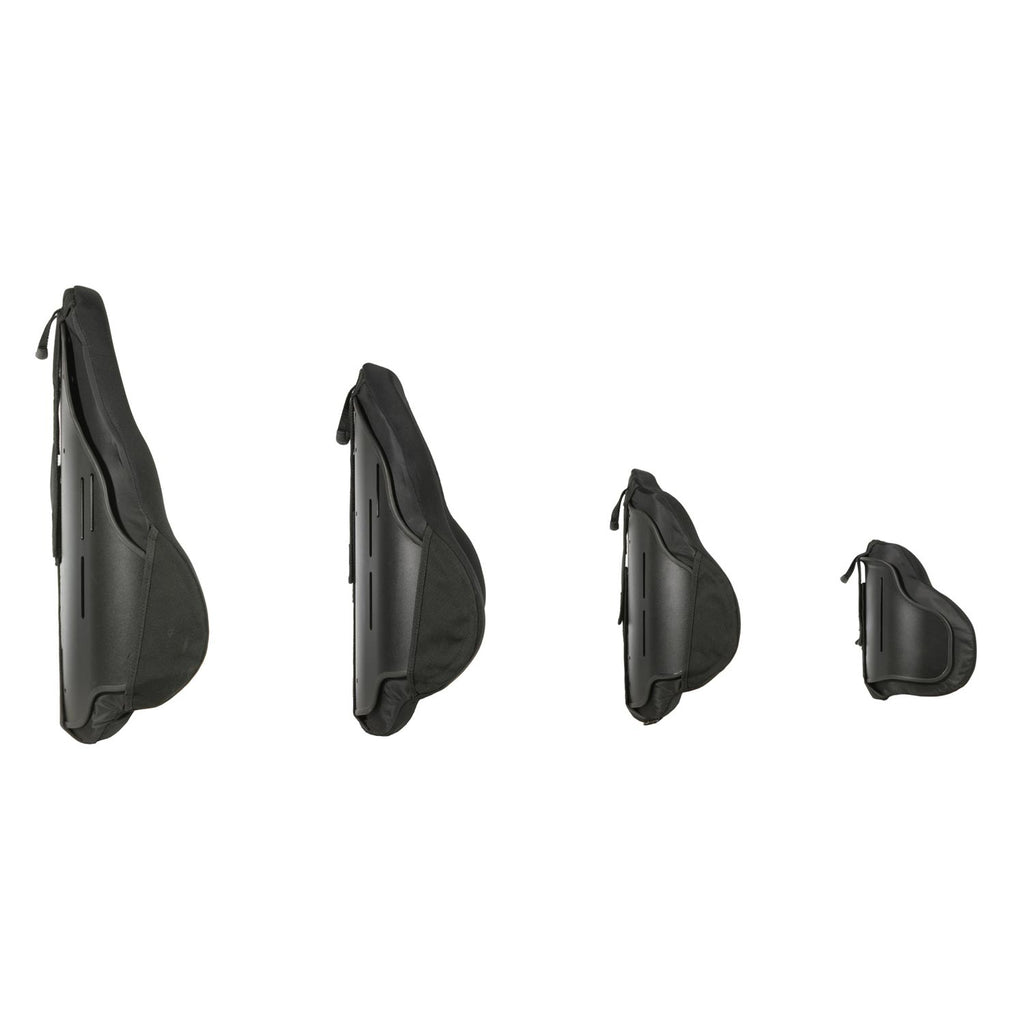

Jay J3 posterior deep contour back offers a multitude of width, height, and contour depth back shells to fit the back to the client. The J3 wheelchair back is the most versatile wheelchair back for with different support height levels. Each back is lightweight and adjustable, with numerous hardware choices allowing for easy installation. Posterior deep contour has 6" of lateral pelvic support which provide posterior and lateral stability to clients with varying postures and functional needs.
Four support height levels to provide support for clients with wide ranges of torso heights and levels of injury.
Back Height / Size Short (S) Medium (M) Tall (T)
Lower Thoracic (TL)
6.5" 8.0" 9.5"
Lower Thoracic (TL) X: 5"
Y: 5"
X: 5.2"
Y: 5"

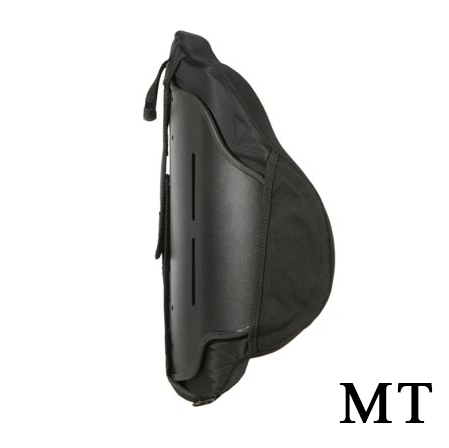

Mid Thoracic (MT)

12.0" 13.5" 15.0"
Mid Thoracic (MT) X: 5.5"
Y: 5"
X: 6.5"
Y: 5"

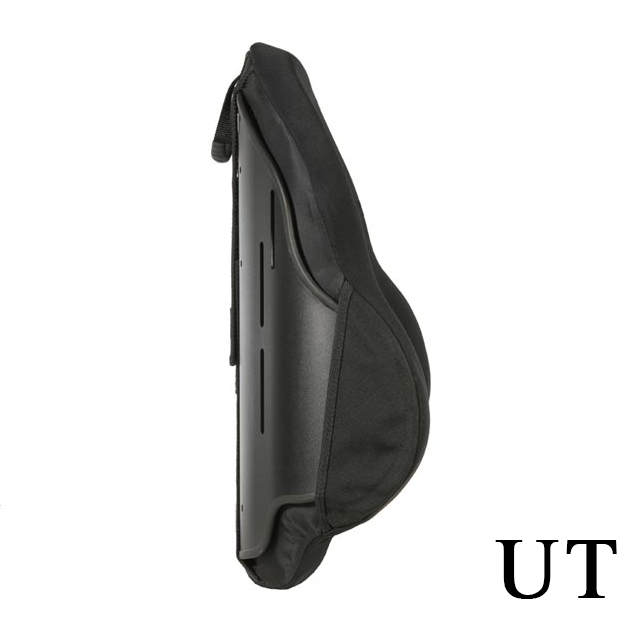

Upper Thoracic (UT)

16.5" 18.0" 19.5"
Upper Thoracic (UT) X: 6.5"
Y: 5"

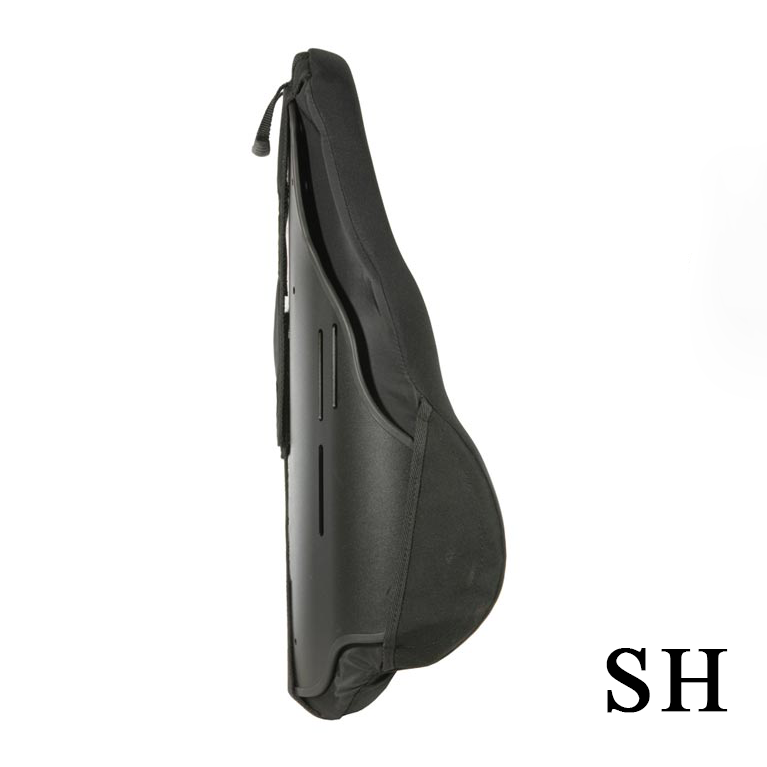

Shoulder Height (SH)

21.0" 22.5" 24.0"
Shoulder Height (SH) X: 6.5"
Y: 5"
    Product Weight 1.4 lbs. and up (without hardware)
    Width Range 14" to 20"
    Height Lower thoracic: 6.5", 8", 9.5"
    Mid thoracic: 12", 13.5", 15"
    Upper thoracic: 16.5", 18", 19.5"
    Shoulder height: 21", 22.5", 24"
    Hardware Angle Adjustability 20°
    Hardware Width Adjustability +2"
    Frame Tubing Compatibility 3/4" to 1 1/8"
    Lateral Contour Support 6"
    Foam Insert 1½" soft foam
    Weight Capacity 300 lbs. / 136kg (12" to 20" widths)
