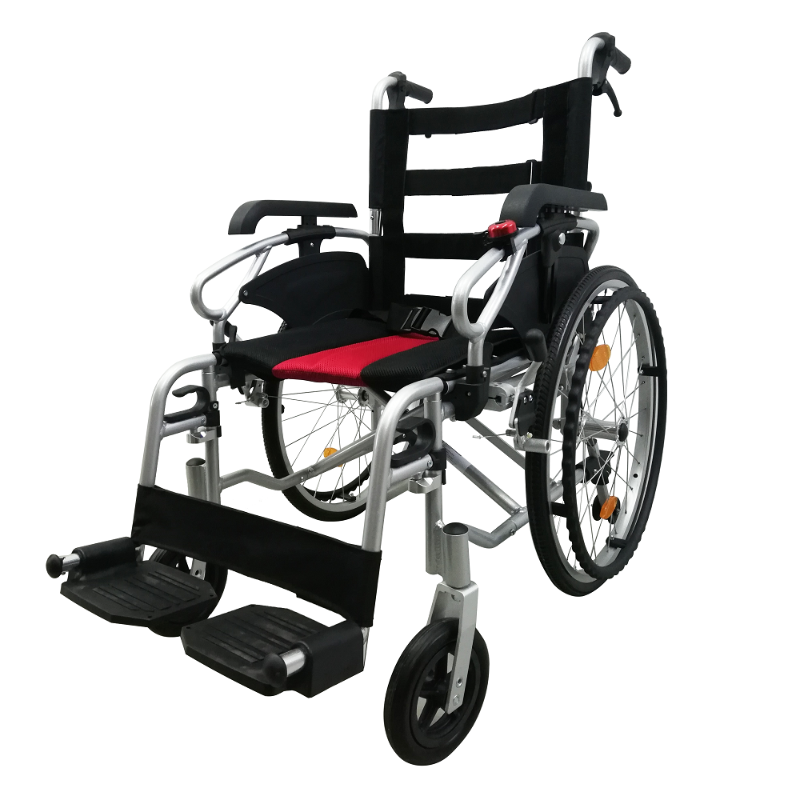

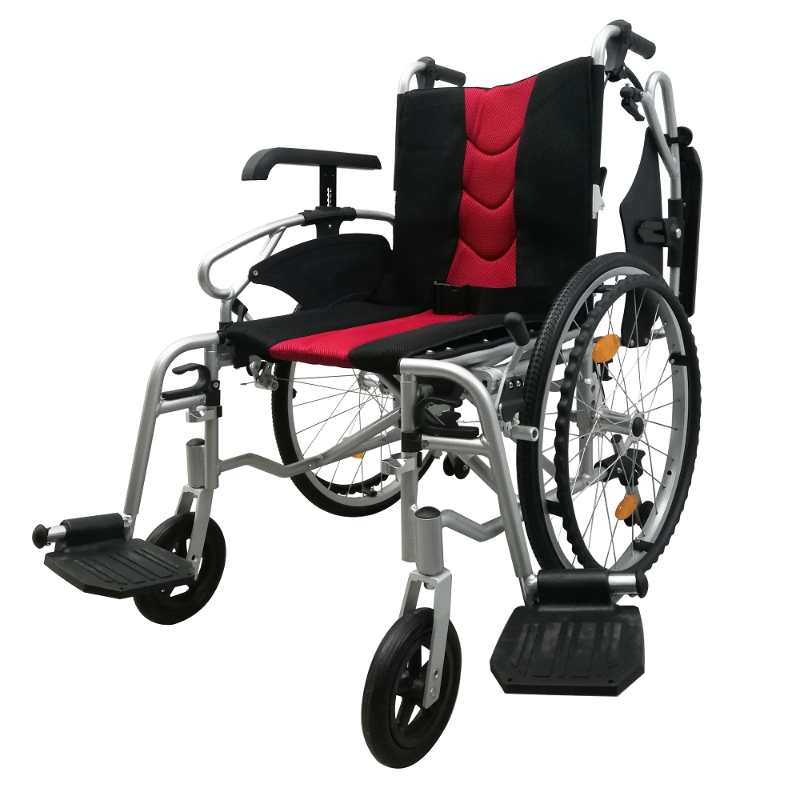

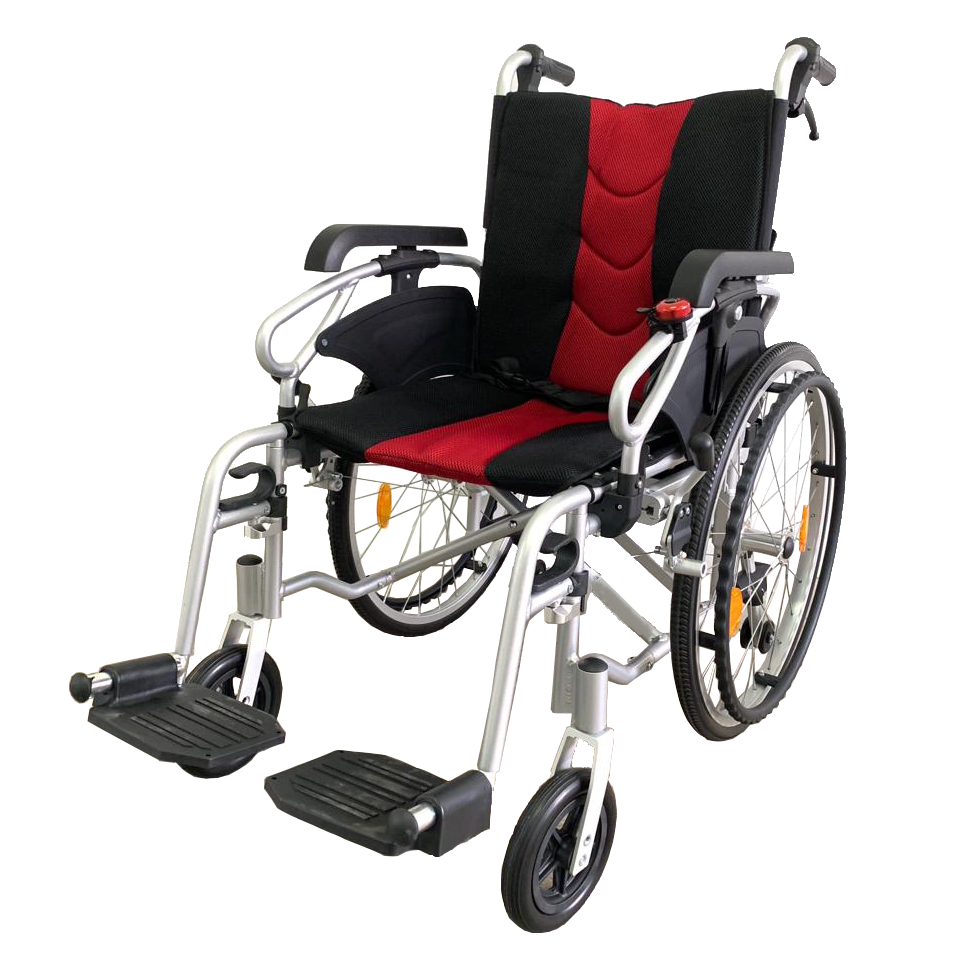

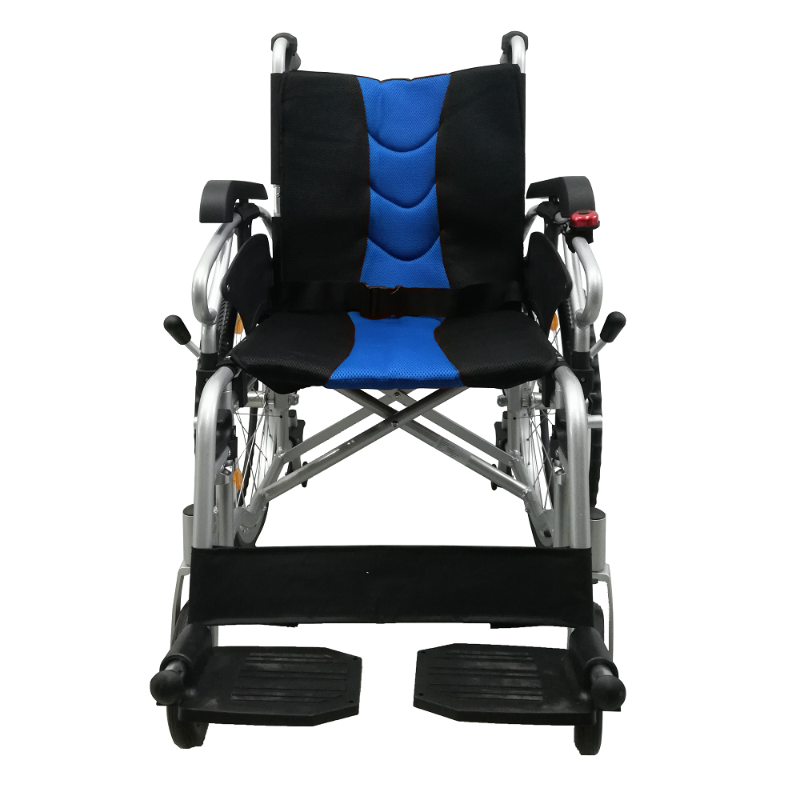

Astro Detachable Wheelchair with Height Adjustable Armrest
- Aluminium frame
- Double crossbar frame provides additional strength
- Locking assisted brake at push handle which is designed to give caregivers more braking control when travelling along steep terrain
- Fold down backrest for easy storage & transportation
- Height adjustable flip-up and detachable armrest for easy lateral transfer
- Swing away & detachable footrest
- Footrests come with calf strap to prevent the foot from slipping backward
- Holding loop frame on armrest provides better accessibility
- Tension back for better seating posture
- Height adjustable anti-tippers to prevent from falling backward
- Rear wheels come with light reflector
- Comes with safety belt

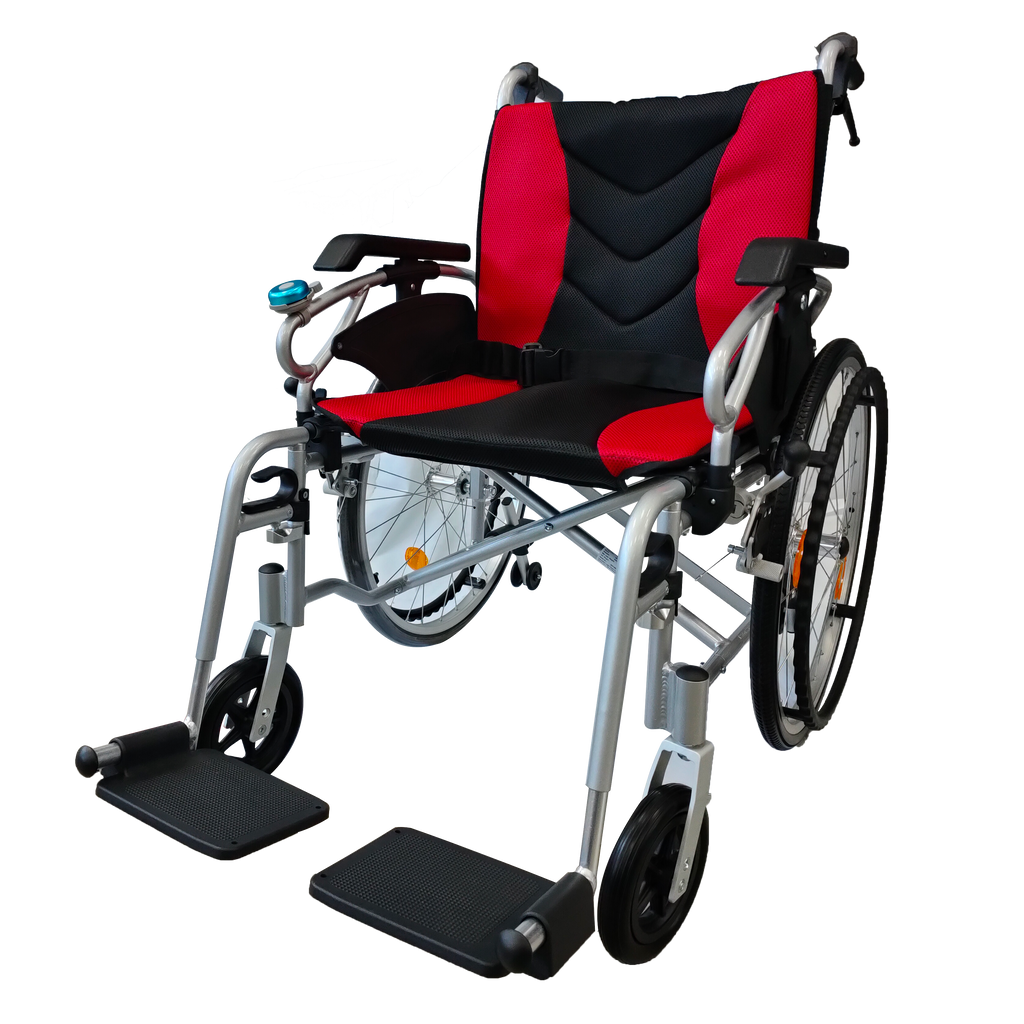

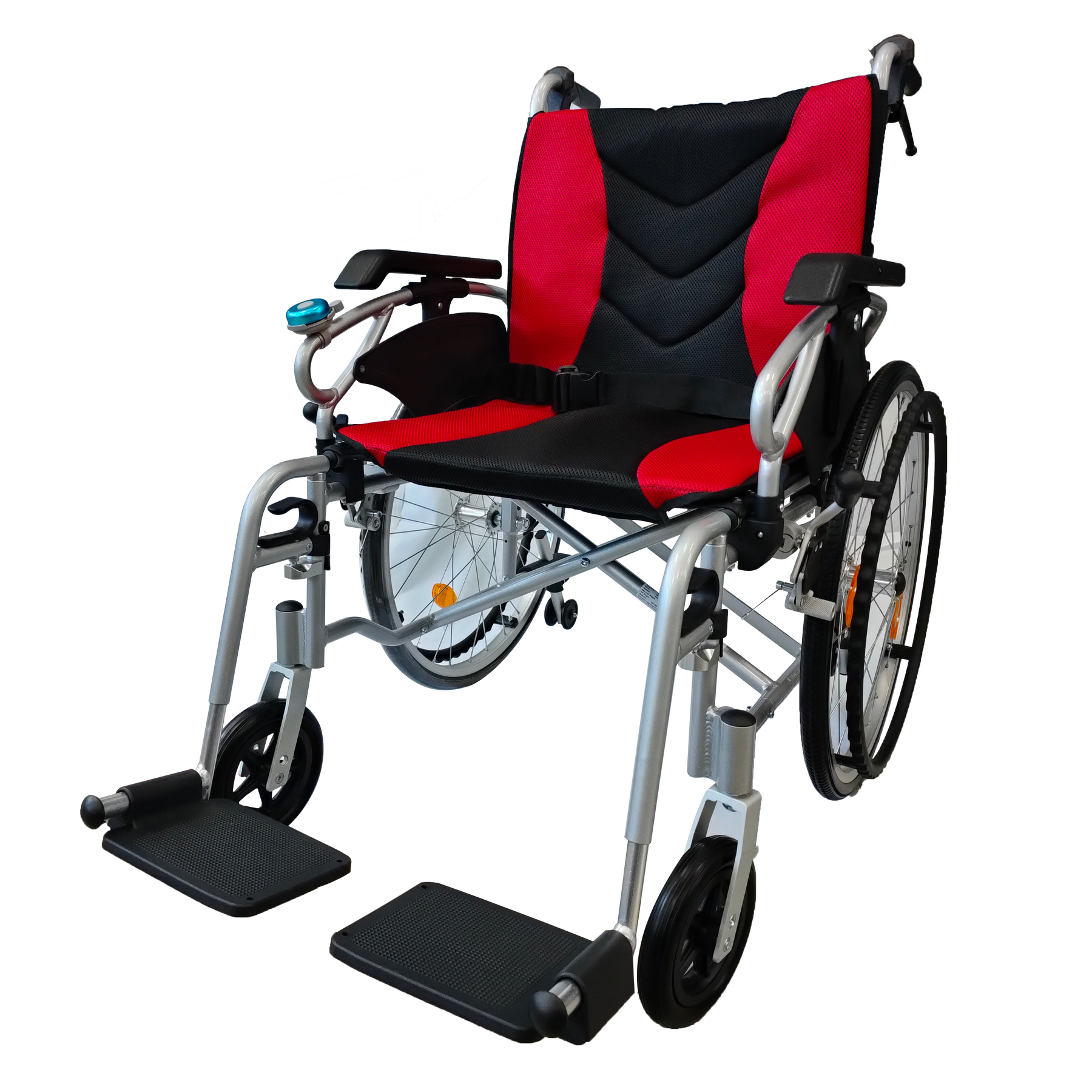

- Upholstery colour: Blue for 16”, Red for 18”, Red for 20”
Optional Accessories

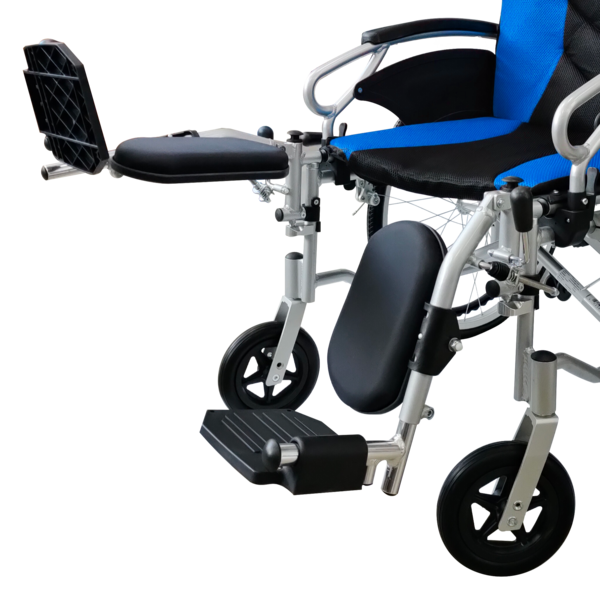

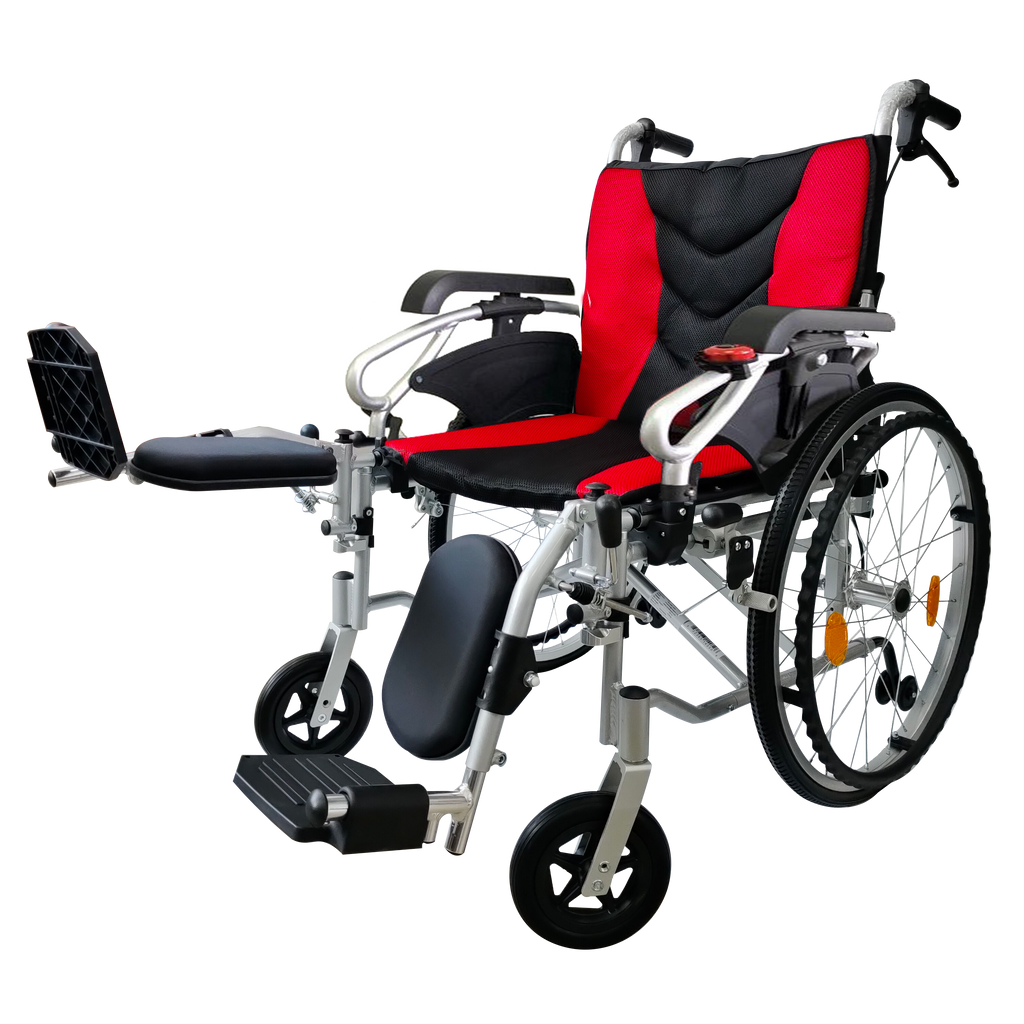

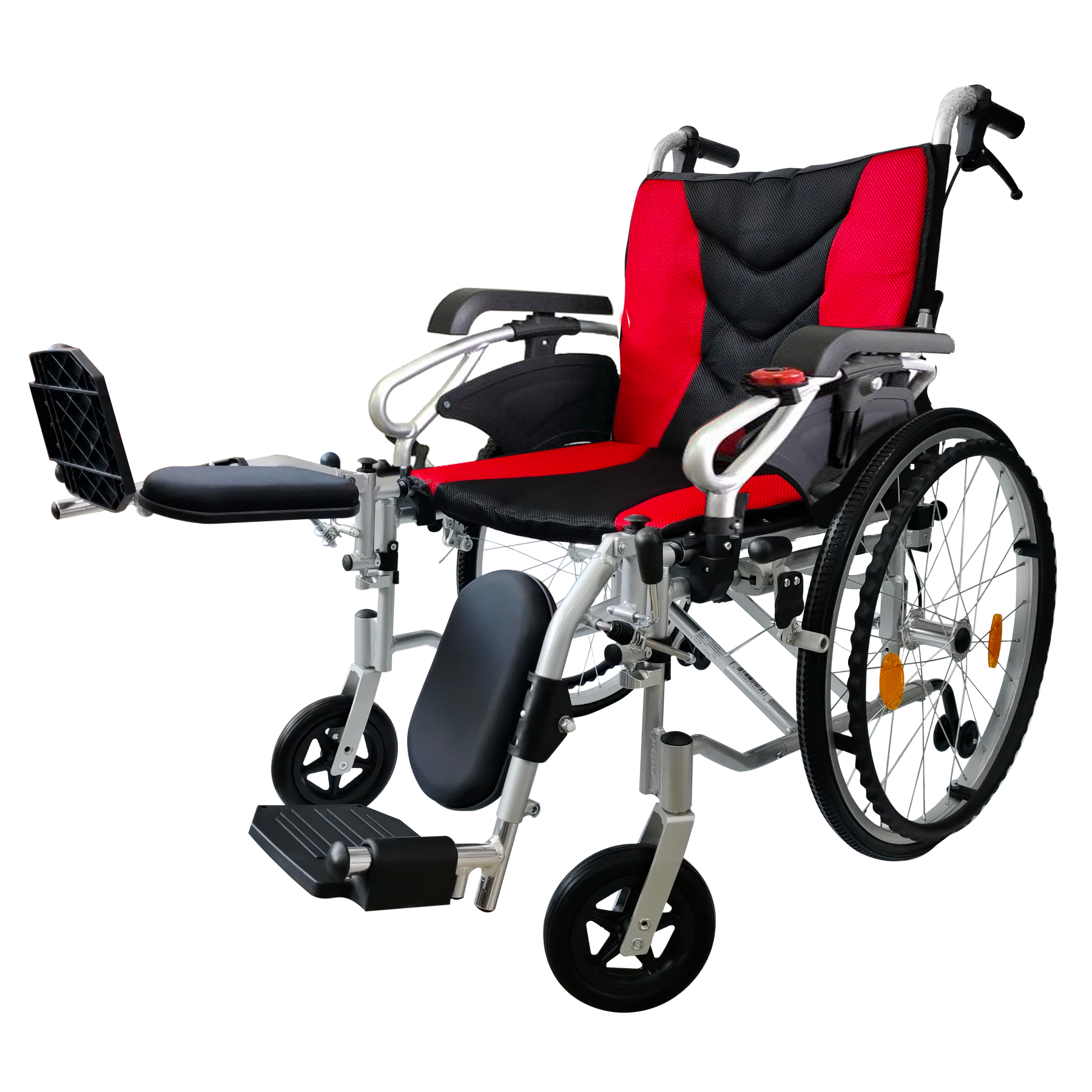

Elevating footrests help to raise the legs to a higher position. It helps to reduce edema of lower extremities.
Specifications
|
Seat Width: |
16” / 18” / 20” (40.6cm / 45.7cm / 50.8cm) |
|
Seat Depth: |
16” (40.6cm) |
|
Front Seat Height: |
18.5” (47cm) |
|
Rear Seat Height: |
18” (45.7cm) |
|
Back Height: |
17.5” (44.5cm) |
|
Rear Wheel: |
22” x 1.375” (30.5cm x 3.5cm) |
|
Front Wheel: |
7” (17.8cm) |
|
Seat to Footplate: |
14.5” – 18” (36.8cm – 45.7cm) |
|
Seat to Armrest Height: |
9.5” – 12” (24.1 – 30.5cm) |
|
Overall Width: |
23.5” / 25.5” / 27.5” (59.7cm / 64.8cm / 69.9cm) |
|
Overall Depth: |
42” (106.7cm) |
|
Overall Height: |
37.5” (95.3cm) |
|

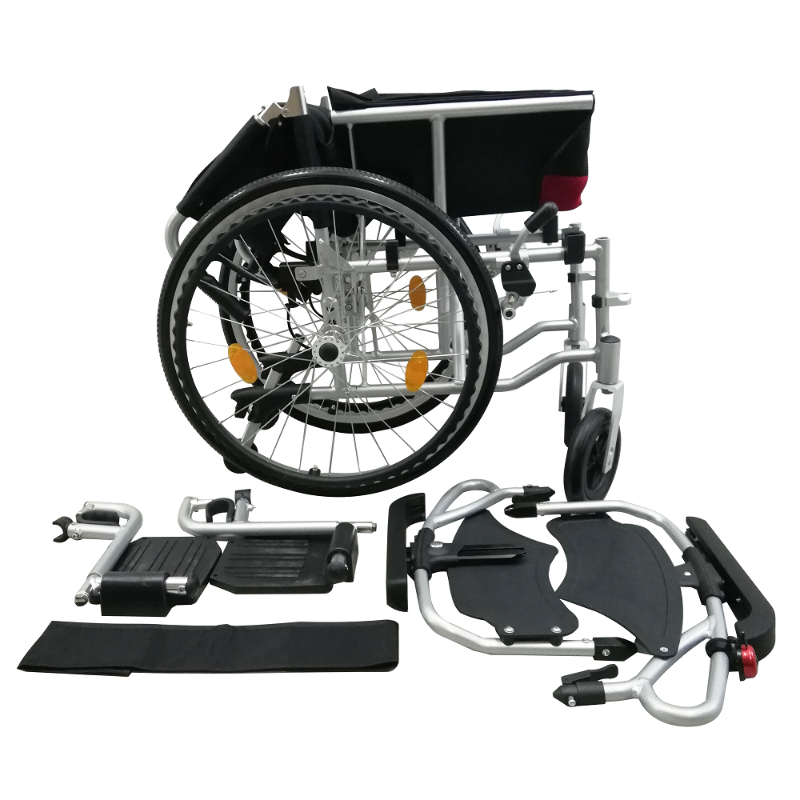

Folded Dimension (without legrest) |
W16” x D31” x H27.5” (W40.6cm x D78.7cm x H69.9cm) |
|
Total Weight: (with legrest) |
15.2kg / 15.3kg / 15.6kg |
|
Weight of Legrest (pair): |
1.3kg |
|
Weight Capacity: |
120kg / 120kg / 136kg |
|
Warranty: |
12 months on frame against manufacturing defects. Wear & tear not included |
|
Country of Origin: |
China |
