DNR Wheels

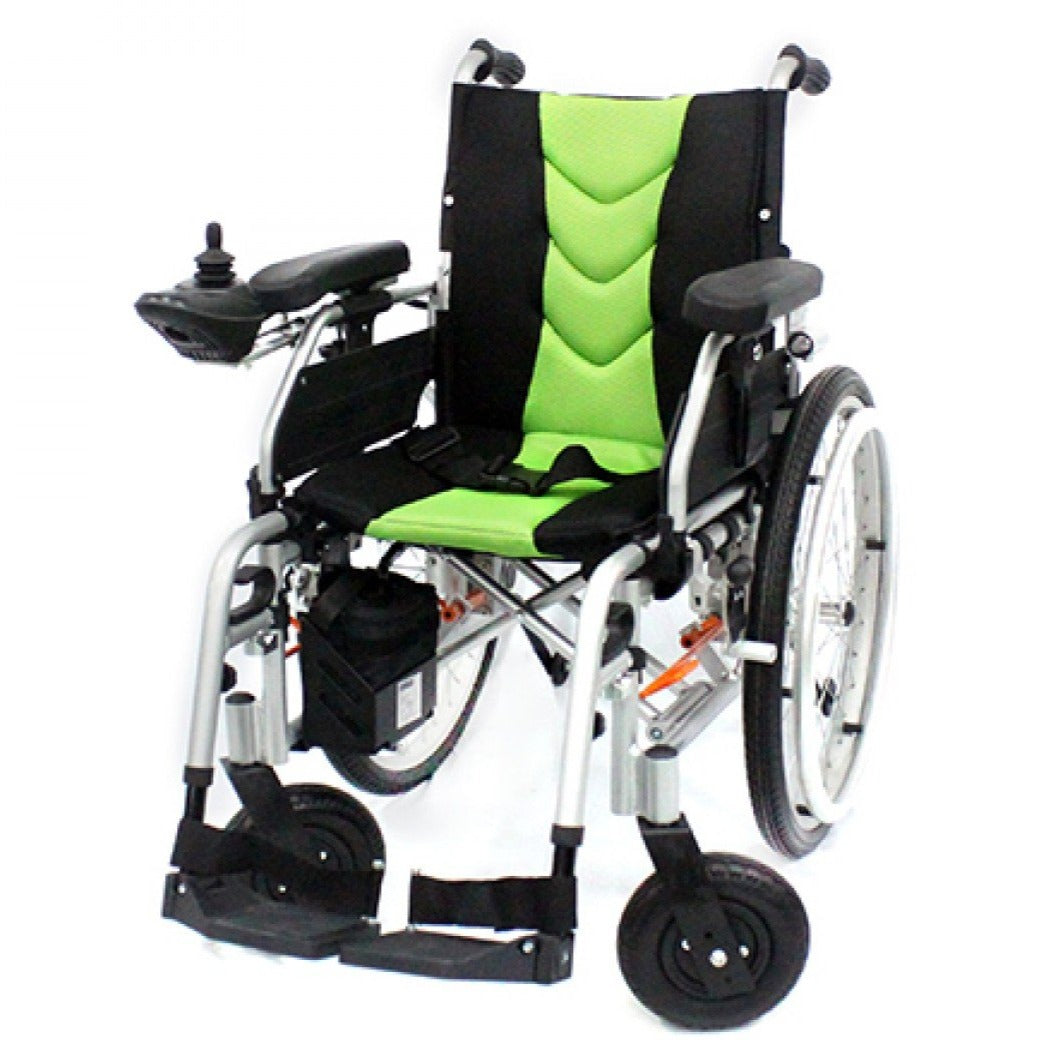

Cruz Motorised Wheelchair
Battery Options:20Ah
Seat Width:16"
Footrests Type:Normal Footrests
- Lightweight aluminum frame
- User can easily switch between manual mode & motor operation mode by adjusting the lever below the seat
Manual mode for user to propel the wheelchair or for caregiver to push the wheelchair - Double crossbar frame enhances durability & stability

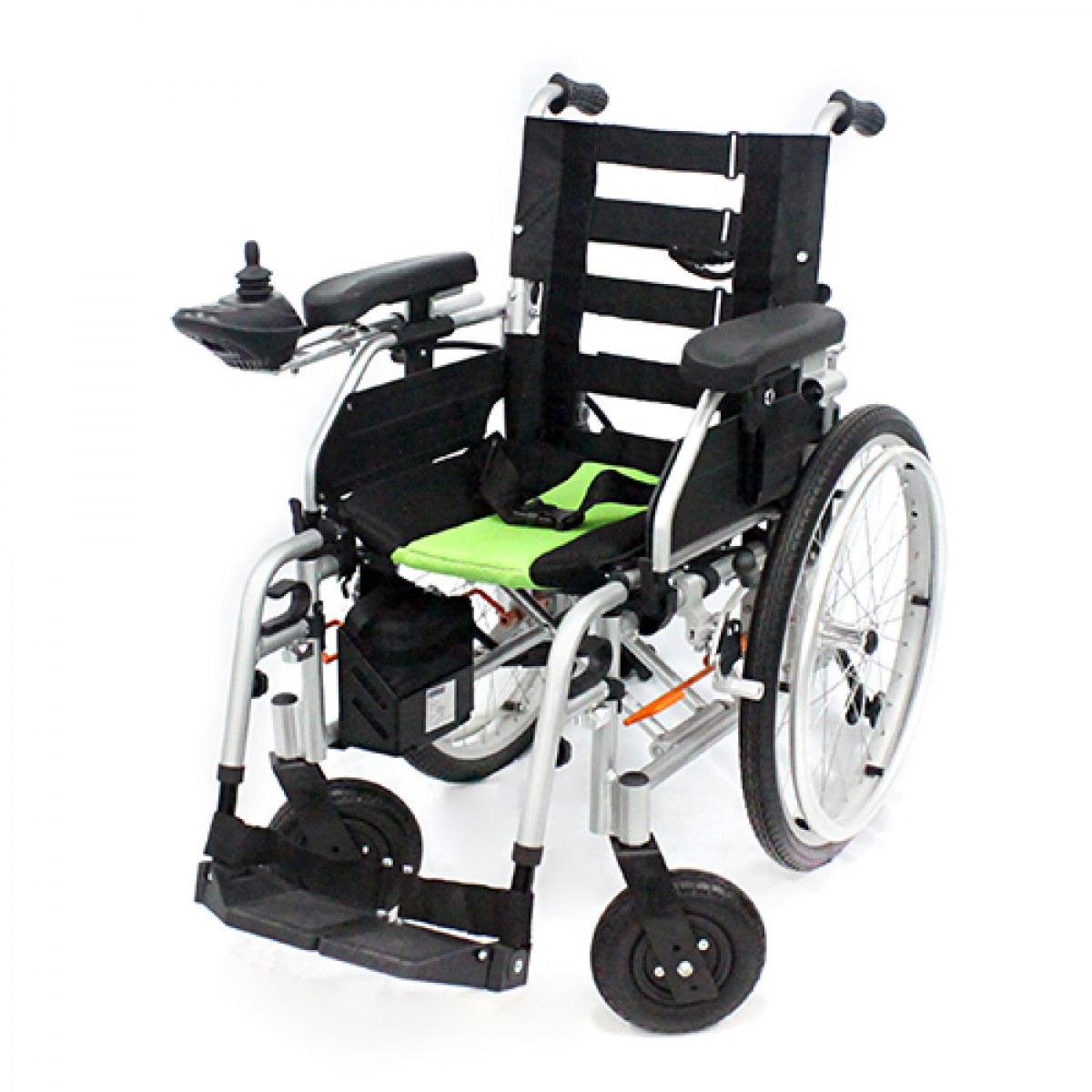

- Tension Back for better seating posture
- Contoured armrests
- Height adjustable armrests to position user’s arm at ideal position. It also helps to prevent shoulders or neck pain.
- Flip back armrests for easy side transfer from bed to chair, chair to sofa, etc.

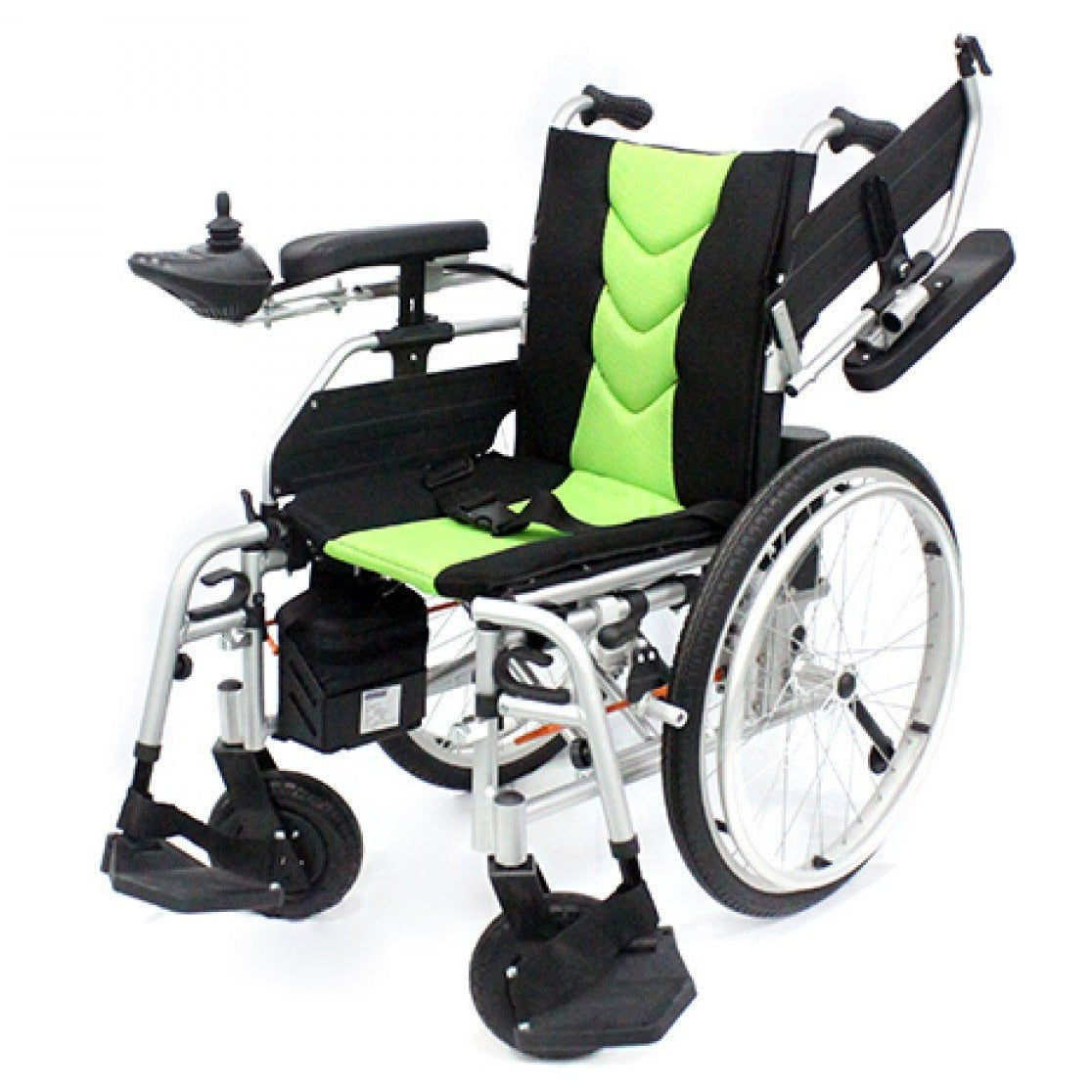

- Detachable legrests for easy side transfer
- Legrests come with heel strap to prevent the foot from slipping backwards
- Angle adjustable footplate
- Comes with safety belt
- Comes with anti-tipper to prevent the chair from tipping backward
- Stabiliser bar at the back of wheelchair to enhance rigidity

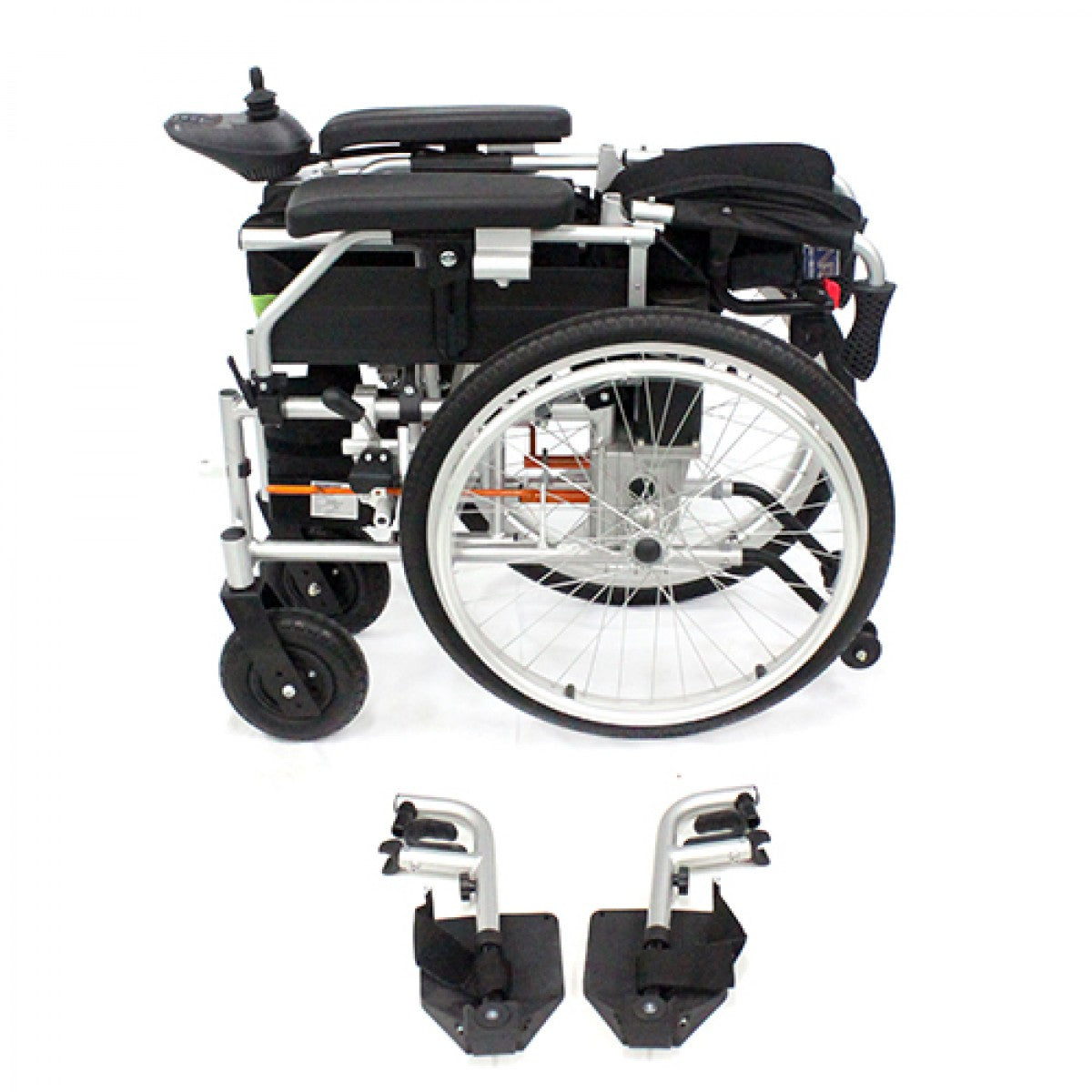

- Half folding backrest for easy storage & transportation
- Easily folded without removing the battery
- Comes with a battery holder for stable performance

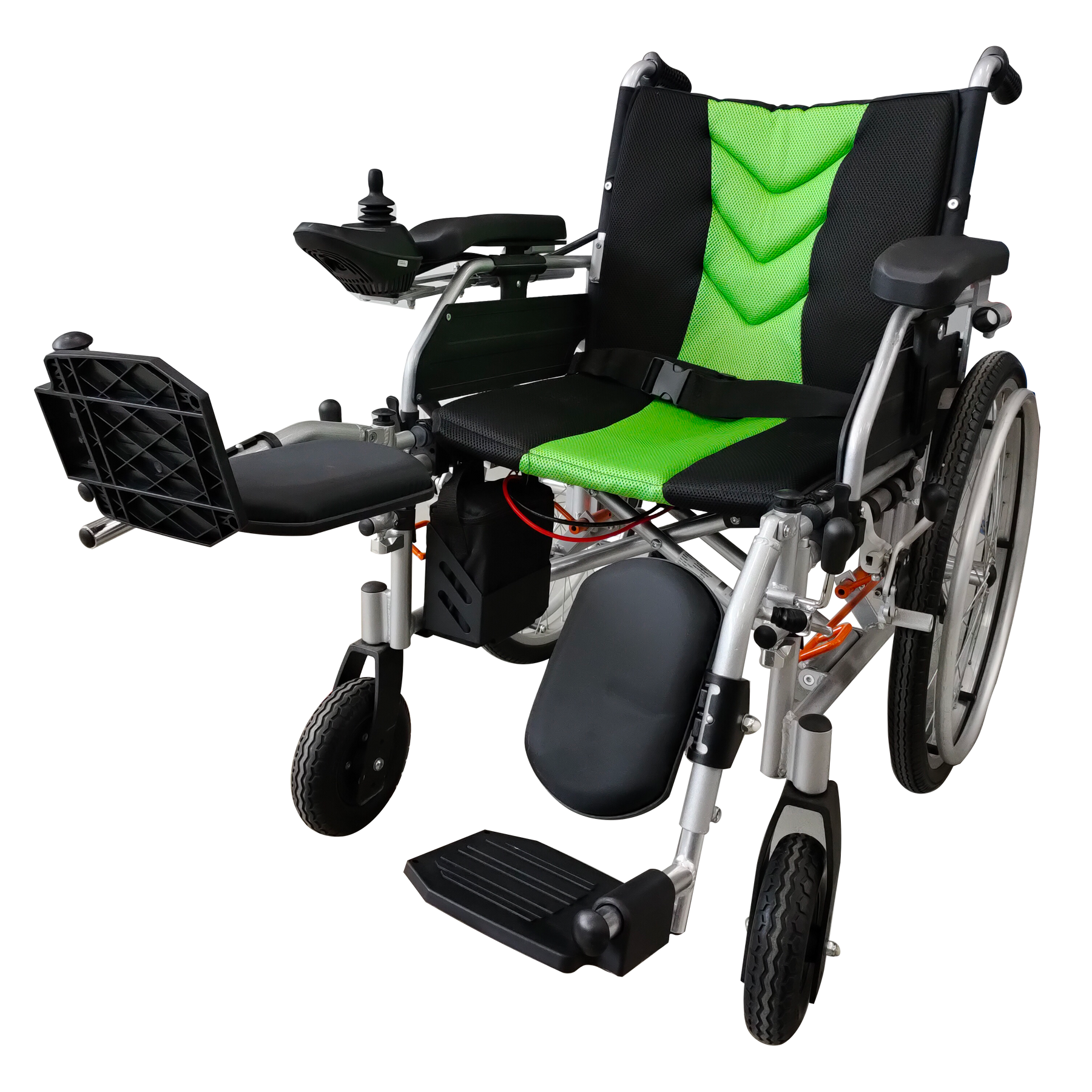

- Elevating footrests help to raise the legs to a higher position. It helps to reduce edema of lower extremities.
Specification
|
Seat Width: |
16" / 18” / 20" |
|
Seat Depth: |
16" |
|
Front Seat Height: |
19.5" |
|
Rear Seat Height: |
18.5" |
|
Back Height: |
17" |
|
Rear Wheel: |
24" x 1-3/4" |
|
Front Wheel: |
8" x 2" |
|
Overall Width: |
24" / 26” / 28" |
|
Overall Depth: |
42" |
|
Overall Height: |
36" |
|
Seat to Arm Rest Height: |
9" - 12" |
|
Weight: |
36kg (without battery) |
|
Weight Capacity: |
136kg (16”/18”) |
|
Warranty: |
12 months for frame, motor, controller & battery. Against manufacturing defects. |
|
Battery Size & Weight: |
20AH (2.5kg) / 30AH (3.45kg) |
|
Range |
25km for 20AH battery |
|
Charger |
4A |
|
Motor Size |
24V 250W |
|
Charging time: |
6-8 hours (daily usage) |
|
Brake |
Electromagnetic Brake 3N, Attendant |
|
Climbing Angle |
8 Degree |
|
Maximum Speed |
6 km/h
|
|
Turning Radius |
33” |
