DNR WHEELS PTE LTD
DNR 4 Wheels Arrow Scooter
Features
· Battery indicator panel

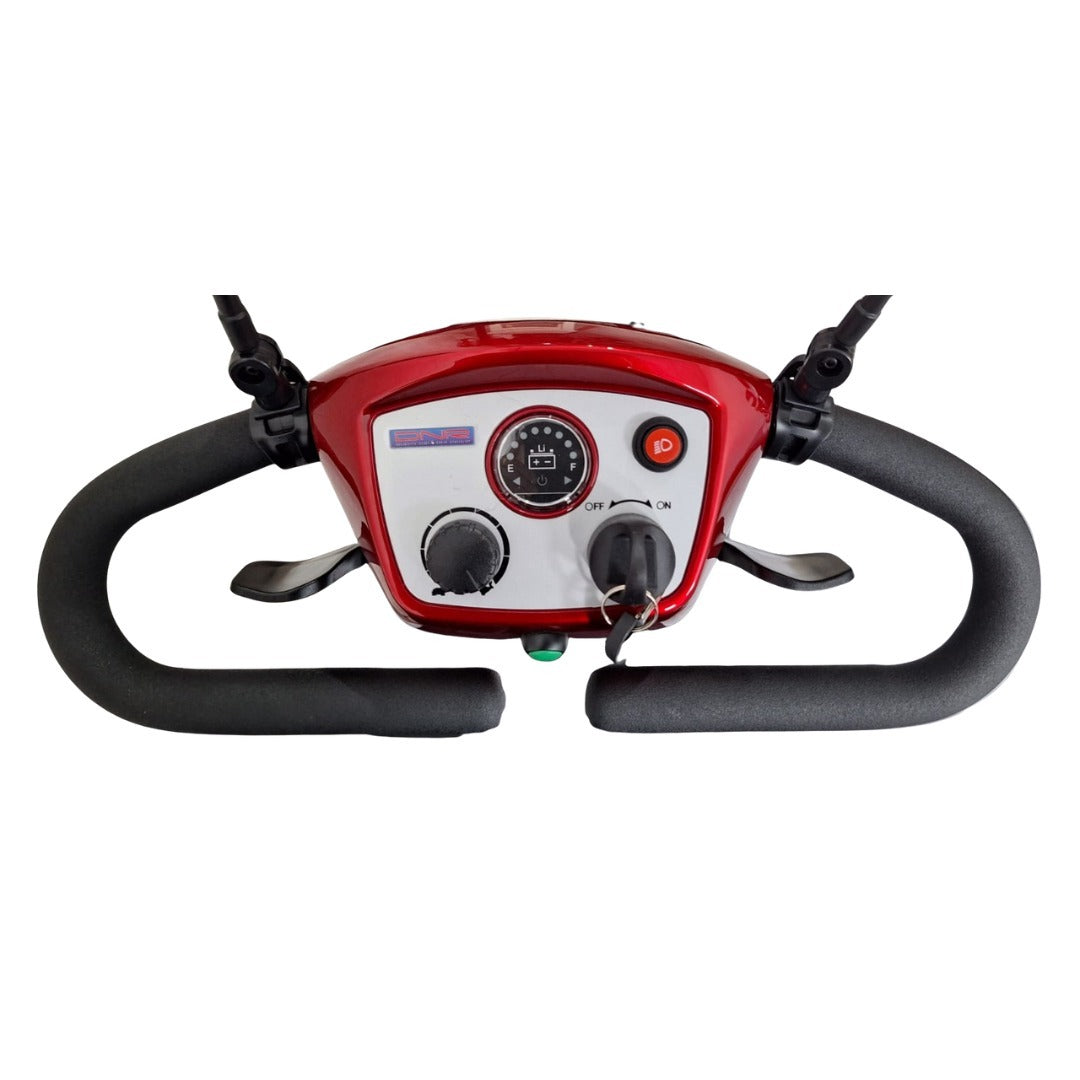

· Easy-to-read control panel
· Built-in front & back suspension
· Comfortable 17.5” x 14” stadium-style seat with 360° swivel
· Ergonomic footrest design with spacious foot room
· 8" low-profile black tyres on high-strength rim
· ABS moulded basket
· Width-adjustable armrest
· Charging & USB port at the battery box

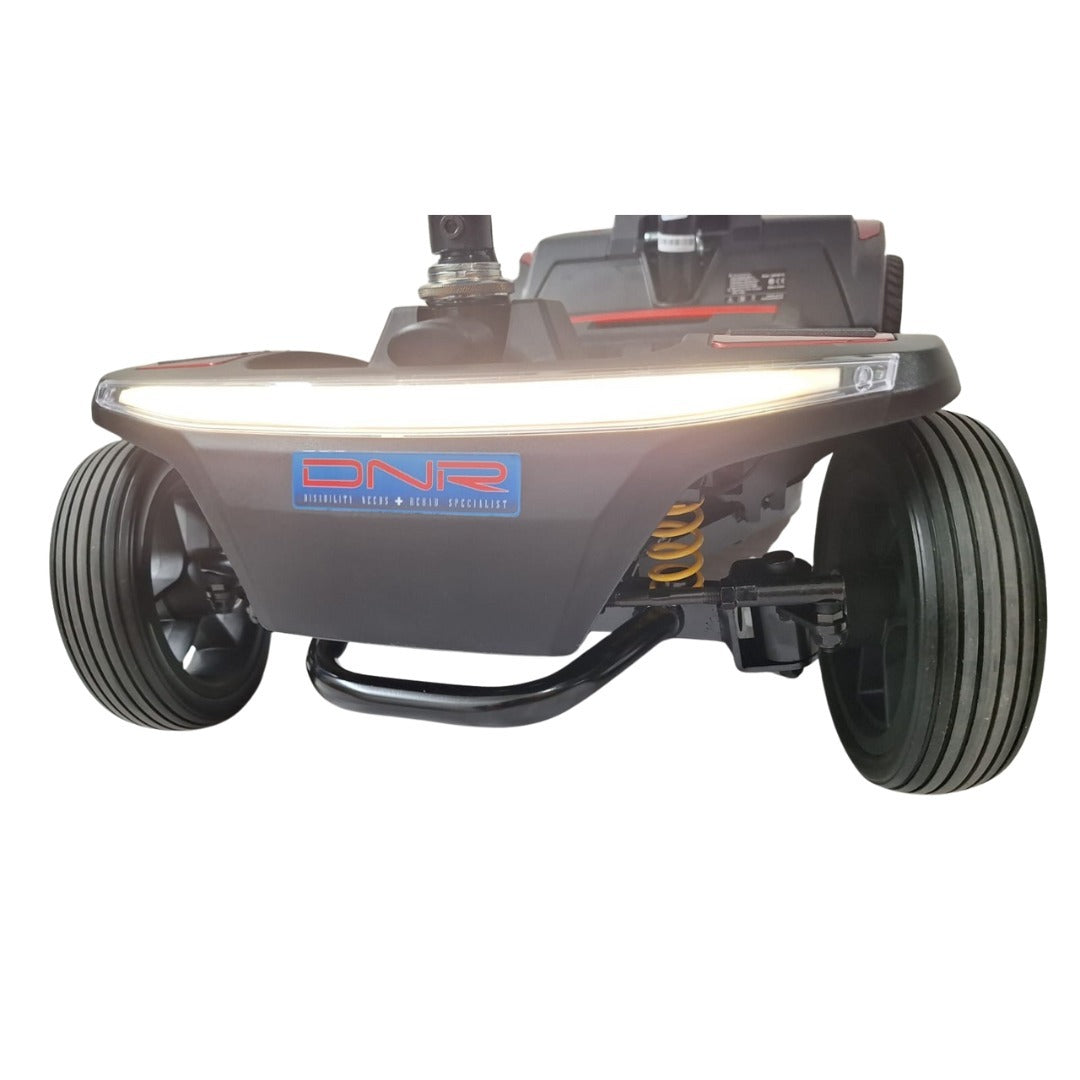

· Front & rear LED lights
· Rear view mirrors
· 20AH Lithium battery (range: 20km)
· Reverse sound
· Comes with a safety belt
Specifications
|
Maximum Weight Capacity: |
136kg (300 lbs) |
|
Drive Wheels: |
Rear |
|
Maximum Speed: |
Up to 6km/h (3.7mph) |
|
Operating Range: |
20km (12.4miles) |
|
Ground Clearance to Transaxle/Motor: |
1.18" (3cm) |
|
Turning Radius: |
38" (96.5cm) |
|
Climbing Angle: |
8° |
|
Battery Type: |
Lithium 24V 20AH |
|
Freewheel Mode: |
Yes |
|
Electronic Speed Control: |
Yes |
|
Electro-Mechanical Brakes: |
Yes |
|
Charger: |
4A |
|
Controller: |
45Amp |
Dimension
|
Overall Length: |
43.1" (109.5cm) |
|
Overall Width: |
20.7" (52.5cm) |
|
Number of Seat Height Positions: |
4 |
|
Height of Increments: |
1" |
Tyres (Solid, Low Profile)
|
Front: |
8" |
|
Rear: |
8" |
|
Rear anti-tippers: |
2" |
Standard Seating (Stadium-Style)
|
Width x Depth: |
17.5" x 14" (44.5cm x 35.6cm) |
|
Seat Back Height |
15" (38.1cm) |
|
Floor to Seat Height: |
20.5" – 23.5” (52.1 – 59.7cm) |
|
Floor Board to Seat Height: |
15" - 18” (38 – 46cm) |
|
Floor Board to Seat Height (default): |
17” (43.2cm) |
|
Weight of Battery: |
3.9kg |
|
Weight of Seat: |
7.65kg |
|
Weight of Base: |
27.4kg |
|
Total Weight of Scooter: |
38.95kg |
|
Standard Colour: |
Red |
|
Warranty Period: |
12 months frame, motor, controller & battery. Wear & tear not included. |
