EasyStand
EasyStand StrapStand PK301

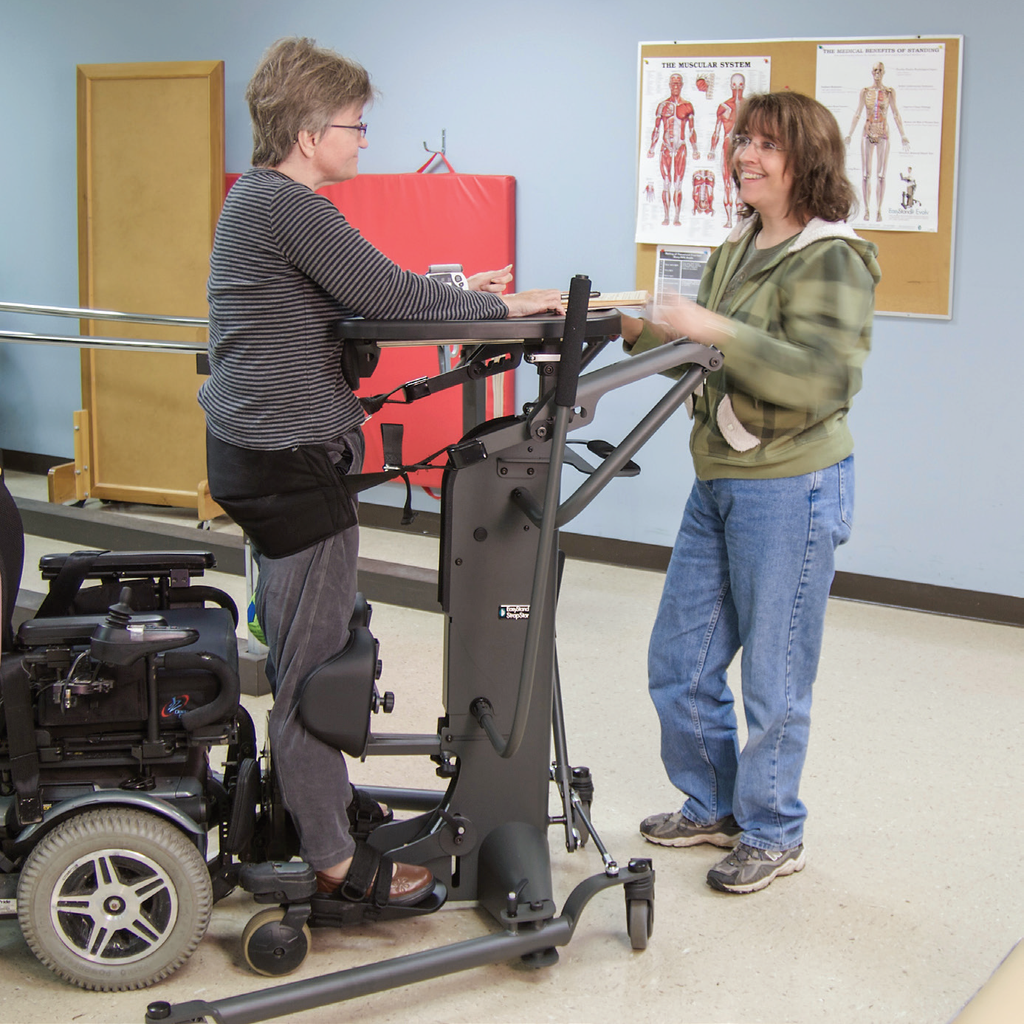

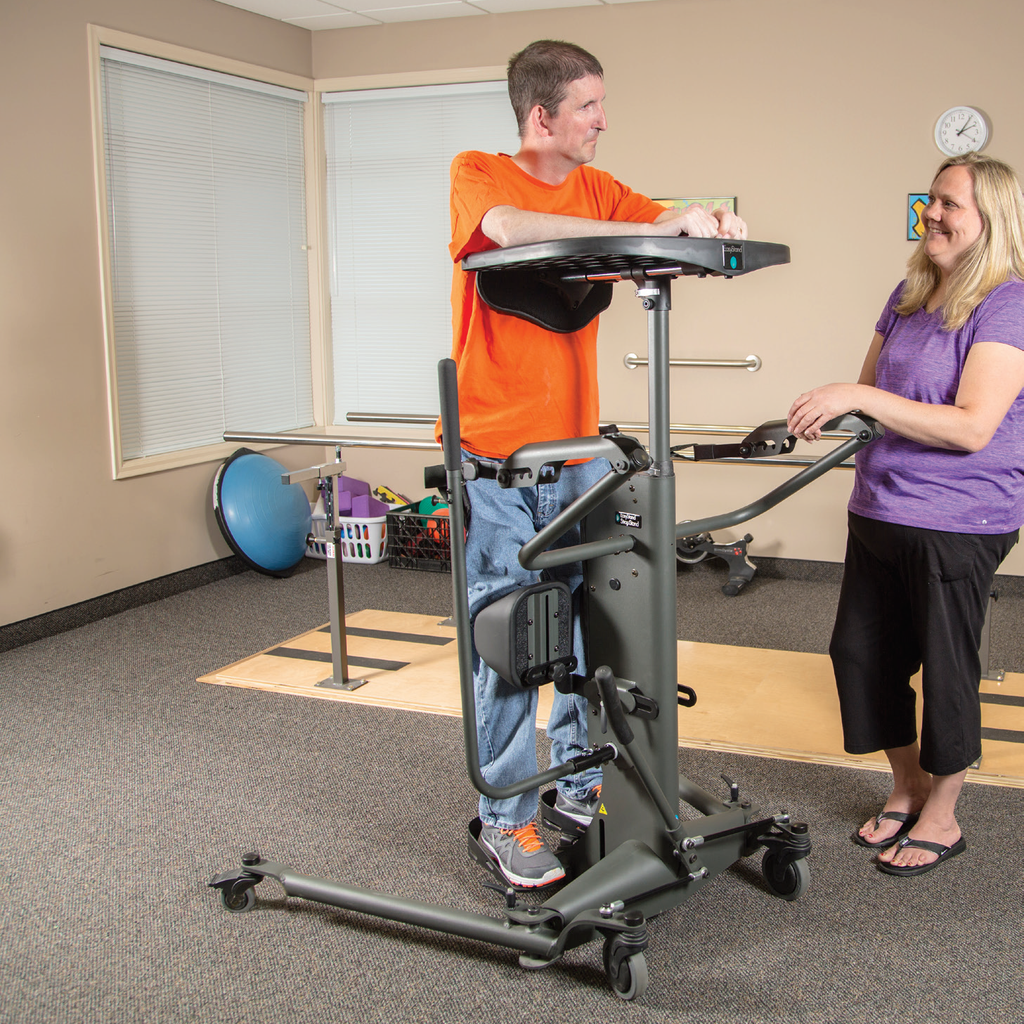

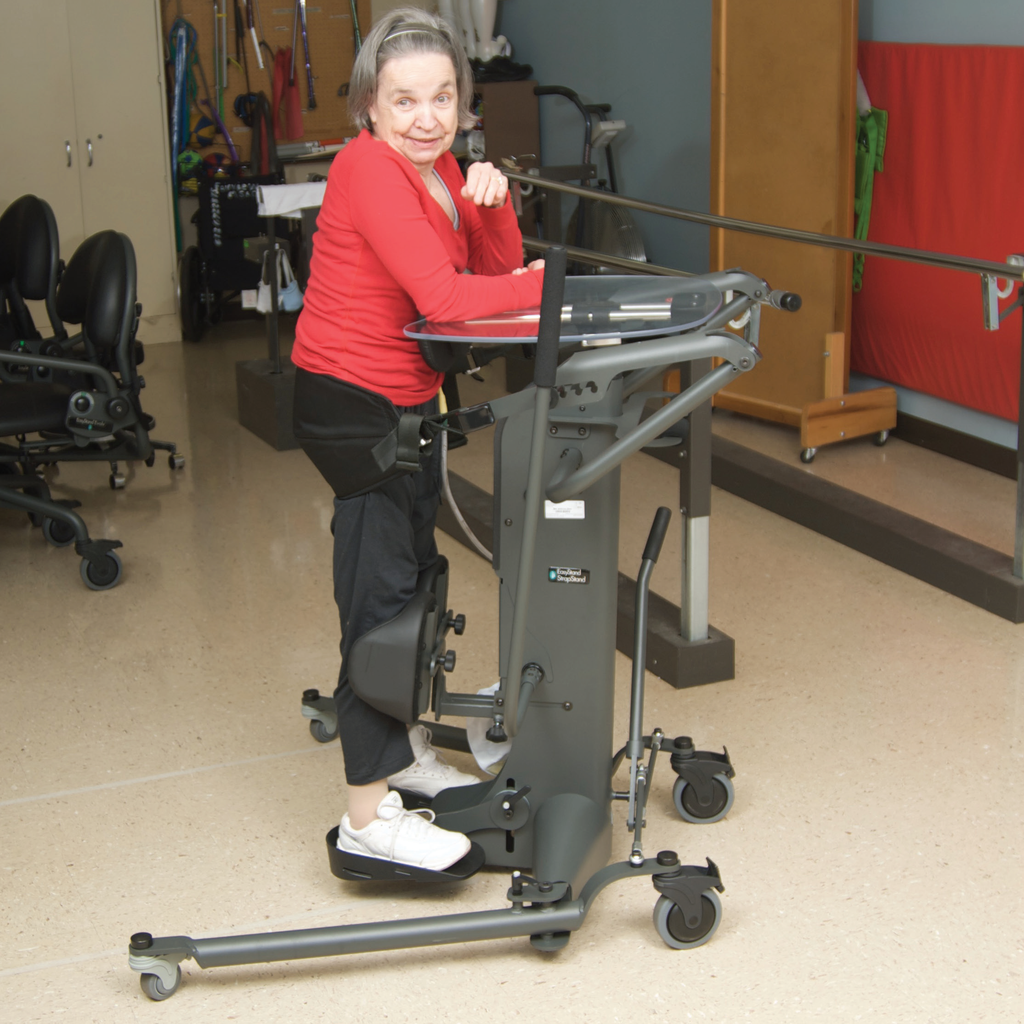

The StrapStand lifts you directly from your wheelchair, bed, or other seated surface into the standing position.
Benefits of the EasyStand StrapStand include:
- No-transfer
- Full upright, over-center stretch possible while standing
- Familiarity in long-term care – similar to a patient lift
- Ease of use leads to increased compliance
- Swing-out legs accommodate wide wheelchairs
The difference between the EasyStand StrapStand and other strap-style standers is the lifting design. The lifting arms gently lift you vertically first, then gradually pull you over center, rather than pulling your knees into the knee pad and forcing the sit to stand transition. This greatly reduces pressure on the knees.

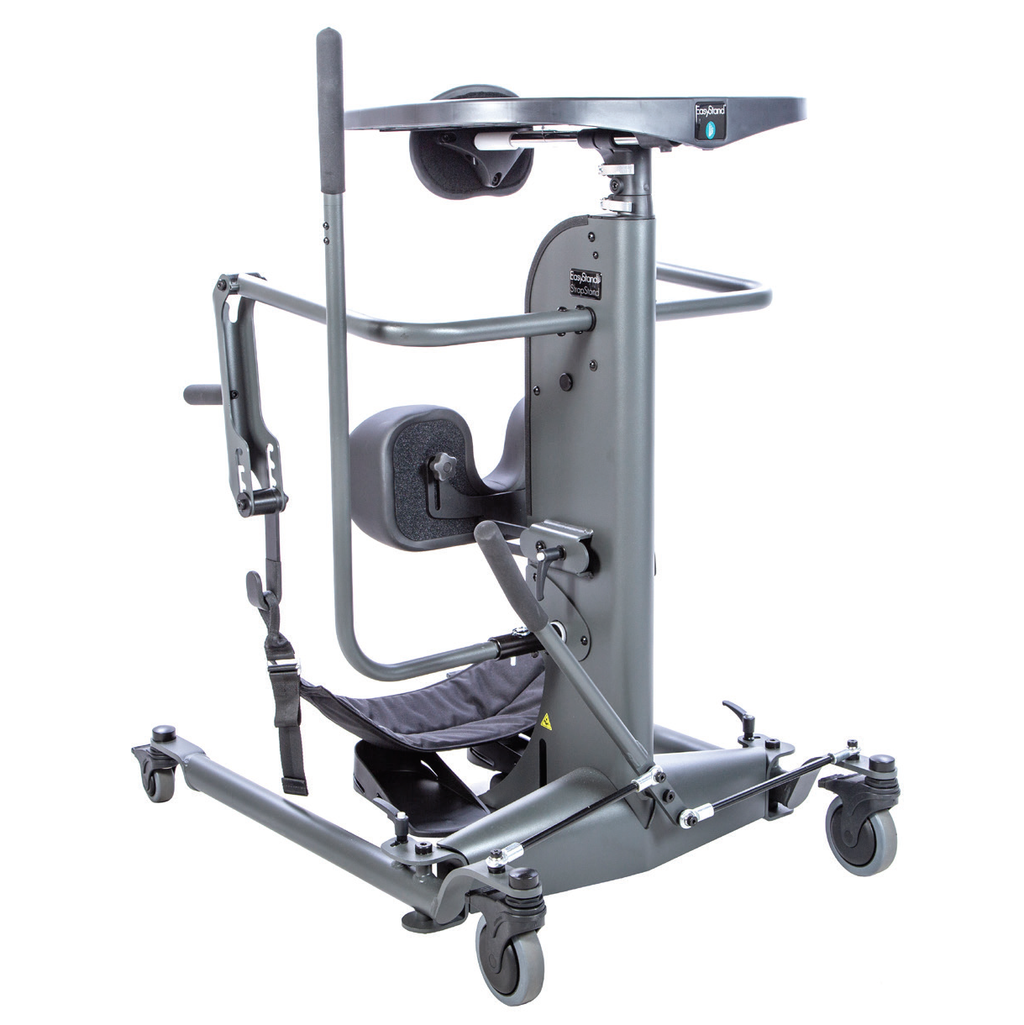

Components
1. Swing Out Legs
2. Adjustable Lifting Strap 12"Wx29"L
3. Black Molded Tray
4. Four Locking Swivel Casters
5. Multi-Adjustable Foot Plate
6. Knee Pad
7. Hydraulic Actuator with Handle
Specifications
|
Height Range |
5′ - 6’5″ (152 - 195cm) |
|
Weight Limit |
350lbs (159kg) |
|
Kneepad Height Range (footplate to top of pad) |
18″ - 21″ (46 - 53cm) |
|
Kneepad Width (center to center) |
9" (23cm) |
|
Kneepad Depth Range (from back of heel) |
6” - 9.5″ (15 - 24cm) |
| Front Pad Depth Range (from back of heel) | 2” - 12.5” (5 - 32cm) |
| Front Pad Height Range (from footplate to center of pad) | 40″ - 56″ (102 - 142cm) |
|
Inside Width / Wheelchair Access |
22.75” (58cm) |
|
Locking Caster Diameter |
3" (8cm) |
|
Standard Footprint |
34” x 28” (86 x 71cm) |
| Adjustable Lifting Strap – Large | 12” x 29” (30 x 74cm) |
|
Range of Adjustable Lifting Straps |
0” - 8” (0 - 20cm) |
|
Tray Size (Molded or Acrylic) |
21″ x 24″ (53 x 61cm) |
|
Swing-out Legs Footprint |
30″W x 38.5″L (76 x 98cm) |
|
Swing-out Legs Inside Access (wheelchair front width up to) |
38" (97cm) |
| Upper Body Support Strap Pad Size | 5.5” x 24” (14 x 61cm) |
| Upper Body Support Strap (adjustment range) | 33” - 70” (84 - 178cm) |
| Multi-Adjustable Footplates (height from floor) | 1″ - 5″ (2.5 - 13cm) |
|
Weight of Basic Unit |
125lbs (57kg) |
| Manufactured | USA |
| Warranty | 5 years steel frame; Hydraulic Actuator 2 years: Upholstered Comp. 90 days |
Downloads
EasyStand StrapStand Product Catalog
EasyStand StrapStand User Manual
