DNR Wheels

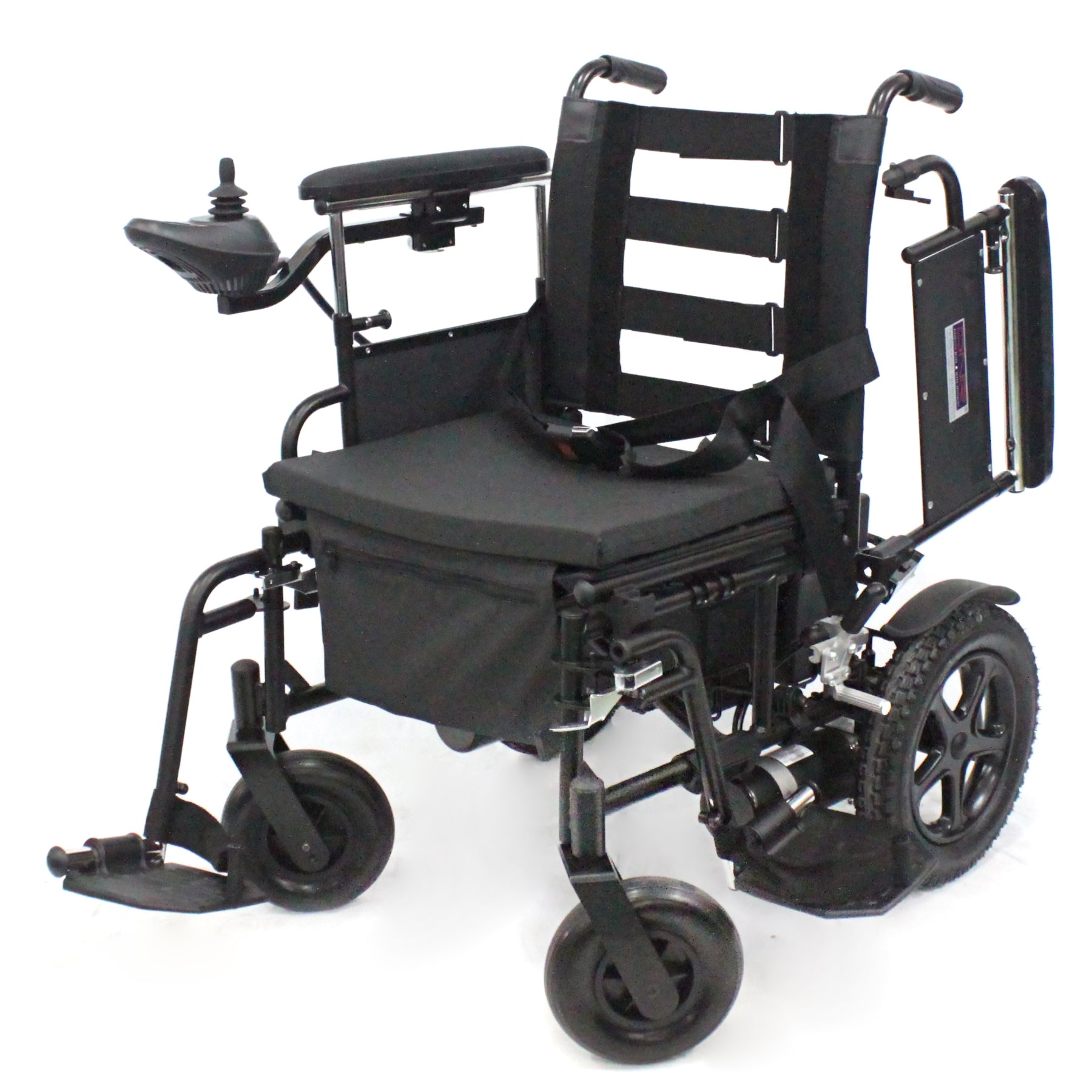

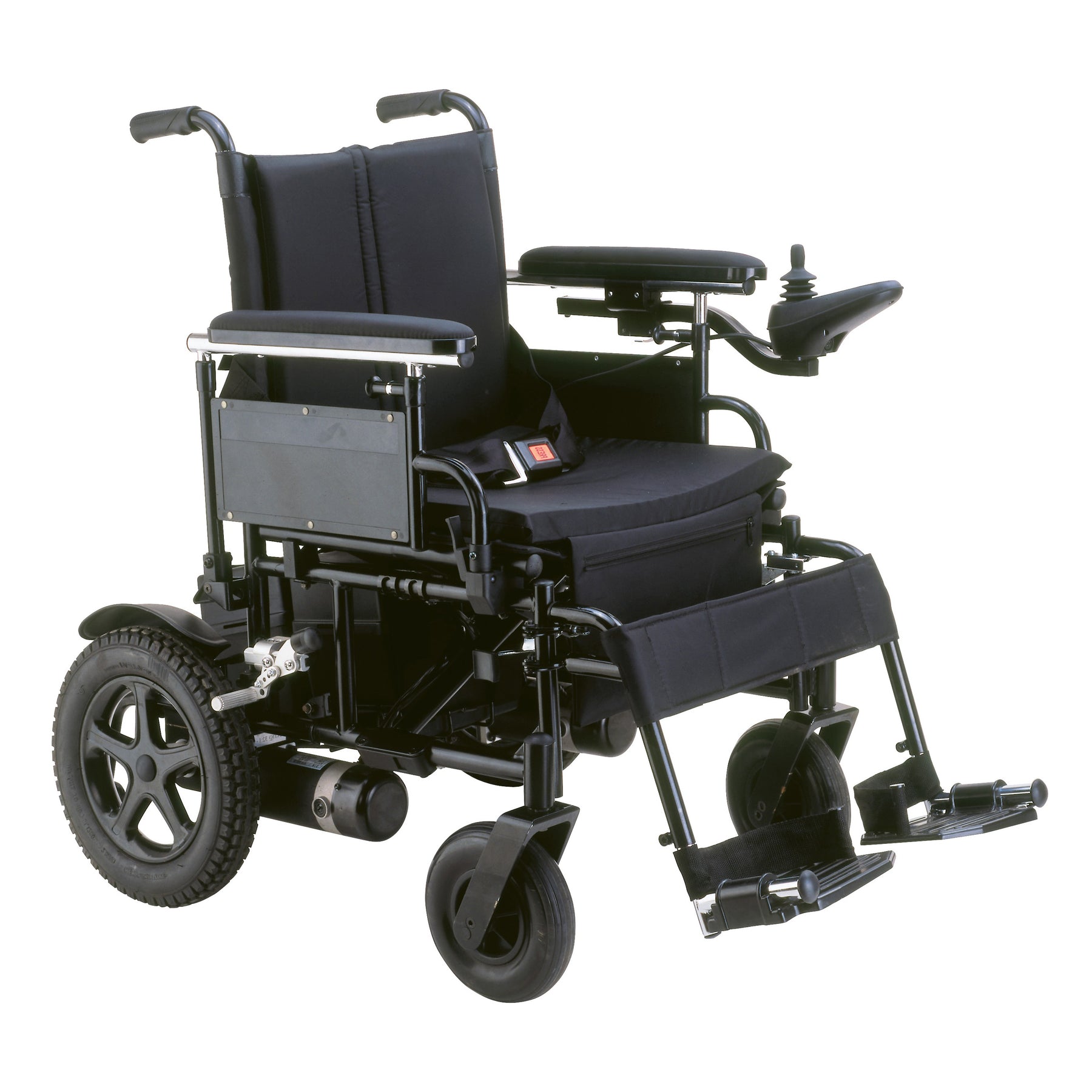

Economy Powerchair
Seat Width:14"
Quantity:
- Metal frame (powder coated)
- Double crossbar frame enhances durability and stability
- Padded back upholstery
- Tension back for better seating posture
- Cushioned seat with pouch
- Padded armrests
- Height adjustable armrests to position user’s arm at ideal position
- Flip back armrests for easy lateral transfer from bed to chair, chair to sofa, etc.
- Swing away and detachable footrests
- Height adjustable footplates to achieve optimal sitting posture
- Footrests come with heel strap to prevent the foot from slipping backwards
- Comes with anti-tippers to prevent the chair from tipping backward
- Comes with safety belt
- Comes with battery tray for stable performance
- The integrated, programmable PG controller and length adjustable joystick mount to accommodate user's requirement
Specifications
| Seat Width: | 14" / 16”/ 18”/ 20”/ 22” |
| Seat Depth: | 16” |
| Front Seat Height: | 20” |
| Rear Seat Height: | 19.5” |
| Back Height: | 17.5” |
| Rear Wheel: | 12 ½” x 2 ¼” |
| Front Wheel: | 8”x 2” |
| Overall Width: | 23" / 25”/ 27”/ 29”/ 31” |
| Overall Depth: | 42” |
| Overall Height: | 38 ¼” |
| Seat to Armrest Height: | 9.5”- 13” |
| Turning Radius: | 29" / 30" / 32" / 33" / 35" |
| Weight: |
38.9kg (without battery) |
| Weight Capacity: | 136kg (14"/16”/18”/20”) 181kg (22”) |
| Country of Origin: | China |
| Warranty: |
12 months for frame, motor & controller. 6 months for batteries. Against manufacturing defects. |
| Upholstery | Black nylon |
| Battery Size: | 12V,36AH x 2 |
| Battery Weight: | 25.4 kg (for two batteries) |
| Cruising Range: | 24 km (14"/16”/18”/20”) 16 km (22”) |
| Charger: | HP DC 24V, 4A |
| Motor: | 2 x 320W, 4600 RPM 32:1 |
| Brake: | Electromagnetic brake |
| Brake Application: | 140cm |
| Climbing angle: | 8° |
| Maximum speed: |
6km/h |
| Controller: | P&G VSI 50A |
| Charging Time: | 8 hours |
| Packing size: | Powerchair: 77 x 36 x 94 cm Battery (x2): 34 x 23 x 24.5 cm |
