DNR WHEELS PTE LTD

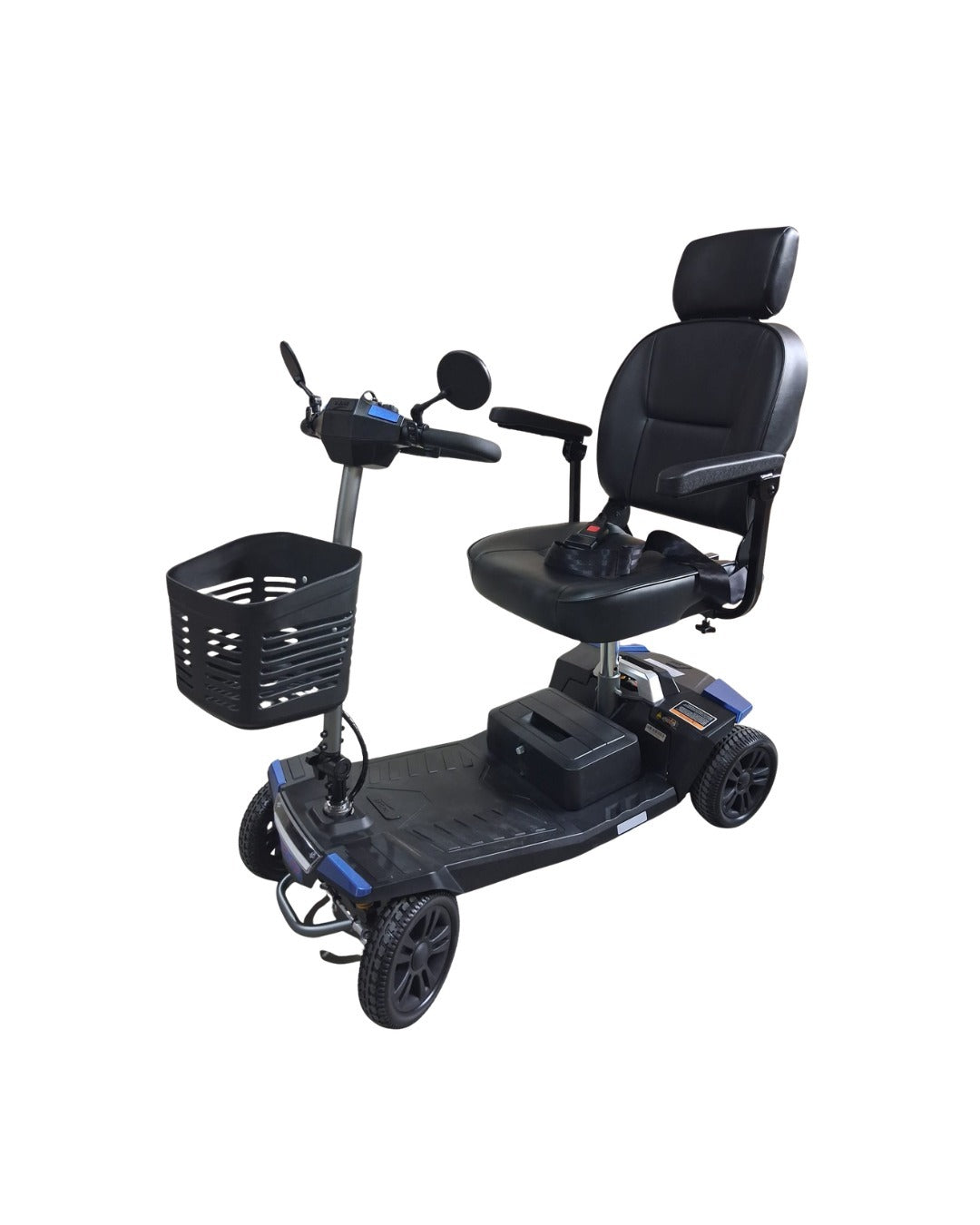

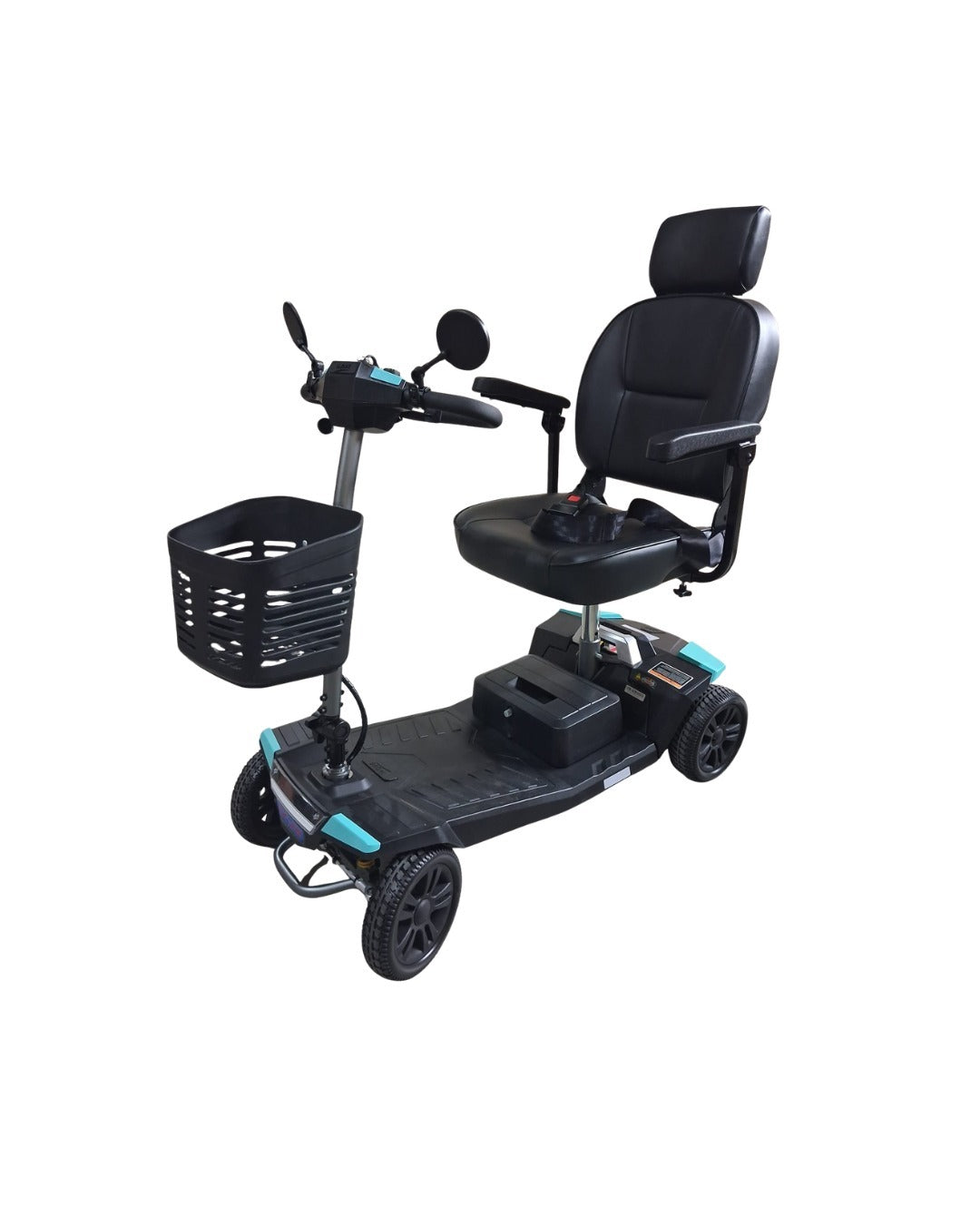

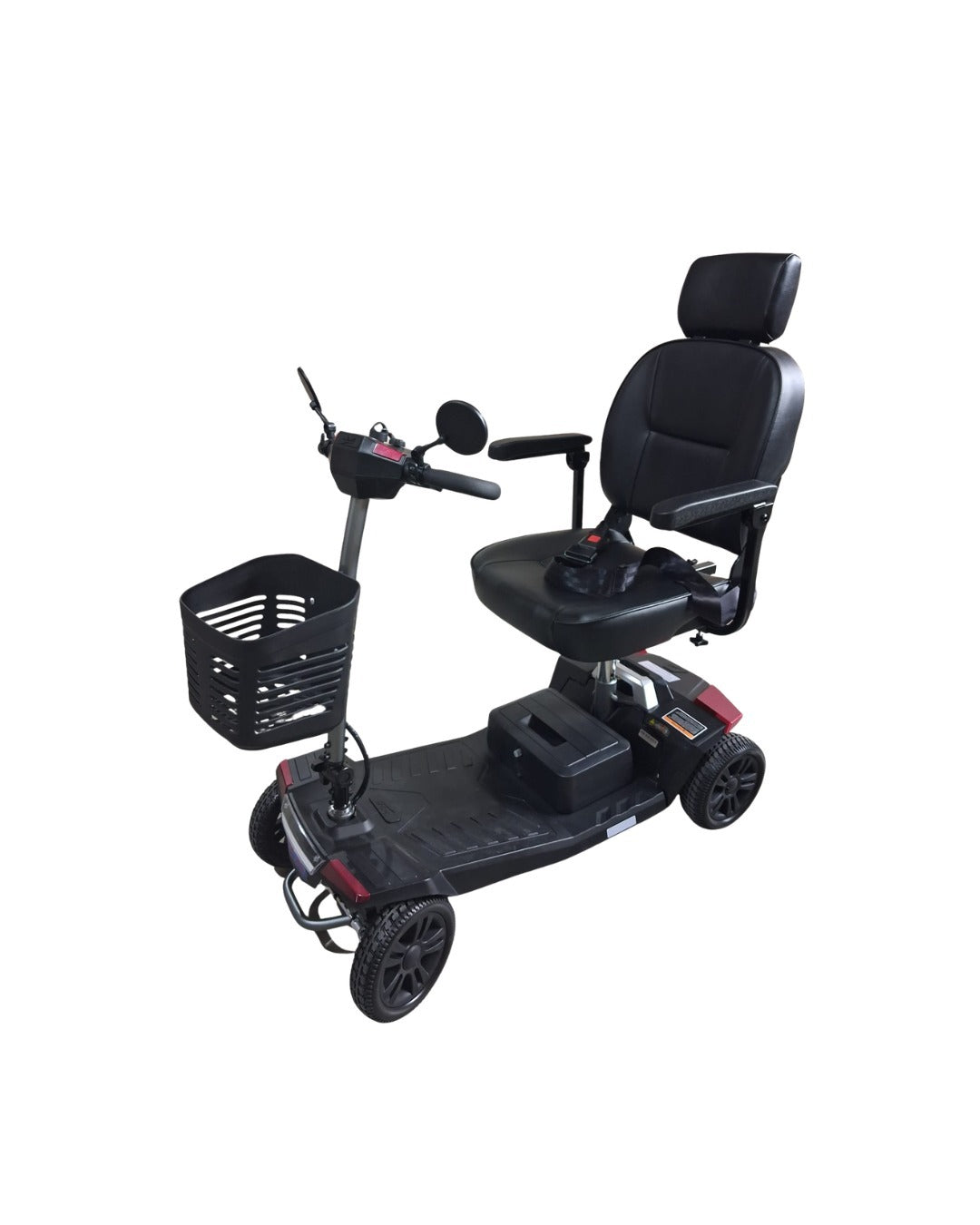

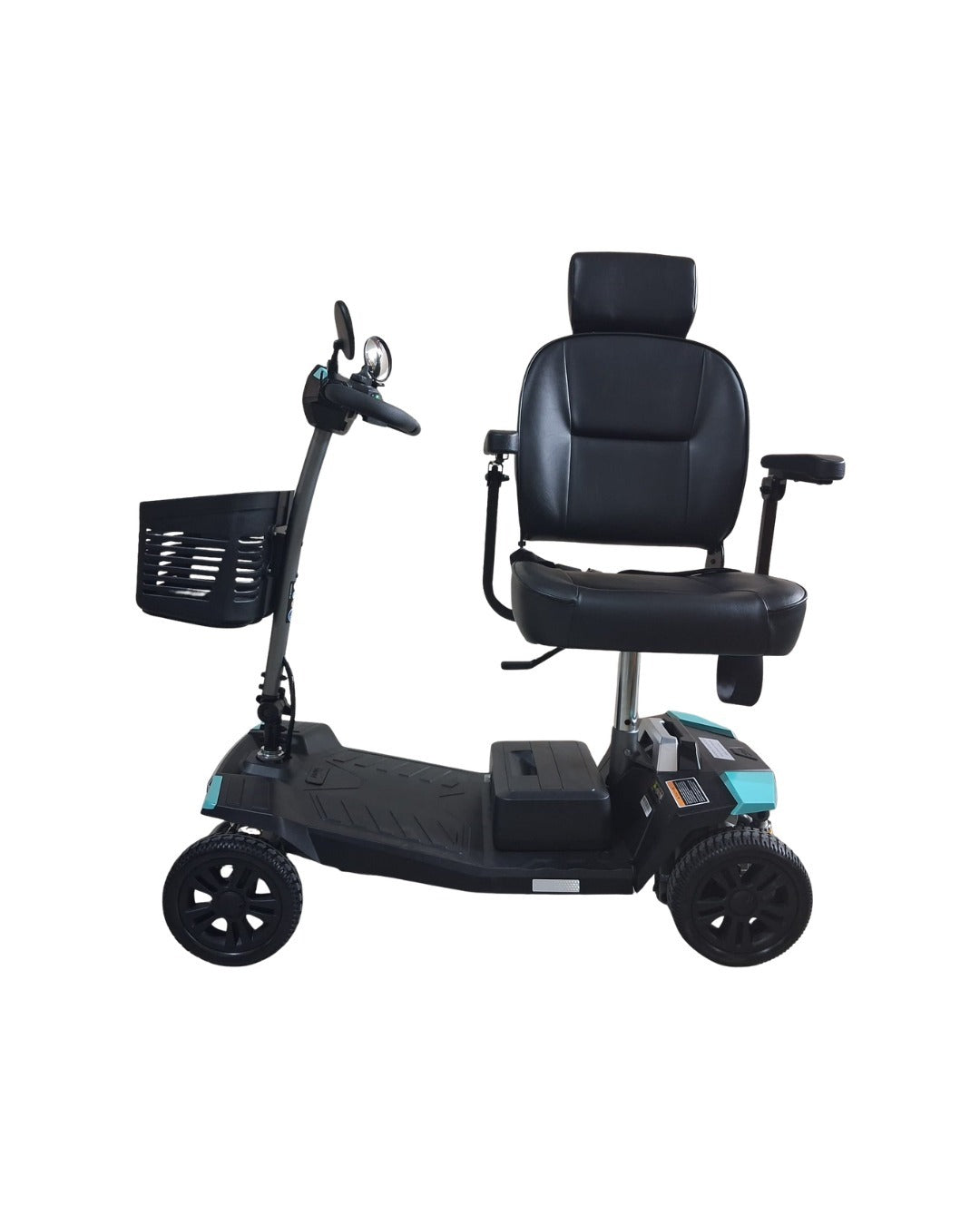

iMOVE 4 Wheels S5 Pro Scooter
- Adjustable delta tiller
- Battery indicator panel

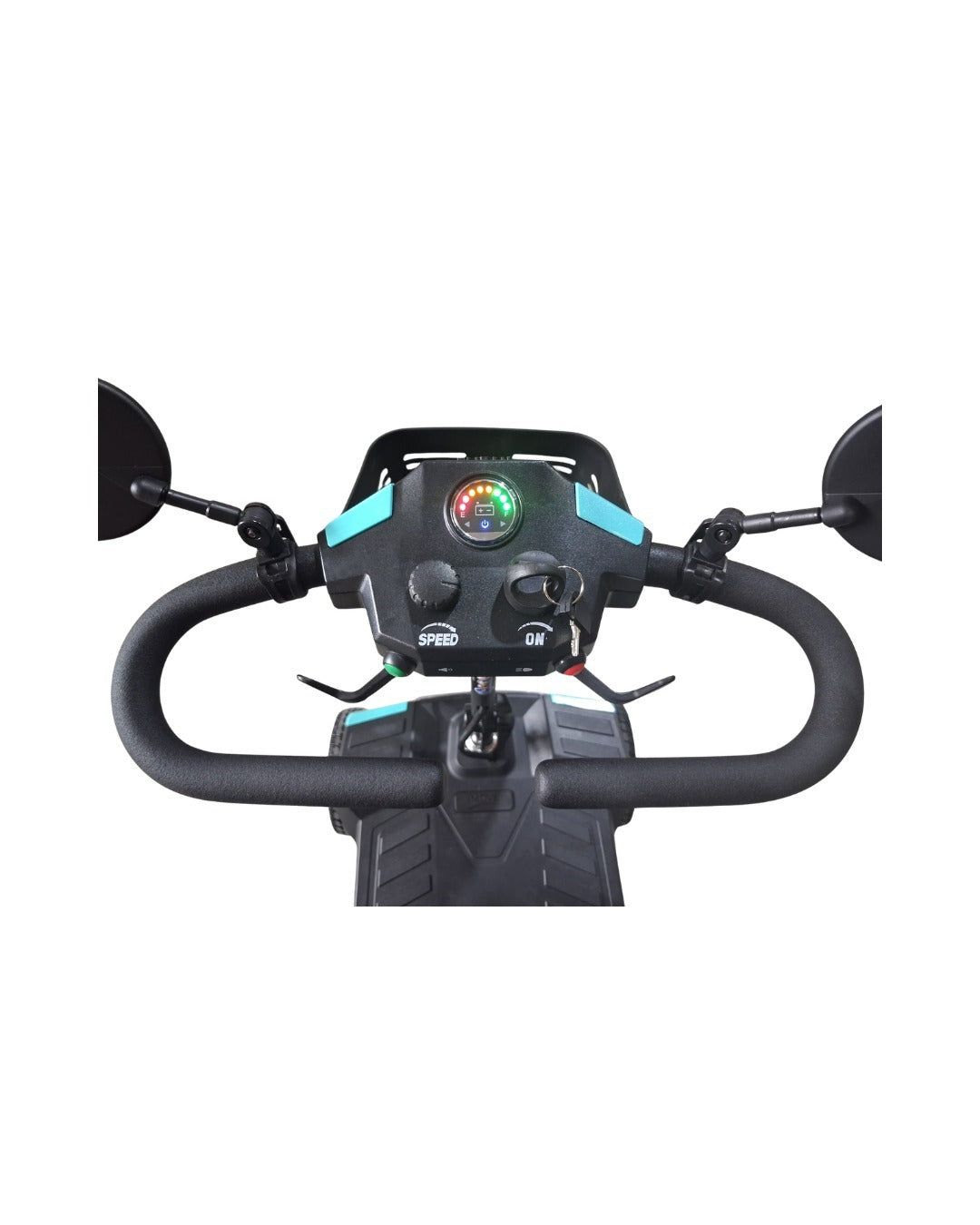

- Easy to read control panel

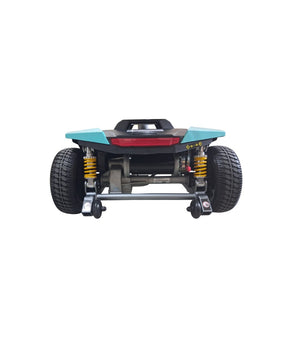

- Built-in front & back suspension
- Comfortable 17” x 16” captain style seat with 360° swivel
- Ergonomic footrest design with spacious foot room
- 9" low profile black tyres on high strength rim
- ABS moulded basket
- Width adjustable armrest

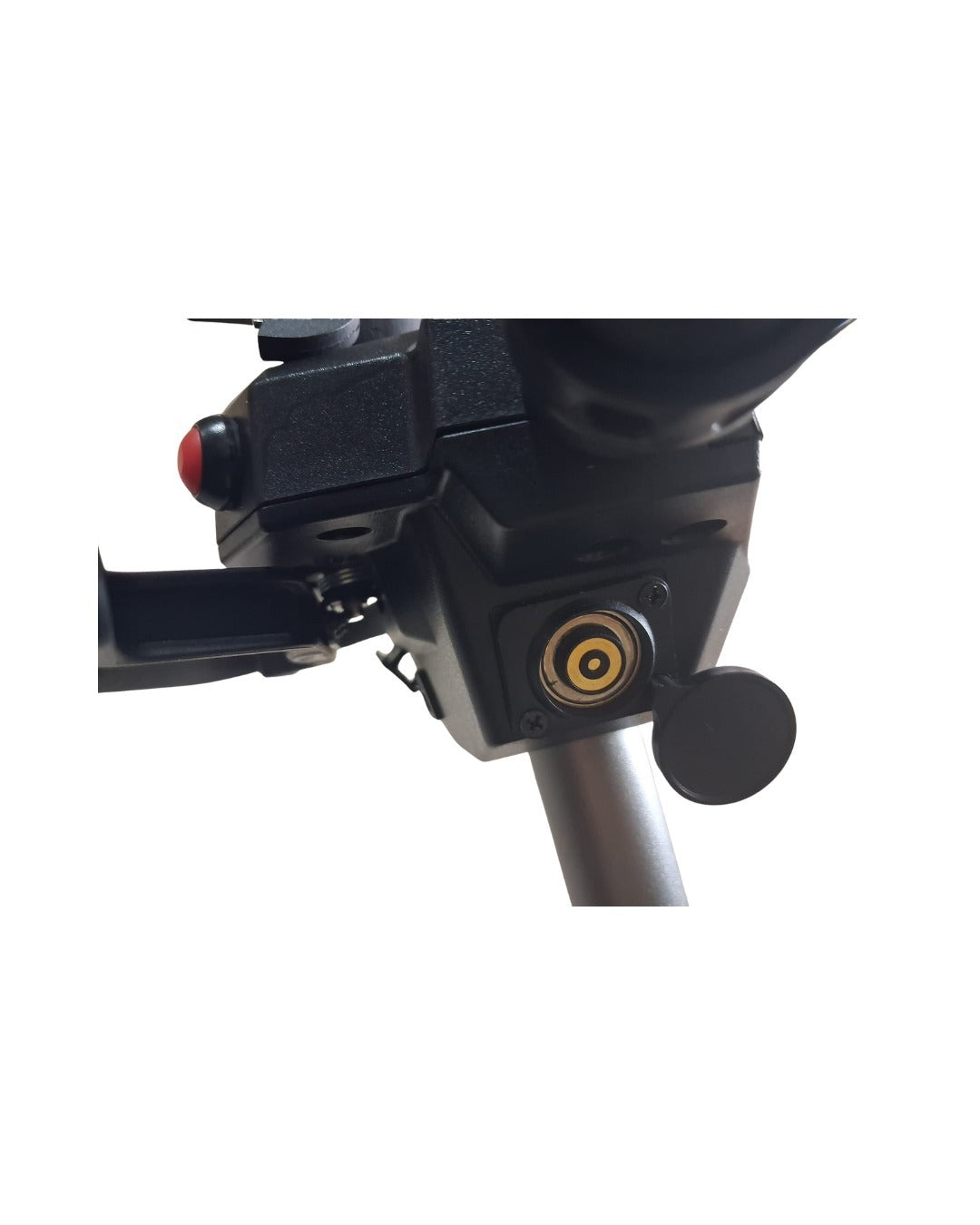

- Magnetic charging port at tiller

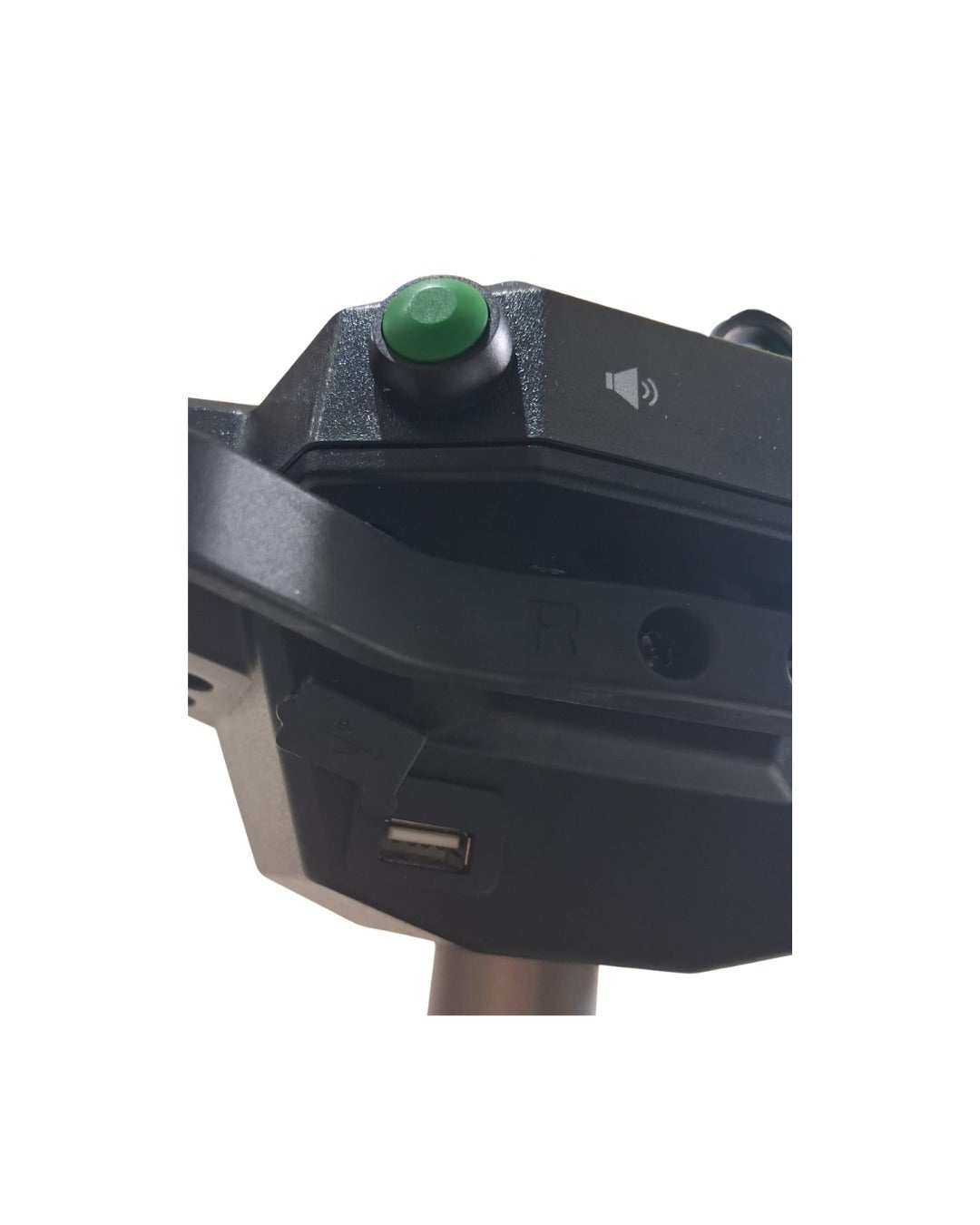

- USB port at tiller to charge mobile phone

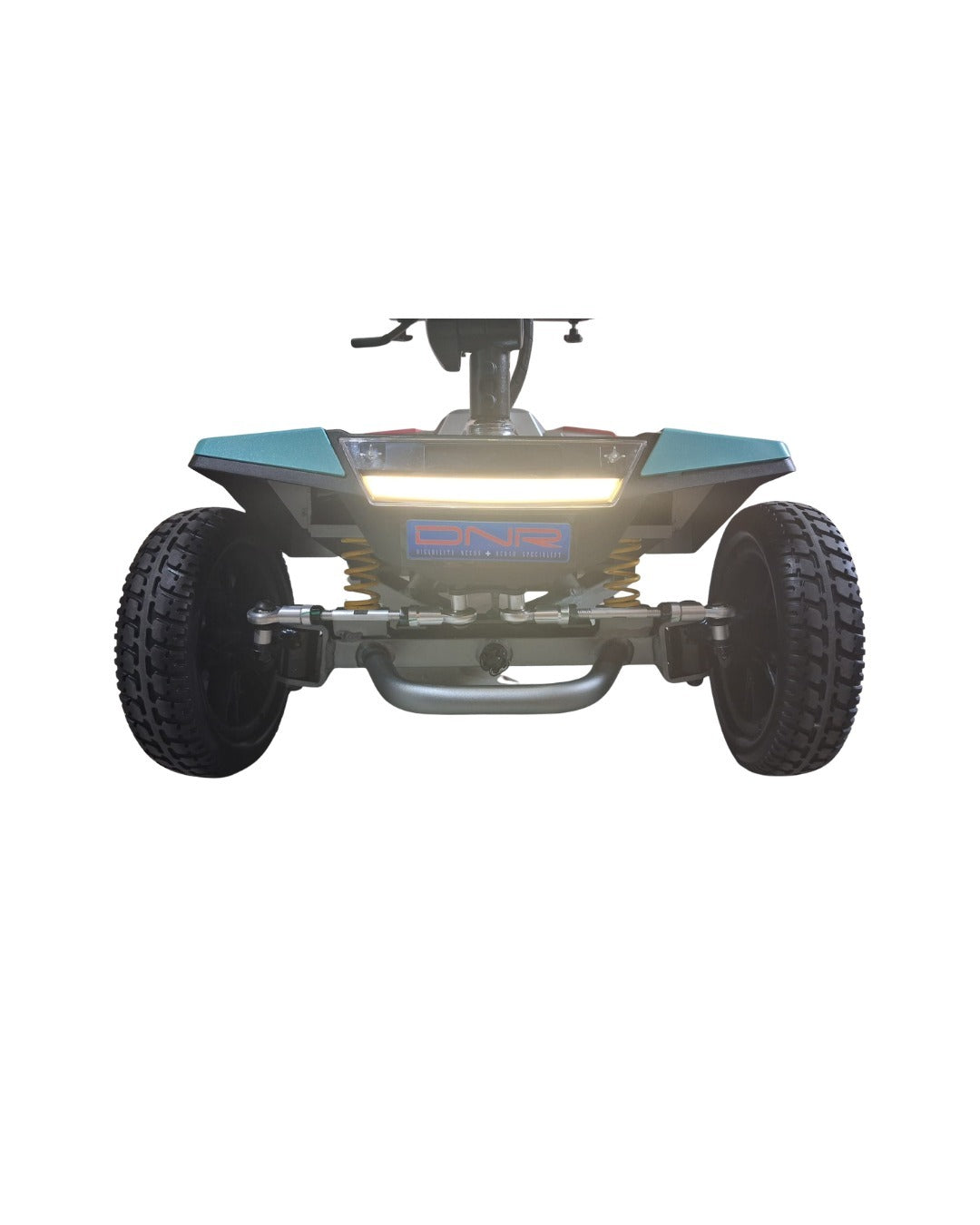

- Front & rear LED lights
- Rear view mirrors
- 22.5AH Lithium battery (range: 23km)
- Reverse sound
- Comes with safety belt
- 3 colour options for selection
Specifications
|
iMOVE 4 Wheels S5 Pro Scooter |
|
|
Maximum Weight Capacity: |
136kg (300 lbs) |
|
Drive Wheels: |
Rear |
|
Maximum Speed: |
Up to 6km/h (3.7mph) |
|
Operating Range: |
23km (14.3miles) |
|
Ground Clearance to Transaxle/Motor: |
1.5" (3.8cm) |
|
Turning Radius: |
43" (109.2cm) |
|
Climbing Angle: |
8° |
|
Battery Type: |
Lithium 24V 22.5AH |
|
Freewheel Mode: |
Yes |
|
Electronic Speed Control: |
Yes |
|
Electro-Mechanical Brakes: |
Yes |
|
Charger: |
2A |
|
Controller: |
50Amp |
|
Dimensions |
|
|
Overall Length: |
45.5" (115.6cm) |
|
Overall Width: |
21" (53.3cm) |
|
Number of Seat Height Positions: |
4 |
|
Height of Increments: |
1" (2.5cm) |
|
Tyres |
Solid, low profile |
|
Front: |
9" (22.9cm) |
|
Rear: |
9" (22.9cm) |
|

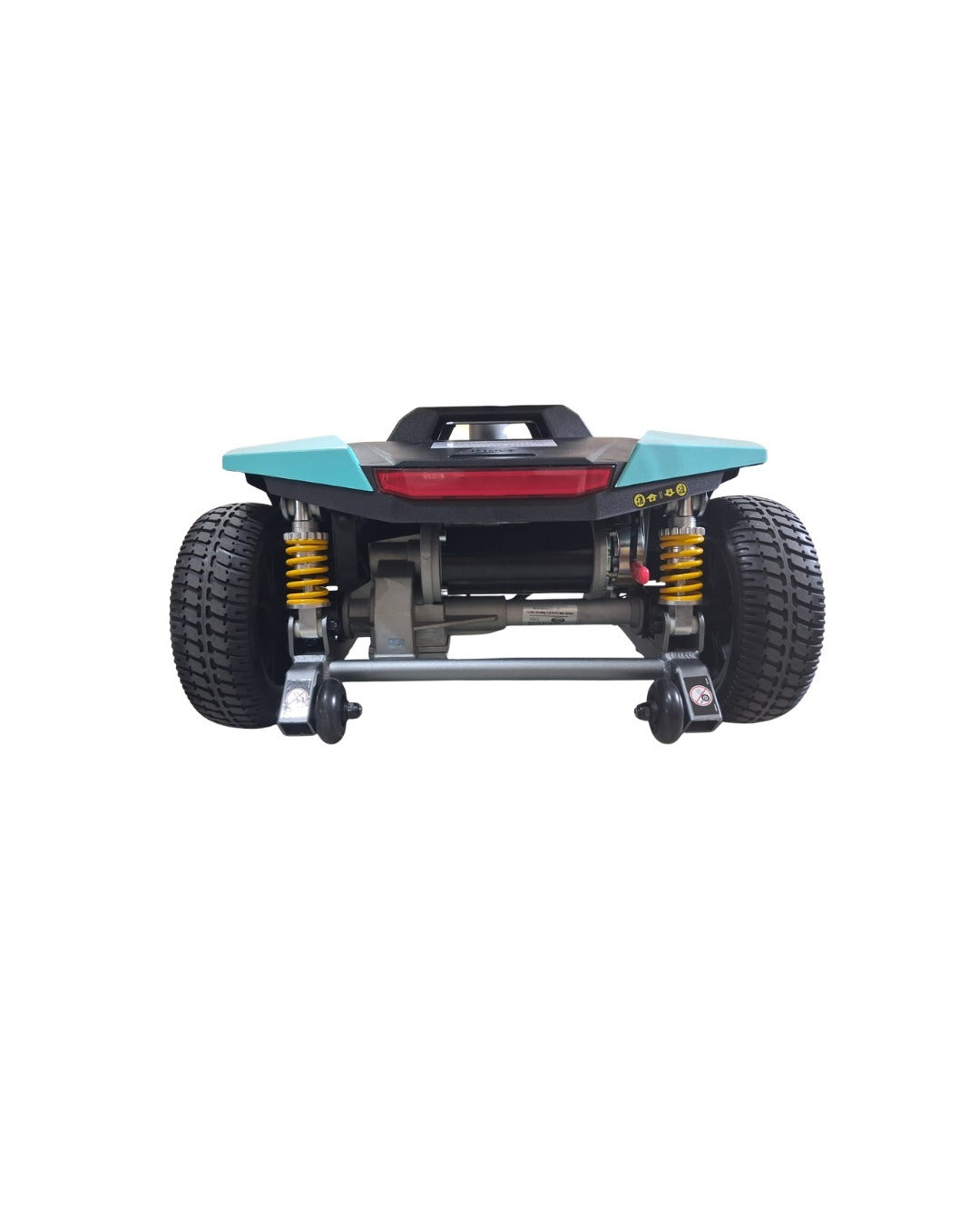

Rear anti-tippers: |
2" (5.1cm) |
|
Standard Seating |
Captain Style |
|
Width x Depth: |
17" x 16" (43.2cm x 40.6cm) |
|
Seat Back Height |
23.75” (60.3cm) |
|
Floor to Seat Height: |
20.5" – 23.5” (52.1 – 59.7cm) |
|
Floor Board to Seat Height: |
15" - 18” (38.1 – 45.7cm) |
|
Floor Board to Seat Height (default): |
17” (43.2cm) |
|
Weight of Battery: |
5.4kg |
|
Weight of Seat: |
11.4kg |
|
Weight of Base: |
20.8kg |
|
Total Weight of Scooter: |
37.6kg |
|
Standard Colour: |
Tiffany / Blue / Red |
|
Warranty Period: |
12 months for frame, motor, controller & battery. Wear & tear not included. |
