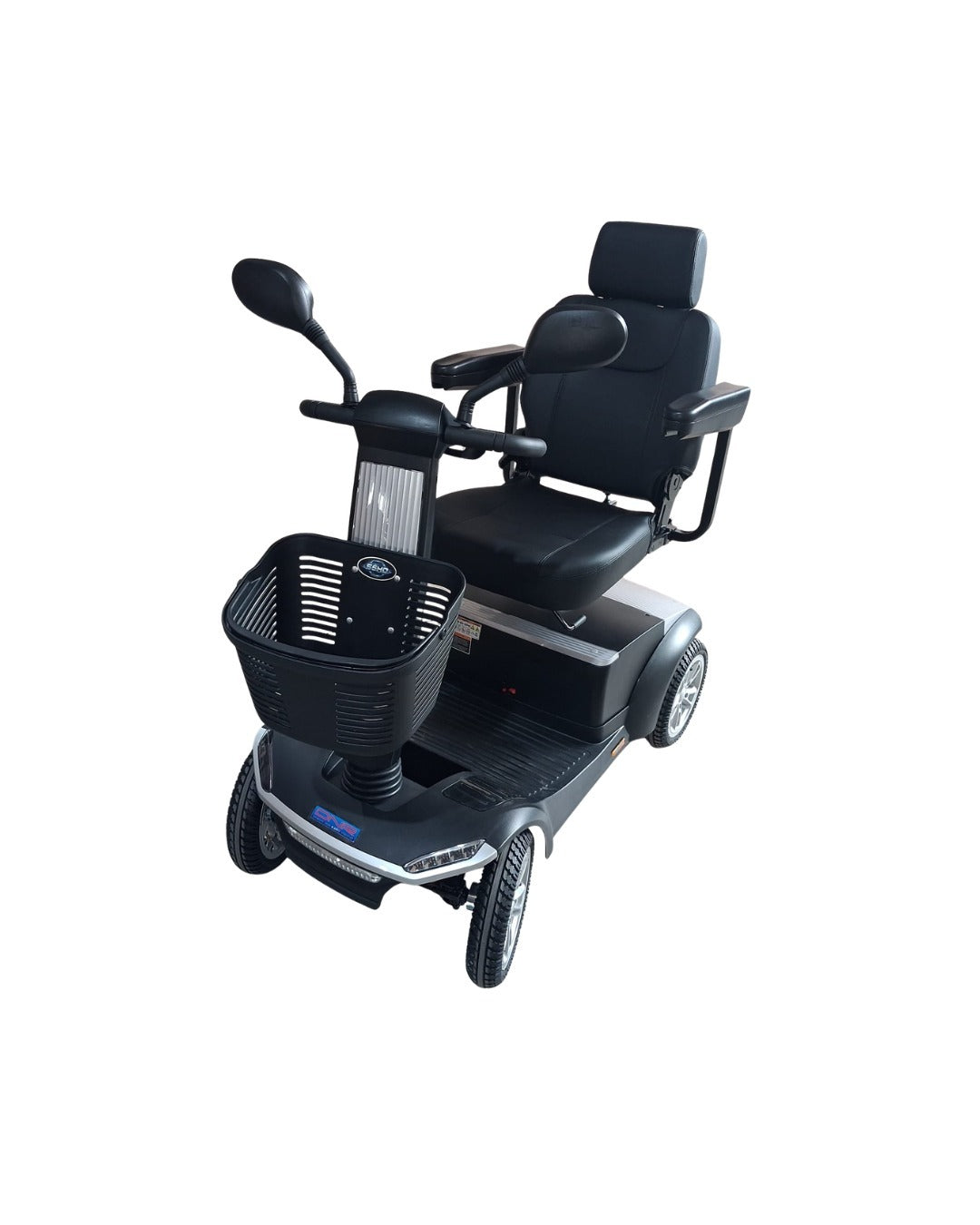

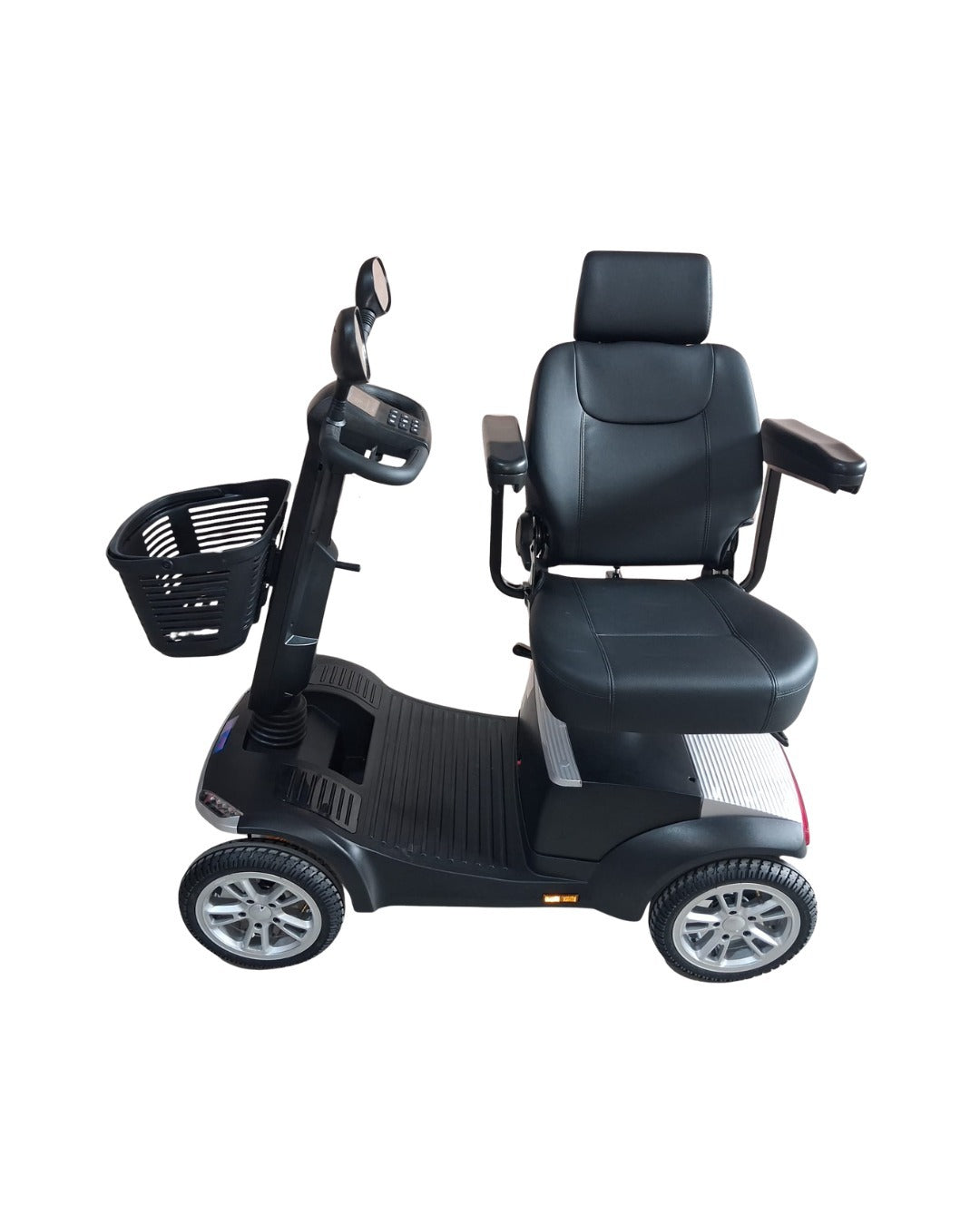

iMOVE 4 Wheels S6 HD Scooter

iMOVE 4 Wheels S6 HD Scooter

Maximum Weight Capacity:

160kg (352 lbs)

Drive Wheels:

Rear

Maximum Speed:

Up to 6km/h (3.7mph)

Operating Range:

50km (31.1miles)

Ground Clearance to Transaxle/Motor:

2.5" (6.4cm)

Turning Radius:

40" (101.6cm)

Climbing Angle:

10°

Battery Type:

Lead Acid 2 x 12V 55AH

Freewheel Mode:

Yes

Electronic Speed Control:

Yes

Electro-Mechanical Brakes:

Yes

Charger:

8A

Controller:

90Amp

Dimensions

Overall Length:

47" (119.4cm)

Overall Width:

25.25" (64.1cm)

Number of Seat Height Positions:

2

Height of Increments:

1" (2.5cm)

Tyres

Solid, low profile

Front:

11" (27.9cm)

Rear:

11" (27.9cm)

Rear anti-tippers:

2.5" (6.4cm)

Standard Seating

Captain Style

Width x Depth:

18" x 17" (45.7cm x 43.2cm)

Seat Back Height

25” (63.5cm)

Floor to Seat Height:

26" – 27” (66 – 68.6cm)

Floor Board to Seat Height:

17.5" – 18.5” (44.5 – 47cm)

Floor Board to Seat Height (default):

18.5” (47cm)

Weight of Battery:

17kg

Weight of Seat:

19.5kg

Weight of Base:

47.1kg

Total Weight of Scooter:

100.6kg

Standard Colour:

Silver

Warranty Period:

12 months for frame, motor, and controller; 6 months for batteries.

Wear & tear not included.
