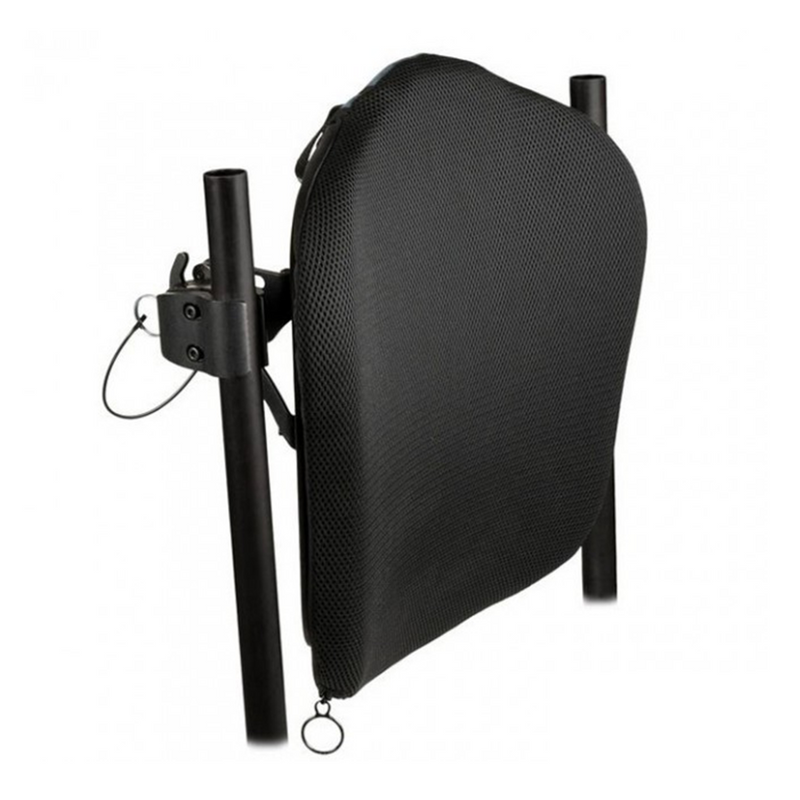

JAY J3 Posterior Lateral Back

Sale price$1,000.00 SGD
SKU: 75/J3PLMTS12SH
Back Support Level:Mid Thoracic (MT)
Back Height (Refer Product Features for Dimension):Short (S)
Back Width:12"
Quantity:
Jay J3 posterior lateral back is the most versatile wheelchair back for with different support height levels. The J3 wheelchair back product line offers a multitude of width, height, and contour depth back shells to fit the back to the client. J3 Posterior lateral has 3" of lateral thoracic support which provide posterior and lateral thoracic stability to clients with varying postures and functional needs. Each back is lightweight and adjustable, with numerous hardware choices allowing for easy installation.

Four support height levels to provide support for clients with wide ranges of torso heights and levels of injury.

Back Height / Size Short (S) Medium (M) Tall (T)
Lower Thoracic (TL)
6.5" 8.0" 9.5"
Mid Thoracic (MT)

12.0" 13.5" 15.0"
Mid Thoracic (MT) X: 4.5"
Y: 5.5"
X: 4.5"
Y: 7"
X: 4.5"
Y: 8.5"
Upper Thoracic (UT)

16.5" 18.0" 19.5"
Upper Thoracic (UT) X: 5.5"
Y: 7.5"
X: 5.5"
Y: 8.5"
X: 5.5"
Y: 9.5"
Shoulder Height (SH)

21.0" 22.5" 24.0"
Shoulder Height (SH) X: 5.5"
Y: 8.5"
X: 5.5"
Y: 9.5"
X: 5.5"
Y: 10.5"

      Specifications

      Product Weight 1.4 lbs. and up (without hardware)
      Width Range 12" to 20"
      Height Mid thoracic: 12", 13.5", 15"
      Upper thoracic: 16.5", 18", 19.5"
      Shoulder height: 21", 22.5", 24"
      Hardware Angle Adjustability 20°
      Hardware Width Adjustability +2"
      Frame Tubing Compatibility 3/4" to 1 1/8"
      Lateral Contour Support 3"
      Foam Insert 1½" soft foam
      Weight Capacity 300 lbs. / 136kg (12" to 20" widths)
