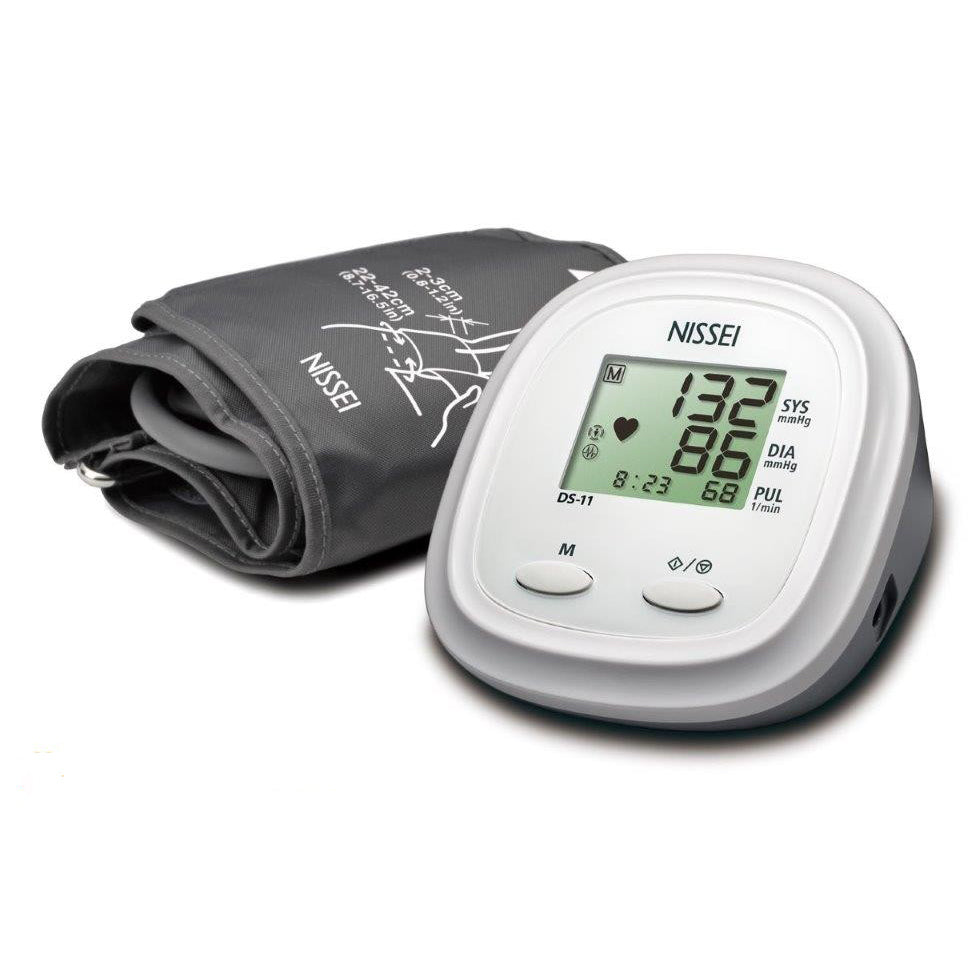

Nissei Blood Pressure Monitor DS-11




Functions of Nissei DS-11 Digital Arm Type Automatic BP Monitor

Nissei Blood Pressure Monitor DS-11

  • Automatic inflation
  • Measurement during inflation
  • Simple operation
  • 60 readings memory bank
  • Irregular pulse rhythm indication
    (This function shows that the pulse waves are not appropriately detected during blood pressure measurement.)
  • Body motion indicator
  • Applicable arm circumference : Approx. 22~42cm
  • Date and Time



Operating Principle

Oscillometric Method


13 digits liquid crystal display

Pressure Indication Range

0 to 300 mmHg (cuff pressure)

Measuring Range

50 to 250 mmHg (systolic),
40 to 180 mmHg (diastolic),
40 to 180 bpm (pulse rate)


±3 mmHg (cuff pressure),
±5% of reading (pulse rate)


60 measurements and average

Inflation Automatic inflation


Automatic exhaust valve

Power Supply

Four 1.5 volt LR6 (AA alkaline) batteries or AC adaptor ADP-W5 series

Electric Rating

DC6V/4W, with four LR6 batteries
Adaptor: AC100-240V, 50/60Hz, 0.12A
Unit; DC6V, 500mA, with designated AC adaptor

Operating Condition

+10°C to +40°C, 15% to 85% RH (noncondensing)

Transportation / Storage Condition

-20°C to +60°C, 10% to 85% RH (noncondensing)


Coverage arm circumference: 22 to 42cm, applied part; BF

Main Unit

Weight; Approx. 250g (without batteries)
Size; 116.5 x 122.2 x 69.9mm (WxDxH)

Protection against  Electric Shock

Internally powered equipment /
Class II equipment, Type BF applied part

Mode of Operation

Continuous operation


Internally powered equipment / Class II

Protection Class IP

IP20: Protected against solid foreign particles with a diameter of more than 12.5mm, no protection against water

Expected Service Life

5 years
