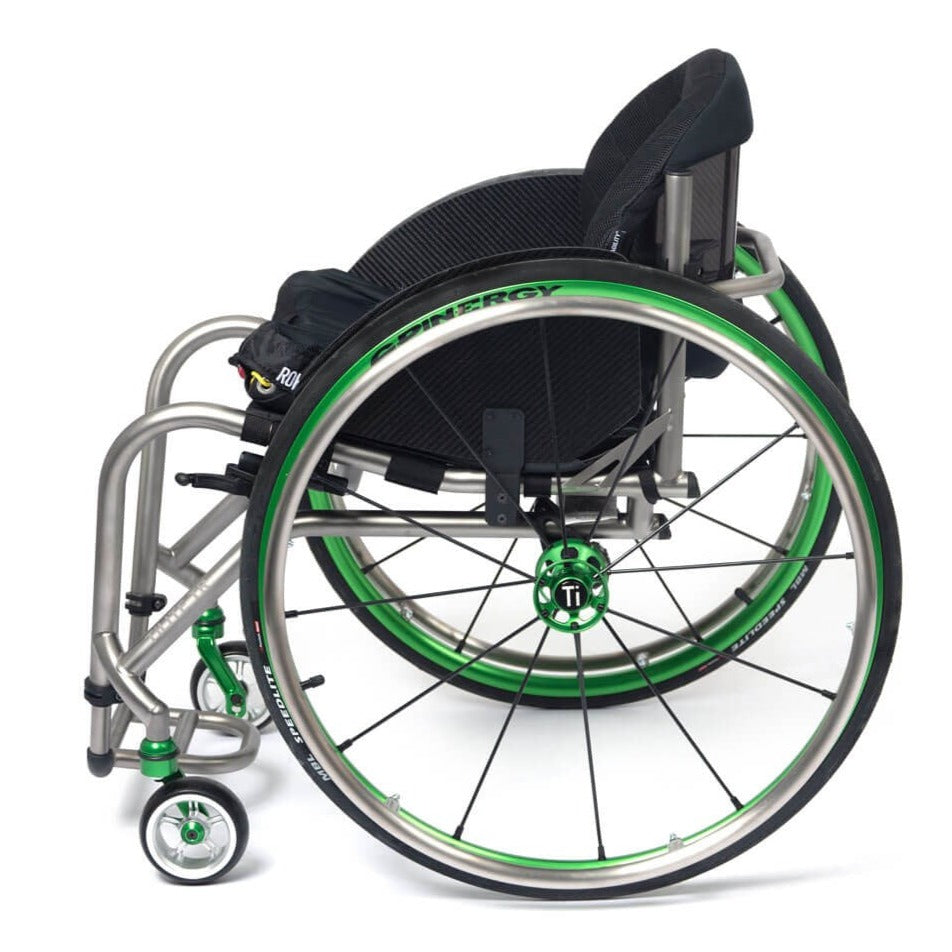

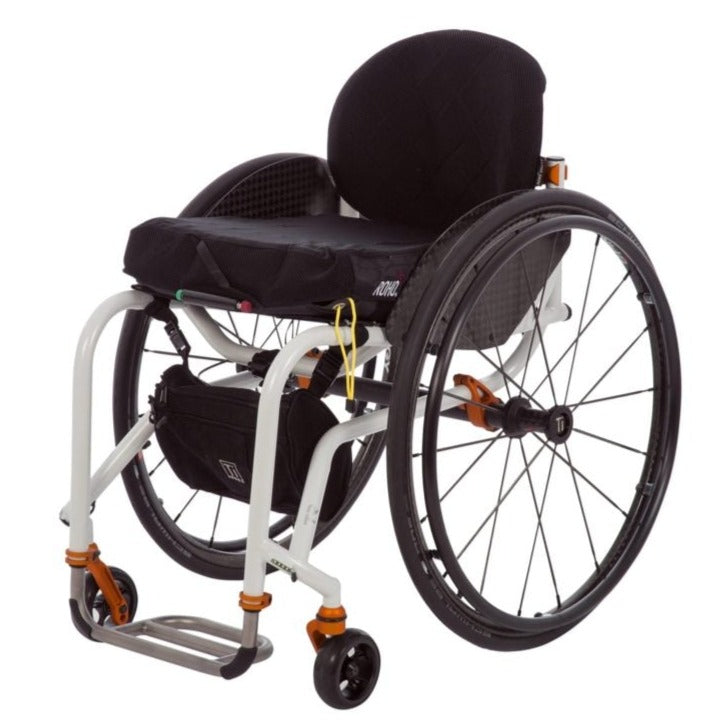

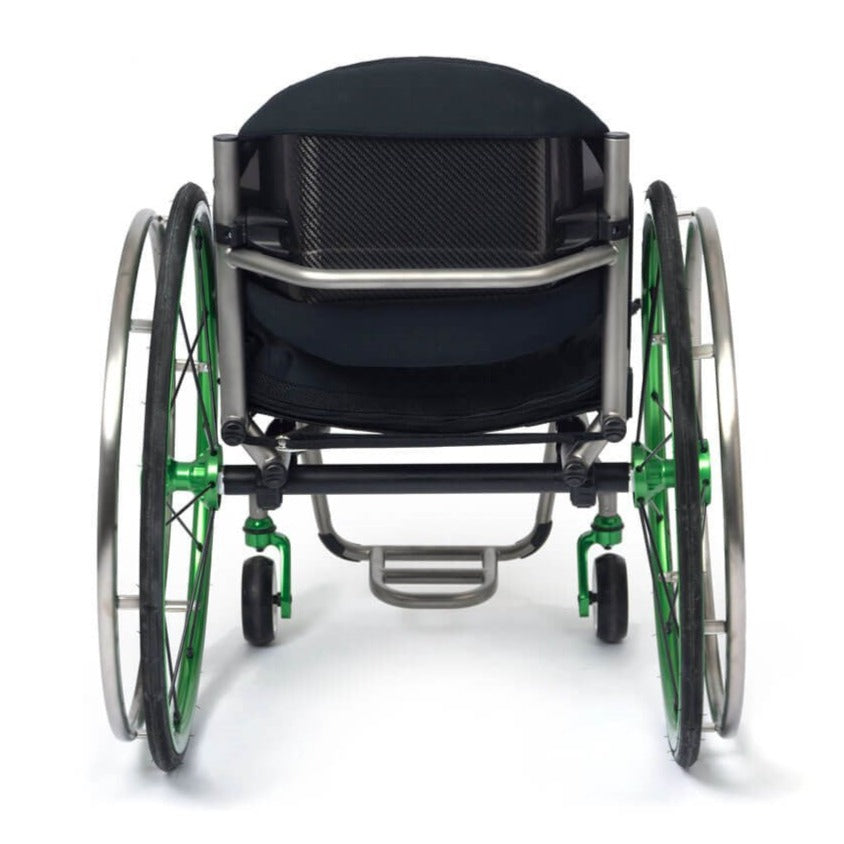

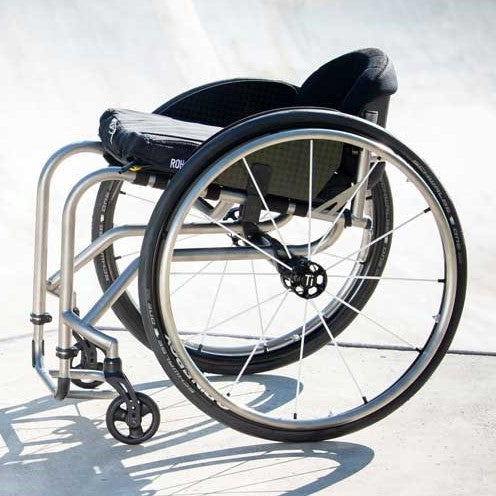

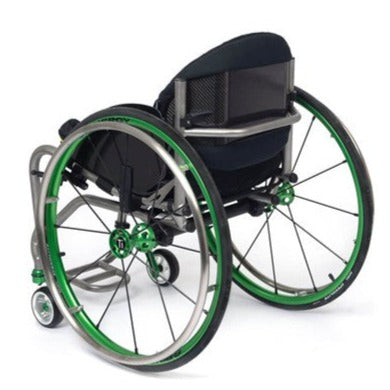

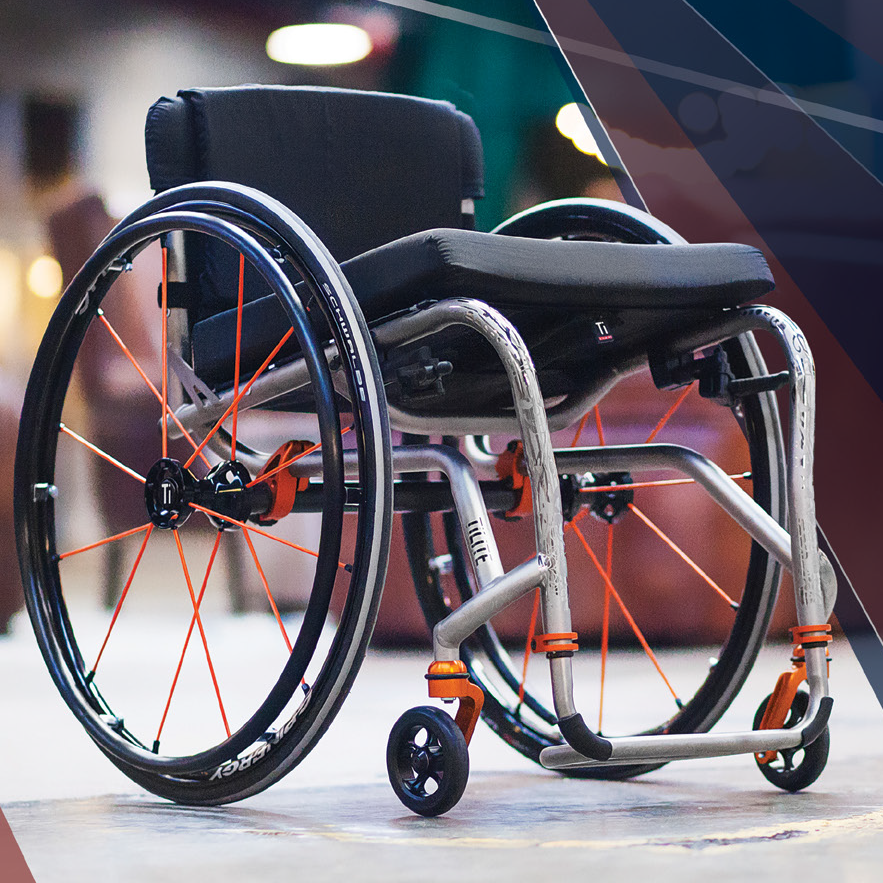

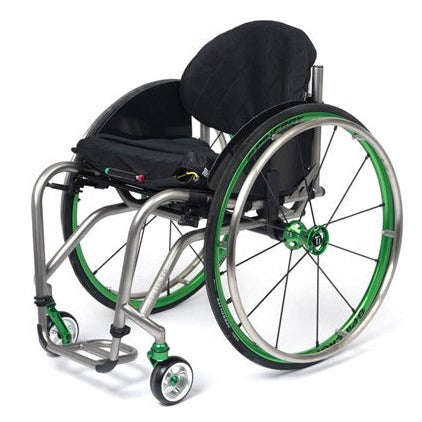

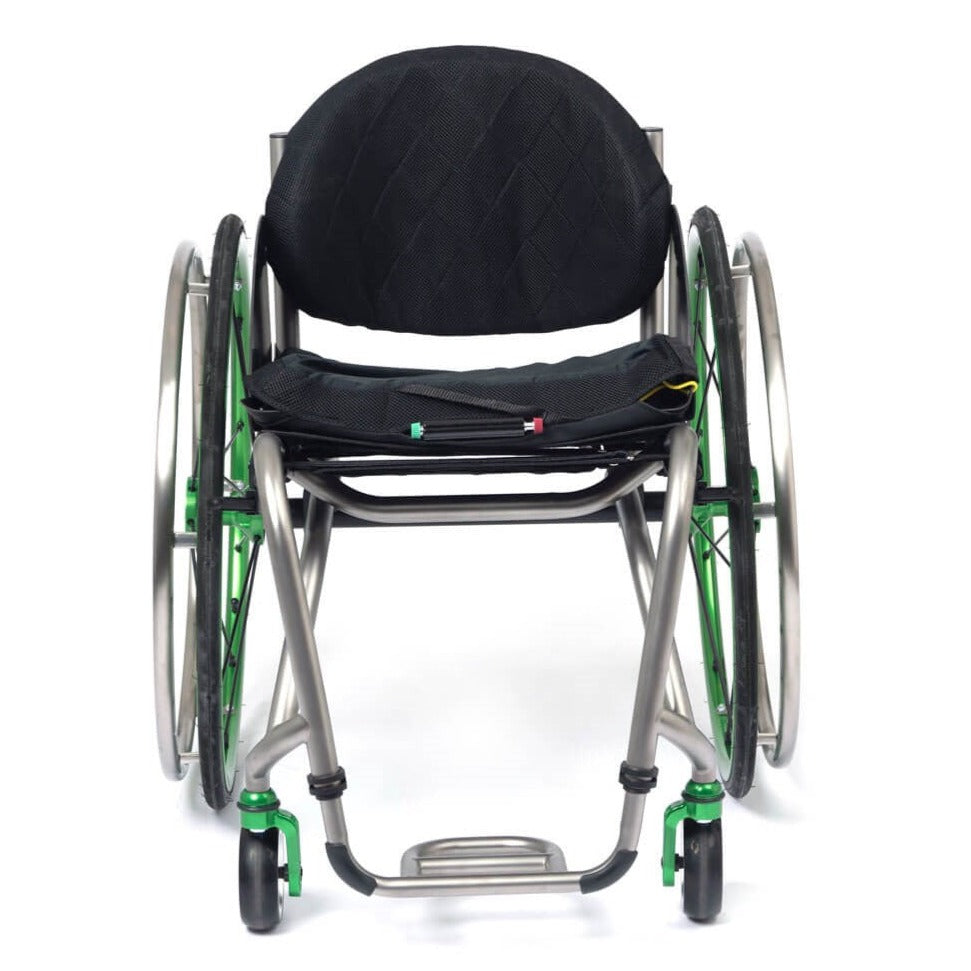

Tilite TR Lightweight Rigid Wheelchair
The best from every angle
The sweeping curves of the titanium dual-tube frame are the perfect fusion of striking design and driven performance. Lighter, more efficient, and more elegant than any chair anywhere. As our flagship rigid chair, the TR is merely the best of the best.
Rigid frame chairs are the lightest and highest performing chairs because they are constructed from the fewest possible components and have the fewest moving parts.
Swept-in Dual Tube Frame
Imagine no wasted energy and fewer strokes throughout the day. Then introduce your imagination to the superior rigidity and optimal energy transfer of the swept-in dual-tube frame of the TR. Want more? Then add ease of transport to rival that of any mono-tube frame.
The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.
Titanium absorbs vibration, won’t break and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.
Swept-In Dual-Tube Frame
- The flowing lines of dual-tube geometry stiffens the wheelchair, transferring more of your push stroke directly to the ground.
- No wasted energy means fewer strokes throughout the day.
- Sweeping curve of the lower frame tube creates a unique look as the lower frame blends in and fades away.
Swept Caster Arm with bullet caster housing reduces weight and adds yet more style.
Zero Play Camber Plugs give a much tighter feel to the chair like sport suspension in a car. CNC machined from billet aluminum to the highest tolerances, they remove any side to side movement from the rear wheels.
The Ergonomic Advantage provides an additional unique bend in the frame creating an ergonomic seat slope sitting you lower in the chair providing greater pelvic stability and improved posture through optimal contouring.
Frame Type Rigid Frame Style Dual-Tube Frame Material Titanium TiFit Yes Adjustability Limited Adjustability Growable N/A Custom Configuration Yes Frame Options Black Edition
Power Adaptable Frame
Transport Weight** 9.3 lb. Seat Width 12" - 20" Seat Depth 12" - 20" Front Seat Height 15" - 21" Rear Seat Height 12.5" - 21" Camber 0°, 2°, 4°, 6°, 8°, or 12° Front Frame Angle 60°, 65°, 70°, 75°, 80°, 85°, or 90° Footrest Width Options Standard Taper
Seat Back Type (Folding) Folding Seat Back
Adj. Height 8.5" - 21"
Adj. Angle 80° - 101°
Seat Back Type (Fixed) Fixed Seat Back
Fixed Height 5" - 20"
Fixed Angle 80° - 101°
Center of Gravity Adjustment 5" Weight Limit 265 lb. Transit Options N/A Warranty Lifetime on Frame
One Year on TiLite Components
Red = Fixed | Green = Adjustable
**Weight based on 16″ x 16″ wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24″ (540) rear wheels weighs 7.2 lb.
