Description
- Overview
- Specifications
Overview

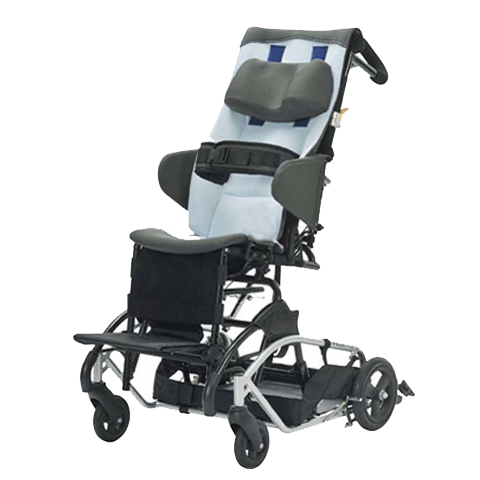

- PIGLEO III is for kids only and is transit wheelchair, which the back of the chair can be laid back down as a bed, or kids can be sit in a fixed natural position by safety harness.
- The tilt angle of front wheels can be adjusted up to 40° that is easily getting over the curbs.
- The max lying angle is 90°-120°.
- This wheelchair is also can be folded into a small size that can easily and conveniently be carried out.
- It attached anti-tippers that good for safety to prevent the chair from tipping over backward
Contents
- Pigleo Tilt III Positioning Folding Stroller
- Seat upholstery
- Back upholstery
- Storage rack
- Side Guard
- Pillow
- ArmrestsOptional Accessories

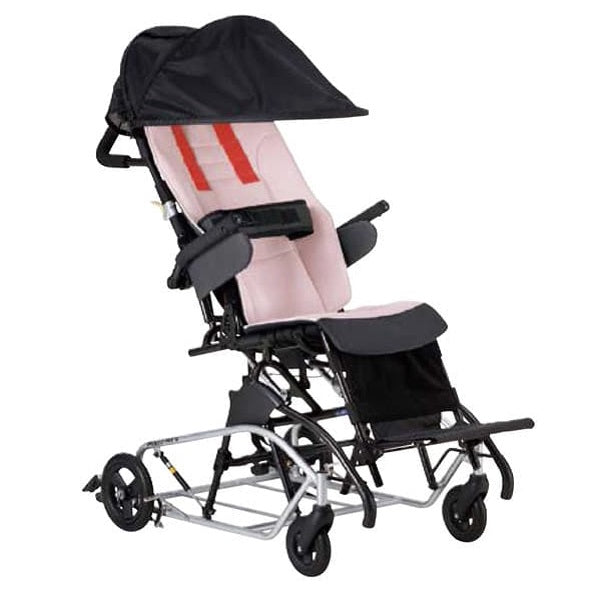

- Sunshade
- Table (it should be installed to the armrests)
Specifications
| S | M | L |
LL |
|
| Age Range | 1 year old | 5 years old | 11 years old | 13 - 16 years old |
| Corresponding Height | 80 - 110cm | 110 - 130cm | 120 - 140cm | 140 - 170cm |
| Weight Capacity | 30kg | 30kg | 45kg | 60kg |
| Seat Height | 51cm | 51cm | 53cm | 53cm |
| Width of cushions (seat and back support) | 26cm / 32cm | 30cm / 36cm | 34cm / 40cm | 38cm / 44cm |
| Back Support Height | 58cm | 63cm | 70cm | 90cm (include head support) |
| Seat Depth | 20 - 28cm | 22 - 30cm | 28 - 38cm | 34 - 42cm |
| Footrest to Seat Height | 13 - 28cm | 22- 34cm | 23 - 35cm | 30 - 37.5cm |
| Handle Height | 115cm | 114cm | 117cm | 117cm |
| Wheels | 5" PU front caster 8" PU rear wheel |
5" PU front caster 8" PU rear wheel |
5" PU front caster 8" PU rear wheel |
5" PU front caster 8" PU rear wheel |
| Weight | 12.3kg | 12.7kg | 15.1kg | 16.1kg |
| Angle between Leg Support and Seat | 90°- 180° | 90°- 180° | 90°- 180° | 90°- 180° |
| Angle between Leg Support and Footrest | 90°- 180° | 90°- 180° | 90°- 180° | 90°- 180° |
| Maximum Tilt Angle | 40° | 40° | 40° | 40° |
| Maximum Lying Angle | 90°- 120° | 90°- 120° | 90°- 120° | 90°- 120° |
| Overall Size HxWxL | 115x62x89cm | 114x62x94cm | 123x67x104cm | 142x67x114cm |
| Folded Size HxWxL | 95x45x62cm | 95x45x62cm | 103x45x67cm | 101x45x67cm (include head support) |
