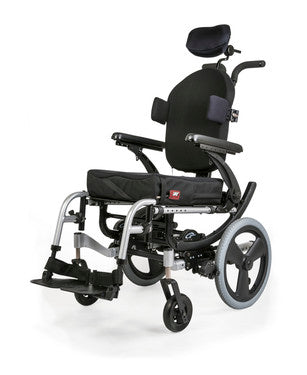

Quickie® IRIS® Tilt-In-Space Wheelchair

$0.00

SKU:
30-6/IRIS
Quantity
  • Product Description

      40° or 55° of Intelligent Rotation in Space Technology

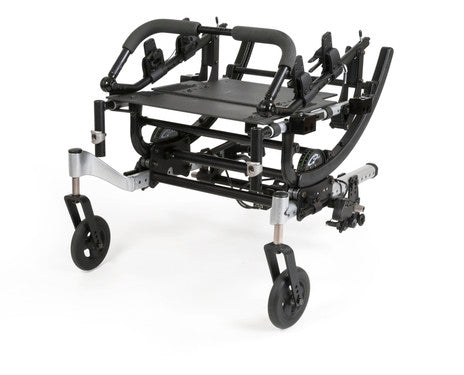

      Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.

      The Quickie IRIS now features a new Standard weight capacity of 300 lbs and Heavy Duty weight capacity of 400 lbs.

      JAY Lower Extremity Support

      The new JAY Lower Extremity Support option is fully integrated into the Quickie IRIS hanger mount. The swing in/out latch mechanism design makes changing hangers from the lower extremity support a very intuitive process.

      Available in two pad sizes, the technology allows for vertical and horizontal angle adjustment to achieve the proper support for our clients' needs.

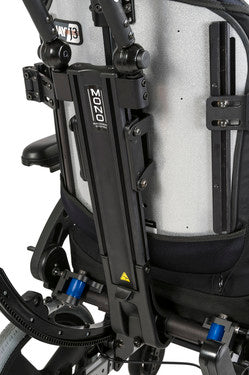

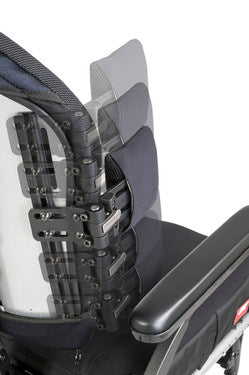

      MONO Backrest System® Option

      The MONO Backrest System's single-post offers limitless seating and positioning capabilities. By mounting the backrest to a single central post, the backrest and chair widths may be selected independently, hardware interference is eliminated to allow for infinite adjustment of lateral thoracic supports, and the backrest can achieve 2” of midline backrest offset.

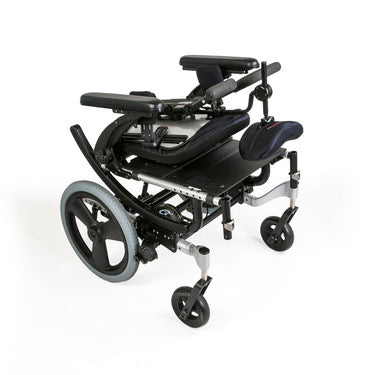

      The MONO Backrest System offers an optional dynamic function, 35° angle adjustment, and folds forward for easy transport.

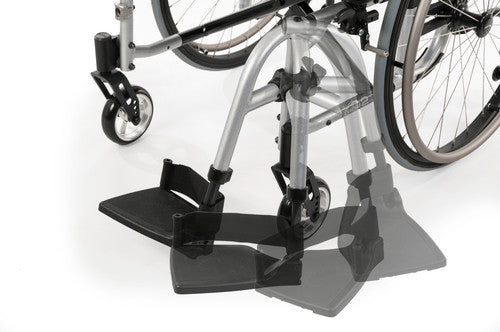

      Intuitive Hanger Designs

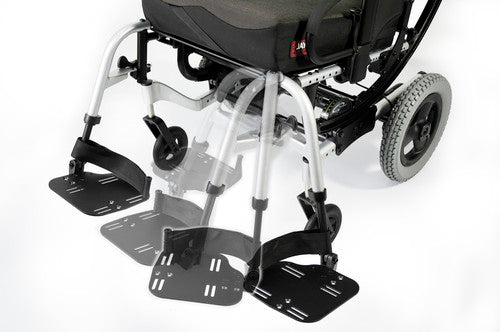

      The IRIS's new swing-in/swing-out hanger design features an intuitive bi-directional release lever that follows your hand's movement. A tapered locking mechanism prevents the hanger from loosening over time.

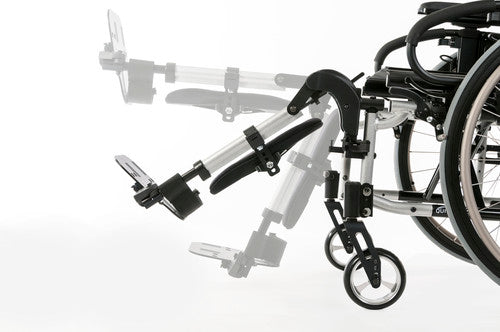

      The Elevating/Articulating Legrest includes 2" of height adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated. The improved latch mechanism allows swapping between swing-in/swing-out hangers and ELR/ALR without additional hardware.



      Model Number

      EIZ4-2

      Frame Style

      Rotation-in-Space

      HCPCS Code

      E1161

      Wheelchair Weight

      39 lbs.

      Frame Material

      Aluminum

      User Weight Capacity

      Standard: 300 lbs.

      Heavy Duty: 400 lbs.

      Transit Approved

      Yes

      Shipping Dimensions

      Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H

      Palletized: 47" L x 40" W x 54" H

      Average Shipping Weight

      Boxed: 90 lbs. and 15 lbs.

      Palletized: 150 lbs.

      FRAME AND FEATURE MEASUREMENTS

      Seat Widths

      14" to 22"

      Seat Depths

      14" to 22"

      Frame Angle

      N/A

      Front Seat-to-Floor Height

      12.5" to 19"

      Rear Seat-to-Floor Height

      12.5" to 19"

      Lower Leg Length Setting

      N/A

      Back Height

      15" to 21" or 18" to 24"

      Angle Adjustable Backrest Adjustment Range

      -30° to 5°

      Camber

      Center of Gravity (COG) Adjustment

      N/A

      Tilt Range

      40°

      55°

      OPTIONS AND ACCESSORIES

      Frame Type

      Frame Options:

      Standard

      Heavy Duty

      Vent/Battery Base Tray

      Contrature Seat Frame

      Frame Struts:

      Fixed

      Width Adjustable

      Special Packages

      N/A

      Tilt Release Options

      Foot Release

      Backrest Dual Trigger

      Frame Inset

      N/A

      Caster Wheels

      4" x 1.25" Semi-Pneumatic

      5" x 1" Polyurethane

      5" x 1.5" Semi-Pneumatic

      6" x 1" Polyurethane

      6" x 1.5" Semi Pneumatic

      8" x 1" Polyurethane

      8" x 1.5" Semi-Pneumatic

      8" x 2" Pneumatic

      8" x 2" Pneumatic with Airless Insert

      Caster Options

      N/A

      Hangers

      60° Swing In/Out

      70° Swing In/Out

      80° Swing In/Out

      70° Swing In/Out Front Mount

      80° Swing In/Out Front Mount

      90° Swing In/Out Front Mount

      70° Heavy Duty Front Mount Lift-Off

      80° Heavy Duty Front Mount Lift-Off

      90° Heavy Duty Front Mount Lift-Off

      Elevating Hanger Front Mount

      Articulating

      Elevating

      Contracture

      Footplates

      Composite

      Composite Angle Adjustable

      Adult Angle Adjustable

      Kids Angle Adjustable

      Aluminum

      Platform Flip-up

      Footplate Options

      Neoprene Covers

      Heel Loops

      Toe Loops

      Leg strap

      Extension Tubes

      Axle

      Quick Release

      Threaded

      Axle Plate

      Standard

      One Arm Drive

      Rear Wheel Type

      12" Mag

      16" Mag

      20" Mag / 5 Spoke Mag

      22" Mag / 5 Spoke Mag

      24" Mag / 5 Spoke Mag

      24" Spoke

      Rear Wheel Tire

      Pneumatic

      Pneumatic with Airless Insert

      Full Poly

      Low Poly

      Handrims

      Aluminum Anodized

      Plastic Coated

      Hub Lock

      12" or 16"

      Suspension

      N/A

      Backrest Type

      Fixed

      Height Adjustable

      Reclining

      Dynamic

      Mono Back

      J3

      Back Post Options

      Adjustable Stroller Handles

      Removable Extension

      Backrest Options

      N/A

      Back Upholstery

      J3

      Military Service Patches

      N/A

      Armrests

      Dual Post Height Adjustable

      Dual Post Flip Back

      Dual Post

      Dual Post Flip Back Height Adjustable

      Length Adjustable Locking Flip-Up

      Single Post Height Adjustable

      Adjustable Locking Flip-up

      Arm Pads

      Desk Length - Classic

      Desk Length - Contour

      Full Length - Classic

      Full Length - Contour

      Foam

      Ergo armpad

      Wheel Locks

      Push to Lock

      Attendant (Foot Lock)

      Optional Extension Handle

      Seating

      Standard Seat Pan

      Drop Seat Pan

      JAY Cushion

      Power Assist

      N/A

      Grade Aid

      N/A

      Anti-Tips

      Rear Anti-tips

      Side Guards

      Plastic Regular

      Plastic Kids

      Side Guard Options

      N/A

      Positioning Belts

      1.5" Auto Buckle

      2" Aircraft Buckle

      2" Padded Aircraft Buckle

      2" Dual Pull Squeeze Pad

      Tray Tables

      Small

      Medium

      Large

      X-Large

      Accessories

      Quickie Backpack

      Seat Pouch

      Caddy

      O2 Holder

      IV Pole

      Clear Spoke Guards

      Black Spoke Guards

      Vent Tray for LTV Ventilators

      Vent Tray for Trilogy Ventilators

      JAY Lower Extremity S/A Support

      Frame Color Options

      Aztec Gold

      Black

      Black Cherry

      Black Opal

      Blue Opal

      Candy Blue

      Candy Purple

      Candy Red

      Electric Blue

      Evergreen

      Glow

      Green Apple

      Hot Sparkle Pink

      Mauve Pink

      Rootbeer

      Sparkle Silver

      Sunrise Orange

      Titanium Color Paint

      Yellow

      Matte Black

      Matte Black Cherry

      Matte Electric Blue

      Matte Evergreen

      Matte Purple

      Desert Camouflage

      Mossy Oak Camouflage

      Stars & Stripes

      Zebra

      Anodized Color Options

      N/A



      As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
