Permobil
ROHO Quadtro Select Cushion (Low, Medium, High Profile)
EXISTING STOCK FOR CERTAIN SIZES, PRE-ORDER: 4-6 WEEKS
Features
- Available in 3 different cell heights: Low Profile (2.25")/ Mid Profile (3.25")/High Profile (4.25")
- Adjustable to the shape and weight of the user
- Provides up to approximately 4cm (Low & Mid Profile) / 9cm (High Profile) of immersion
- Adds little weight to the entire mobility system
- Cushion can be easily cleaned and disinfected
- Adjustable to changes in the user's position over time
- Cover is machine washable and can be disinfected
- Neoprene cushion can be patched or repaired to extend use
- Hydrostatic distribution of load across the entire contact area
The product comes standard with:
- Repair kit
- Operation manual
- Hand inflation pump
- Two-way stretch cover
Is this cushion right for you? Click here to find out
Specifications

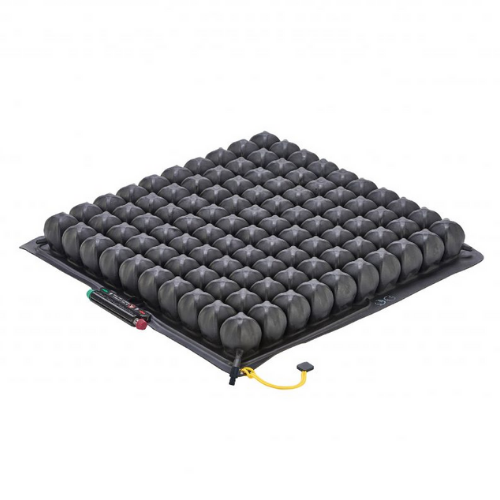

Low Profile (2.25")
|
SKU |
Fit Into Seat Width x Seat Depth |
|
QS77LPC |
13” x 13” |
|
QS78LPC |
13” x 14”-15” |
|
QS79LPC |
13” x 16”-17” |
|
QS87LPC |
14”-15” x 13” |
|
QS88LPC |
14”-15” x 14”-15” |
|
QS89LPC |
14”-15” x 16”-17” |
|
QS810LPC |
14”-15” x 18”-19” |
|
QS98LPC |
16”-17” x 14”-15” |
|
QS99LPC |
16”-17” x 16”-17” |
|
QS910LPC |
16”-17” x 18”-19” |
|
QS109LPC |
18”-19” x 18”-19” |

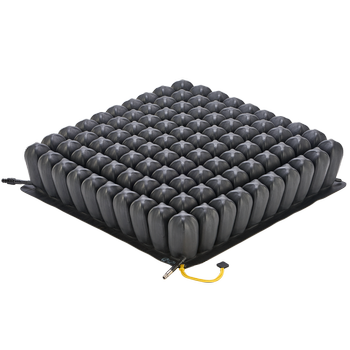

Mid Profile (3.25")
|
SKU |
Fit Into Seat Width x Seat Depth |
|
QS77MPC |
13” x 13” |
|
QS78MPC |
13” x 14”-15” |
|
QS79MPC |
13” x 16”-17” |
|
QS87MPC |
14”-15” x 13” |
|
QS88MPC |
14”-15” x 14”-15” |
|
QS89MPC |
14”-15” x 16”-17” |
|
QS810MPC |
14”-15” x 18”-19” |
|
QS98MPC |
16”-17” x 14”-15” |
|
QS99MPC |
16”-17” x 16”-17” |
|
QS910MPC |
16”-17” x 18”-19” |
|
QS109MPC |
18”-19” x 18”-19” |

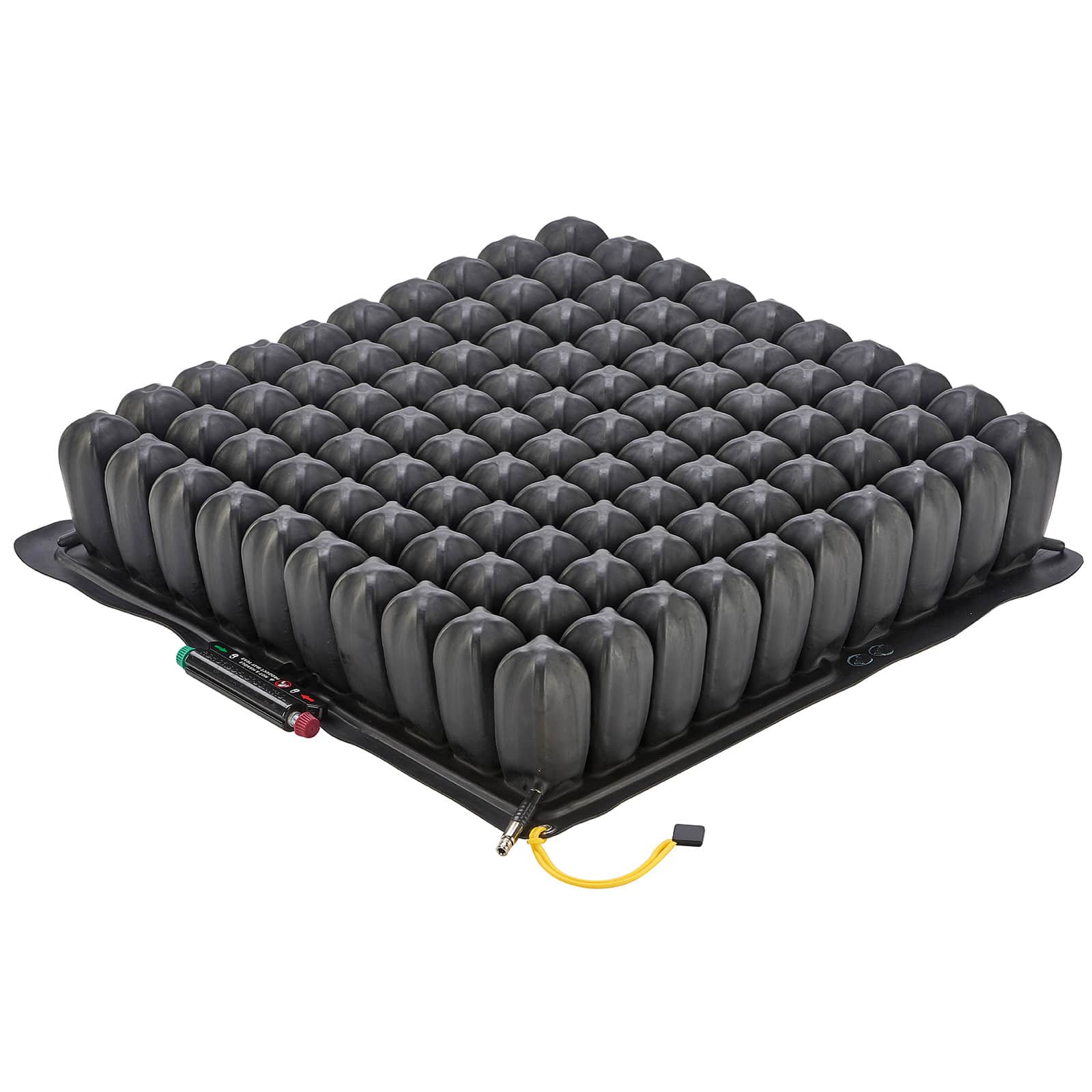

High Profile (4.25")
|
SKU |
Fit Into Seat Width x Seat Depth |
|
QS77C |
13” x 13” |
|
QS78C |
13” x 14”-15” |
|
QS79C |
13” x 16”-17” |
|
QS87C |
14”-15” x 13” |
|
QS88C |
14”-15” x 14”-15” |
|
QS89C |
14”-15” x 16”-17” |
|
QS810C |
14”-15” x 18”-19” |
|
QS98C |
16”-17” x 14”-15” |
|
QS99C |
16”-17” x 16”-17” |
|
QS910C |
16”-17” x 18”-19” |
|
QS109C |
18”-19” x 18”-19” |
|
Weight |
Approximately 1.5kg |
|
Weight Limit |
Unlimited (Cushion must be properly sized to the individual.) |
|
Warranty |
24-Month Limited Warranty *Against manufacturing defects |
Size Chart: Recommended sizing for various chair sizes
*Wheels with max. camber or arms with fabric clothing guards may require a narrower cushion size for a proper fit.
*Not all sizes are available for all cushion products.
|
Chair Size (Width x Depth) |
Recommended # of Cells |
Chair Size (Width x Depth) |
Recommended # of Cells |
|
12” x 12” (30 x 30cm) |
6 wide x 6 deep |
16” x 18” (41 x 46cm) |
9 wide x 10 deep |
|
12” x 13” (30 x 33cm) |
6 wide x 7 deep |
16” x 20” (41 x 51cm) |
9 wide x 11 deep |
|
13” x 13” (33 x 33cm) |
7 wide x 7 deep |
18” x 15” (46 x 38cm) |
10 wide x 8 deep |
|
14” x 14” (36 x 36cm) |
8 wide x 8 deep |
18” x 16” (46 x 41cm) |
10 wide x 9 deep |
|
13” x 15” (33 x 38cm) |
7 wide x 8 deep |
18” x 18” (46 x 46cm) |
10 wide x 10 deep |
|
13” x 16” (33 x 41cm) |
7 wide x 9 deep |
18” x 20” (46 x 51cm) |
10 wide x 11 deep |
|
14” x 16” (36 x 41cm) |
8 wide x 9 deep |
20” x 16” (51 x 41cm) |
11 wide x 9 deep |
|
15” x 13” (38 x 33cm) |
8 wide x 7 deep |
20” x 18” (51 x 46cm) |
11 wide x 10 deep |
|
15” x 15” (38 x 38cm) |
8 wide x 8 deep |
20” x 20” (51 x 51cm) |
11 wide x 11 deep |
|
15” x 16” (38 x 41cm) |
8 wide x 9 deep |
22” x 18” (56 x 45cm) |
12 wide x 10 deep |
|
15” x 18” (38 x 46cm) |
8 wide x 10 deep |
24” x 18” (61 x 46cm) |
13 wide x 10 deep |
|
16” x 15” (41 x 38cm) |
9 wide x 8 deep |
24” x 20” (61 x 51cm) |
13 wide x 11 deep |
|
16” x 16” (41 x 41cm) |
9 wide x 9 deep |
26” x 20” (66 x 51cm) |
14 wide x 11 deep |
|
17” x 17” (43 x 43cm) |
9 wide x 9 deep |
28” x 20” (71 x 51cm) |
15 wide x 11 deep |
