Permobil

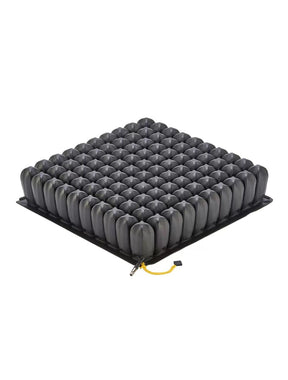

ROHO Single Compartment Cushion (Low, Medium & High Profile)
EXISTING STOCK FOR CERTAIN SIZES, PRE-ORDER: 4-6 WEEKS
The cushion must be properly sized for the individual.
Features
- Available in 3 different cell heights: Low Profile (2.25")/ Mid Profile (3.25")/High Profile (4.25")
- Adjustable to shape and weight
- Adds little weight to the entire mobility system
- The cushion can be easily cleaned and disinfected
- Cover is machine washable and can be disinfected
- Adjustable to changes in an individual's position over time
- Provides up to approximately 4cm (Low Profile) / 9cm (Mid & High Profile) of immersion
- The neoprene cushion can be patched or repaired to extend its use
- Hydrostatic distribution of load across the entire contact area
The product comes standard with:
- Repair kit
- Cushion cover
- Operation manual
- Hand inflation pump
Is this cushion right for you? Click here to find out
Specifications
Low Profile (2.25")
|
SKU |
Fit Into Seat Width x Seat Depth |
|
1R87LPC |
14”-15” x 13” |
|
1R88LPC |
14”-15” x 14”-15” |
|
1R89LPC |
14”-15” x 16”-17” |
|
1R810LPC |
14”-15” x 18”-19” |
|
1R98LPC |
16”-17” x 14”-15” |
|
1R99LPC |
16”-17” x 16”-17” |
|
1R910LPC |
16”-17” x 18”-19” |
|
1R109LPC |
18”-19” x 16”-17” |
|
1R1010LPC |
18”-19” x 18”-19” |
Mid Profile (3.25")
|
SKU |
Fit Into Seat Width x Seat Depth |
|
1R77MPC |
13” x 13” |
|
1R78MPC |
13” x 14”-15” |
|
1R88MPC |
14”-15” x 14”-15” |
|
1R89MPC |
14”-15” x 16”-17” |
|
1R99MPC |
16”-17” x 16”-17” |
|
1R109MPC |
18”-19” x 16”-17” |
|
1R1010MPC |
18”-19” x 18”-19” |
|
1R1110MPC |
20”-21” x 18”-19” |
|
1R1111MPC |
20”-21” x 20”-21” |
High Profile (4.25")
|
SKU |
Fit Into Seat Width x Seat Depth |
|
1R87C |
14”-15” x 13” |
|
1R88C |
14”-15” x 14”-15” |
|
1R89C |
14”-15” x 16”-17” |
|
1R810C |
14”-15” x 18”-19” |
|
1R98C |
16”-17” x 14”-15” |
|
1R99C |
16”-17” x 16”-17” |
|
1R910C |
16”-17” x 18”-19” |
|
1R109C |
18”-19” x 16”-17” |
|
1R1010C |
18”-19” x 18”-19” |
|
Construction |
Flame-resistant, black neoprene (not made with natural rubber latex) |
|
Includes |
Single Compartment Cushion, two-way stretch cover, hand inflation pump, repair kit and operation instructions |
|
Width |
Low Profile: 11.5"- 23.5" (29 - 59.5cm) Mid profile: 3.25"- 20" (33.5 - 50.5cm) High Profile: 11.5"- 25" (29 - 63.5cm) |
|
Weight |
Varies by size, approximately:
Low Profile: 2.5 lbs (1.1kg) Mid Profile: 3 lbs (1.4kg) High profile: 3.25 lbs (1.5kg) |
|
Weight Limit |
Unlimited, however, the cushion must be properly sized for the individual. |
|
Warranty |
24-Month Limited Warranty *Against manufacturing defects |
Size Chart: Recommended sizing for various chair sizes
*Wheels with max. camber or arms with fabric clothing guards may require a narrower cushion size for a proper fit.
*Not all sizes are available for all cushion products.
|
Chair Size (Width x Depth) |
Recommended # of Cells |
Chair Size (Width x Depth) |
Recommended # of Cells |
|
12” x 12” (30 x 30cm) |
6 wide x 6 deep |
16” x 18” (41 x 46cm) |
9 wide x 10 deep |
|
12” x 13” (30 x 33cm) |
6 wide x 7 deep |
16” x 20” (41 x 51cm) |
9 wide x 11 deep |
|
13” x 13” (33 x 33cm) |
7 wide x 7 deep |
18” x 15” (46 x 38cm) |
10 wide x 8 deep |
|
14” x 14” (36 x 36cm) |
8 wide x 8 deep |
18” x 16” (46 x 41cm) |
10 wide x 9 deep |
|
13” x 15” (33 x 38cm) |
7 wide x 8 deep |
18” x 18” (46 x 46cm) |
10 wide x 10 deep |
|
13” x 16” (33 x 41cm) |
7 wide x 9 deep |
18” x 20” (46 x 51cm) |
10 wide x 11 deep |
|
14” x 16” (36 x 41cm) |
8 wide x 9 deep |
20” x 16” (51 x 41cm) |
11 wide x 9 deep |
|
15” x 13” (38 x 33cm) |
8 wide x 7 deep |
20” x 18” (51 x 46cm) |
11 wide x 10 deep |
|
15” x 15” (38 x 38cm) |
8 wide x 8 deep |
20” x 20” (51 x 51cm) |
11 wide x 11 deep |
|
15” x 16” (38 x 41cm) |
8 wide x 9 deep |
22” x 18” (56 x 45cm) |
12 wide x 10 deep |
|
15” x 18” (38 x 46cm) |
8 wide x 10 deep |
24” x 18” (61 x 46cm) |
13 wide x 10 deep |
|
16” x 15” (41 x 38cm) |
9 wide x 8 deep |
24” x 20” (61 x 51cm) |
13 wide x 11 deep |
|
16” x 16” (41 x 41cm) |
9 wide x 9 deep |
26” x 20” (66 x 51cm) |
14 wide x 11 deep |
|
17” x 17” (43 x 43cm) |
9 wide x 9 deep |
28” x 20” (71 x 51cm) |
15 wide x 11 deep |
