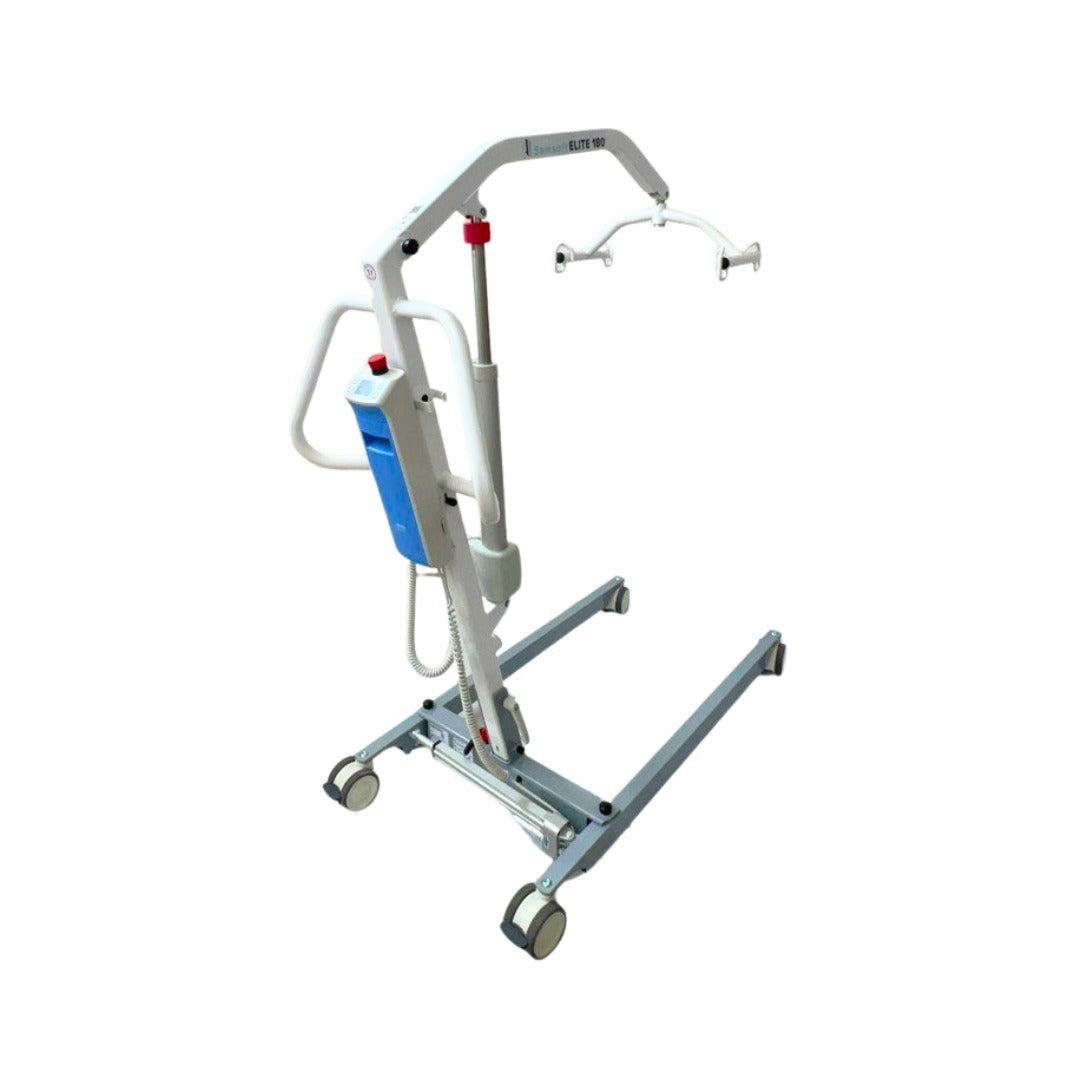

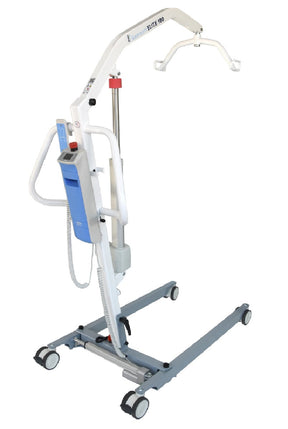

Samsoft Elite 180 Foldable Hoist with Electric Base
Refer to Specifications for Hoist Sling Size:Large
Staircase:No stairs
Quantity:
Click here to purchase Sling Size XL.
Features
- The 180kg max capacity complies with NHS tender requirements
- Compact design for easy transportation and storage
- Robust design and construction

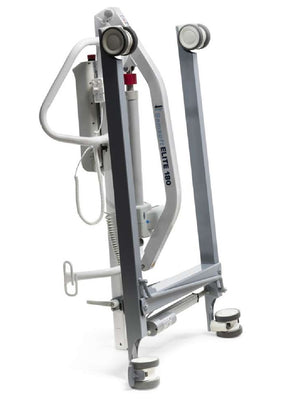

- Innovative, tool-free, easy-use folding mechanism facilitates stress-free single-handed care
- Large multi-position, ergonomic push handle offering a variety of comfortable positions for users of different heights
- Innovative magnetic spreader bar lock is easy to use for safe transportation
- Electrically operated lifting to reduce physical strain on caregivers
- Electric base control allows caregivers to position the base at any opening angle
- Provides effortless transfers from floor to higher level surfaces
- Large braked castors allow for easy manoeuvring around furniture
- Cleverly designed curved spreader bar allows carers to maintain eye contact and reduces the risk of contact with the patient’s head
- User friendly magnetic handset for convenient and flexible use
- Comes with hoist sling

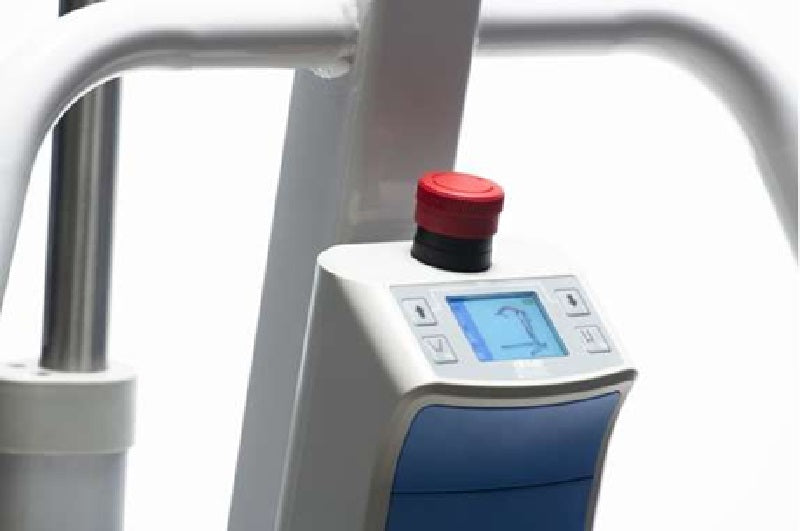

- LCD screen for monitoring purposes
- Emergency stop and manual lowering functions
- Lightweight 3.25AH Lithium-ion battery with a longer lifespan
Specifications
Hoist
| Lifting Range: | 21" - 75" (55 – 190 cm) |
| Chassis Height: | 4.5" (11.4 cm) |
| Overall Height: | 54” (137.2 cm) |
| Overall Chassis Length: | 46" (117 cm) |
| Overall Chassis Width: | 24.5" (62.2 cm) |
| Inner Chassis Width: | 21.2” – 39.8” (53.8 – 101 cm) |
| Outer Chassis Width: | 24.5” – 45” (62.2 – 114.3 cm) |
| Weight: | 41.8kg |
| Max Weight Capacity: | 180 kg |
| Folded Dimension: | 49.6” x 25.6” x 16.7” (126 x 65 x 42.5 cm) |
| Warranty: | 24 months warranty on frame, 12 months on actuator, control box & battery |
| Country of Origin: | France |

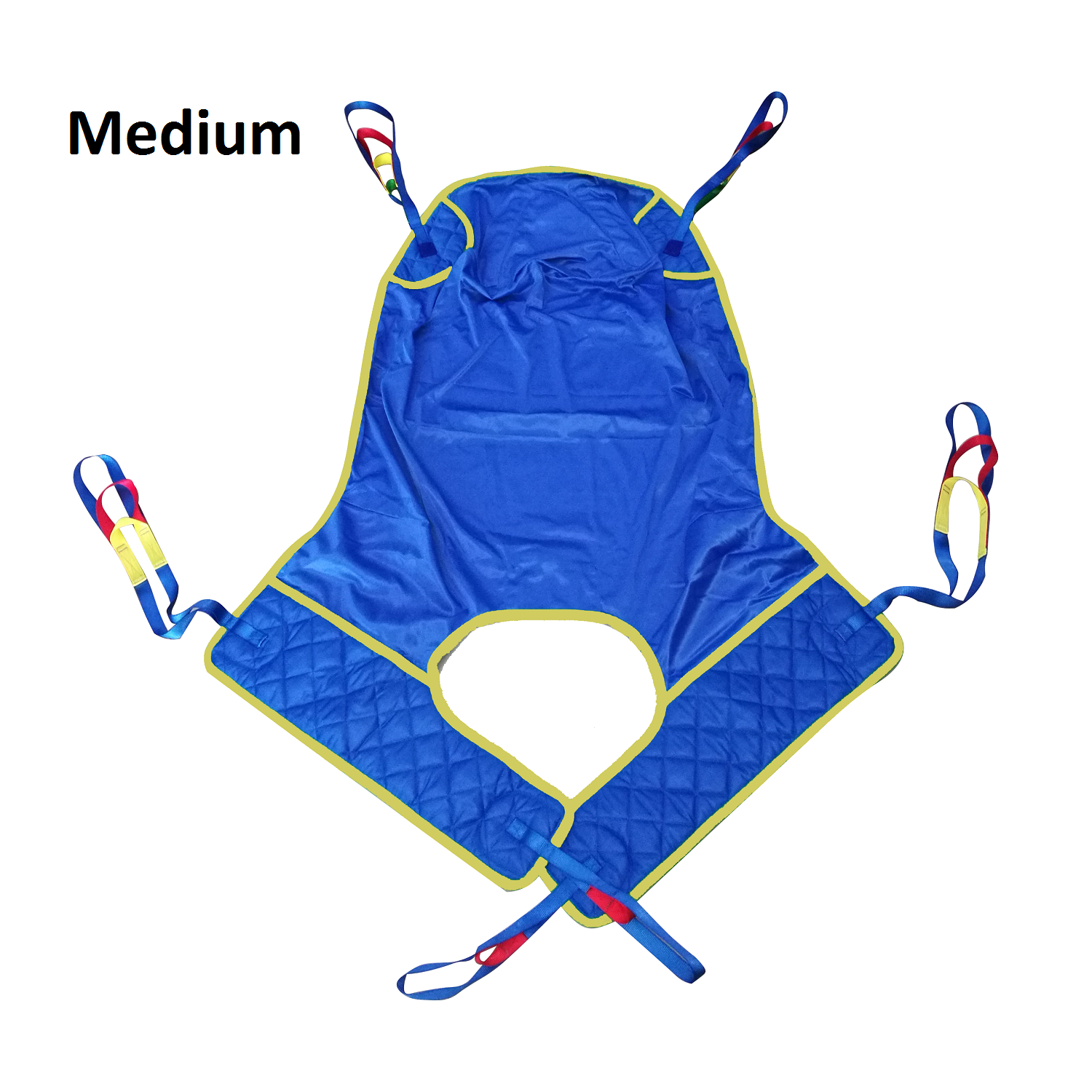

Hoist Sling
| Chest | Height | Sling Size | Colour |
| 27" - 36" 68cm - 91cm |
4'3" - 4'11" 129cm - 150cm |
Small | Red |
| 31” - 41” 79cm - 104cm |
4´10”- 5´6” 147cm - 168cm |
Medium | Yellow |
| 40” - 51” 102cm -129cm |
5'5” - 5´10” 165cm - 178cm |
Large | Green |
| 49" - 59" 124cm - 150cm |
5'7" - 6" 170cm - 183cm |
X-Large | Blue |
Downloads
Samsoft Elite 180 Foldable Hoist with Electric Base Brochure
