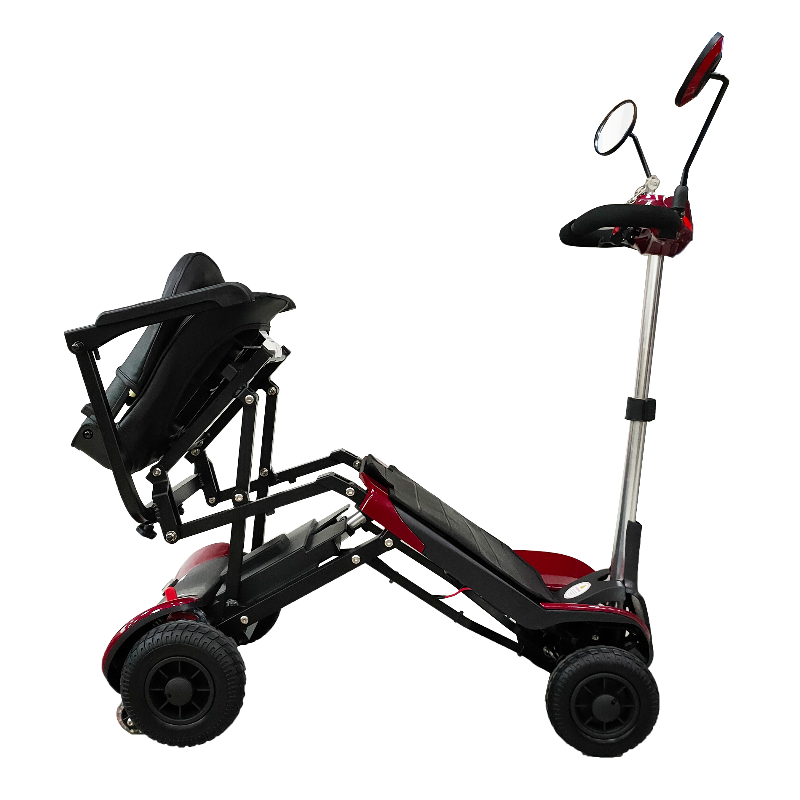

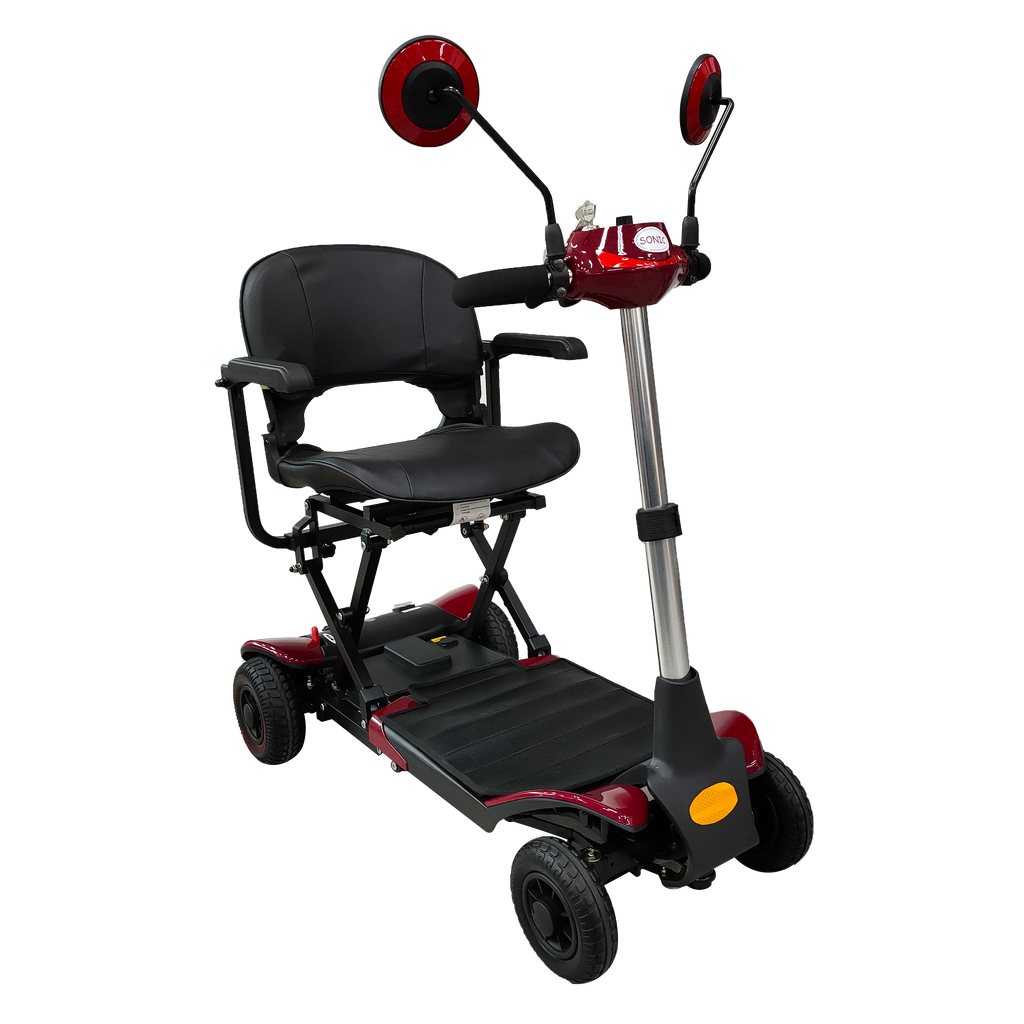

Sonic Auto Folding Mobility Scooter

Maximum Weight Capacity:

120kg (265 lbs)

Drive Wheels:

Rear

Maximum Speed:

Up to 6km/h (3.7mph)

Operating Range:

20 km (12.4miles)

Ground Clearance to Center Deck:

3.3" (8.5cm)

Ground Clearance to Transaxle/Motor:

1.5" (4cm)

Turning Radius:

47" (120cm)

Climbing Angle:

8°

Batteries Type:

2 x 6AH, 24V

Freewheel Mode:

Yes

Electronic Speed Control:

Yes

Electro-Mechanical Brakes:

Yes

Charger:

1.5A, off board

Controller:

45Amp

Overall Length:

39.7" (101cm)

Overall Width:

20" (51cm)

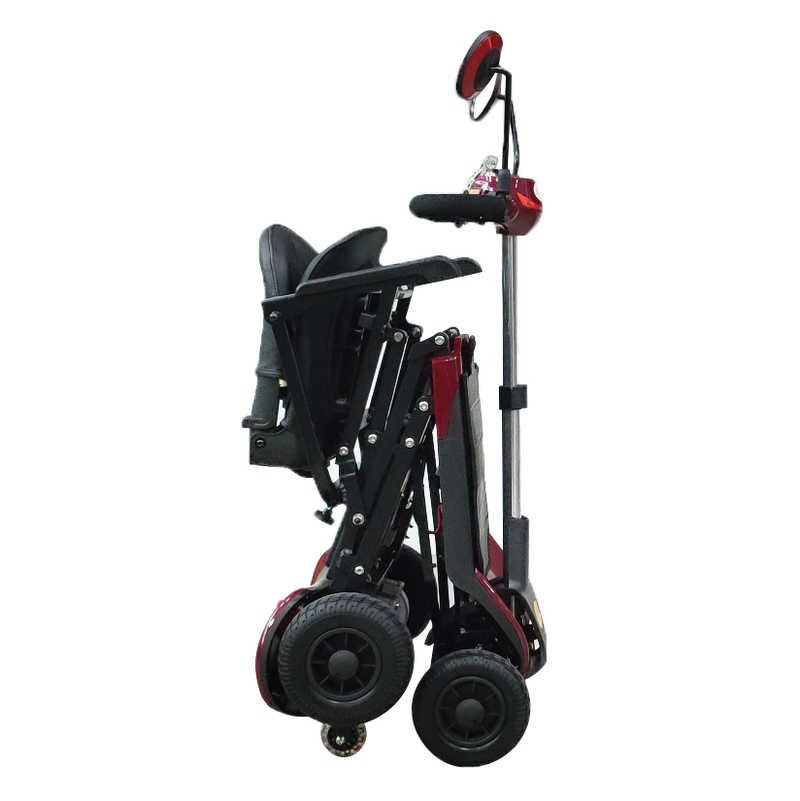

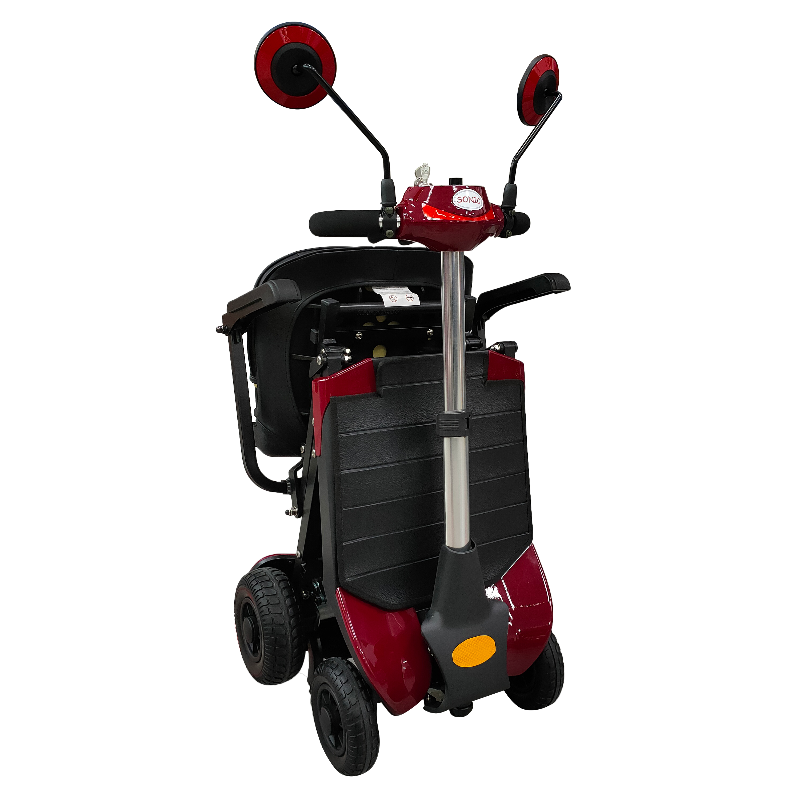

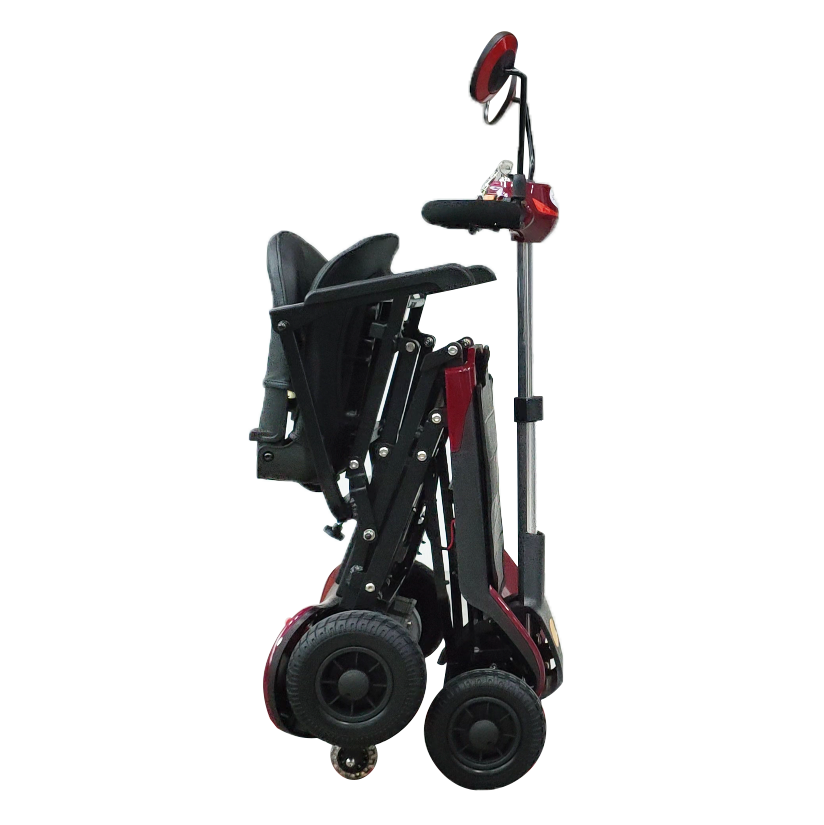

Folded Dimension (WxDxH):

21.5”x17”x31.5”
54.6 x 43 x 80cm

Wheels

Solid, low profile

Front:

7” x 2”

Rear:

8" x 3”

Rear anti-tippers:

2.5”

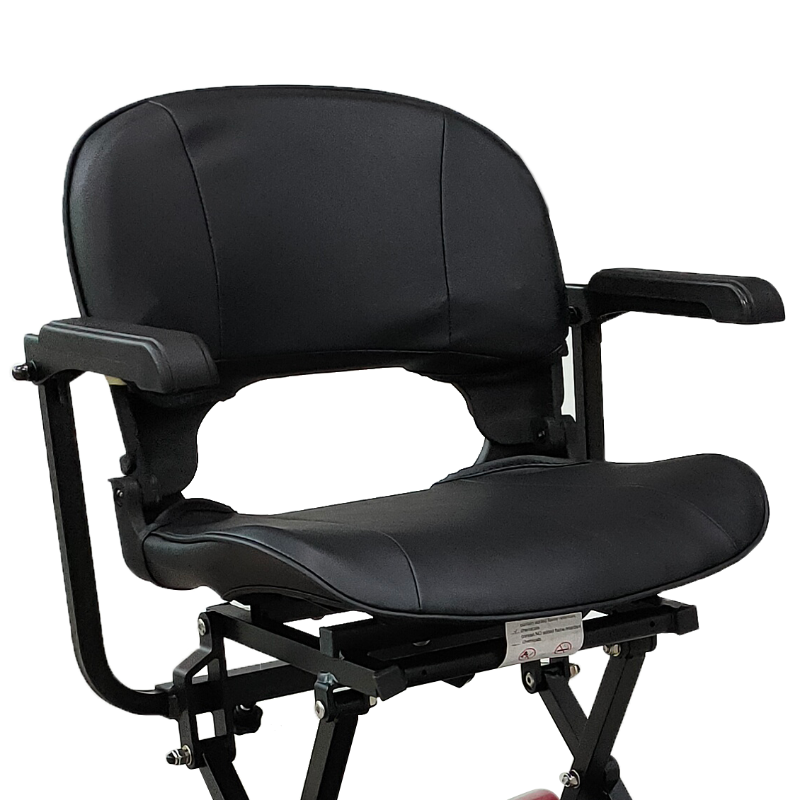

Standard Seating

Width x Depth:

17" x 15" (43cm x 38cm)

Seat Back Height

14" (35.6cm)

Floor to Seat Height:

22" (56cm)

Floor Board to Seat Height:

15” (38cm)

Total Weight of Scooter:

29kg (64 lbs)

Standard Colour:

Red

Warranty Period:

12 months for frame & mechanism.
6 months for batteries.
Against manufacturing defects
