Overview

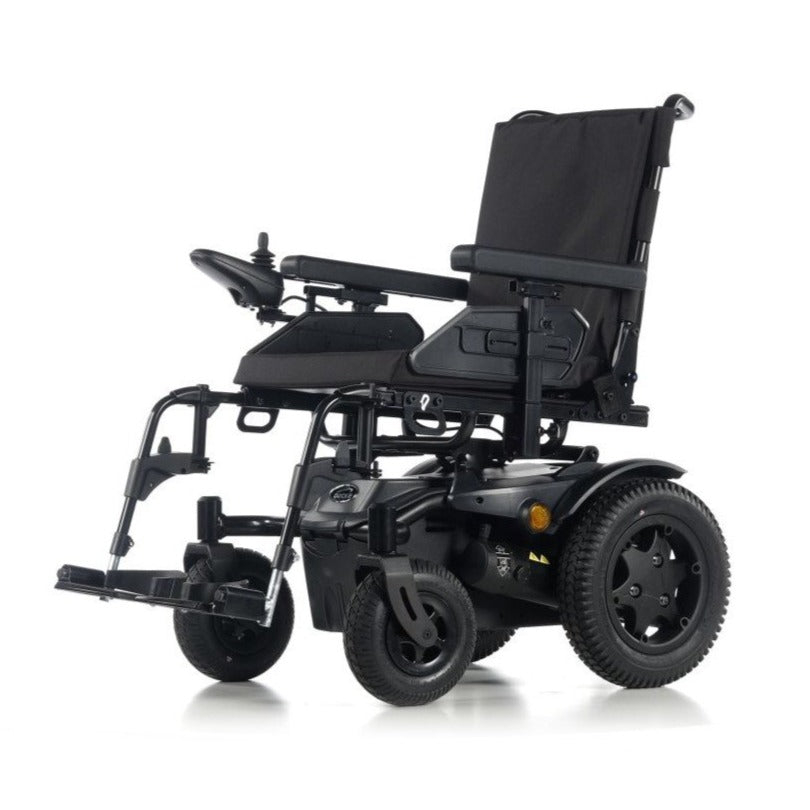

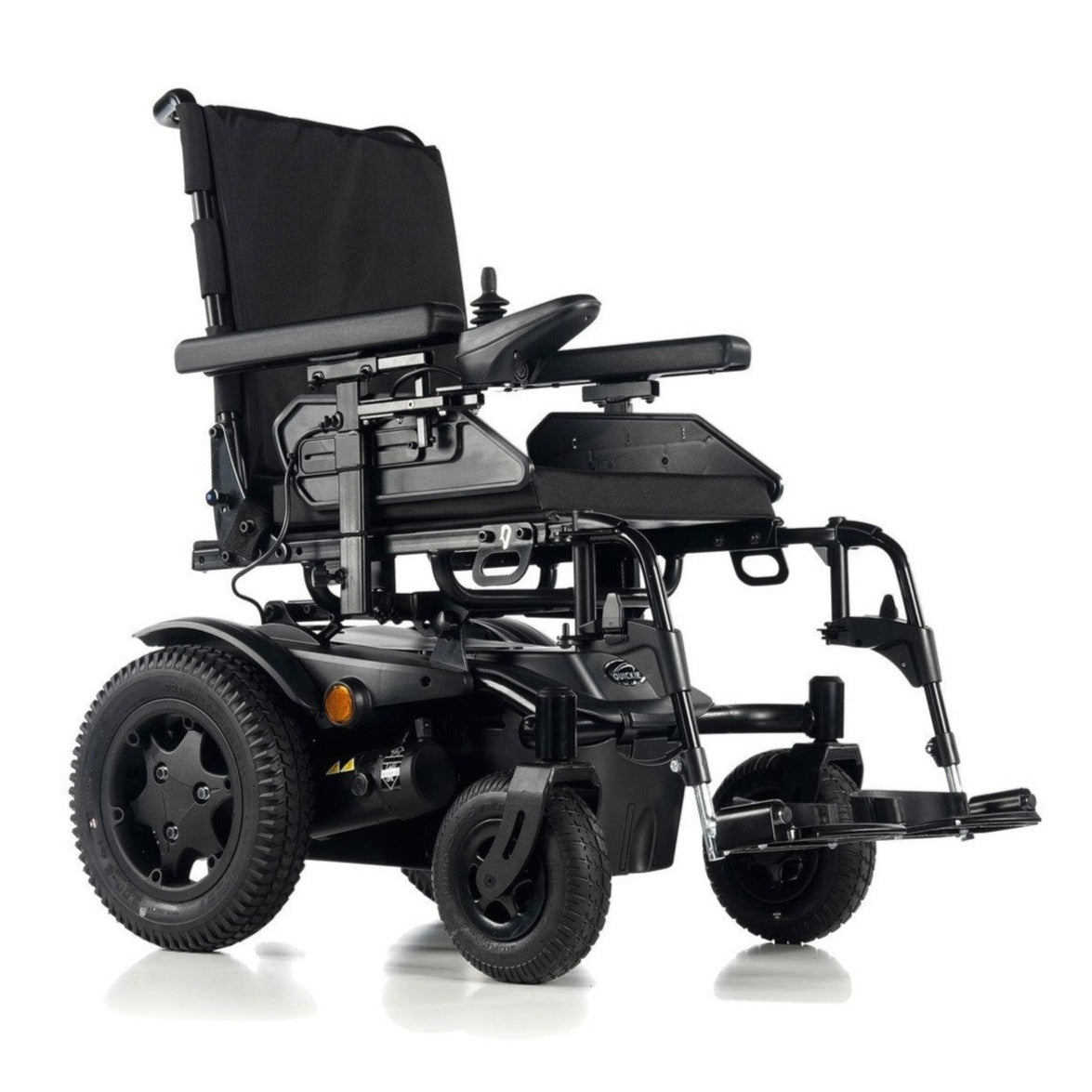

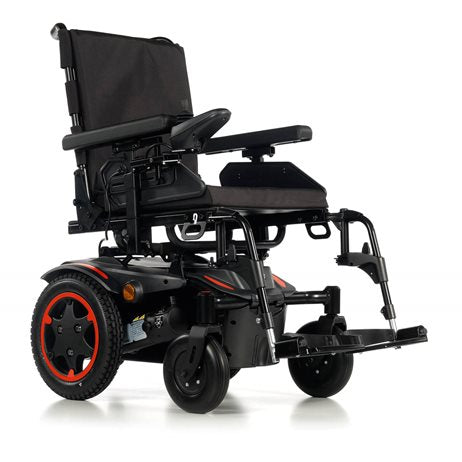

Q200 R Rear-Wheel Powered Wheelchair
The Q200 R is the next level power wheelchair perfect for outdoor use, whilst still providing a great indoor solution.
The ultra-compact indoor / outdoor entry level powerchair.
QUICKIE Q200 R uses an innovative testing method called SMART base technology. This helped us to understand how geometry changes to a drive base can affect performance, creating a precision-measured TRUE indoor/outdoor powerchair.
From SMART base development the Q200 R powerchair boasts a small footprint of 580 mm wide and 1070 mm long, with a 1700 mm turning circle, so navigating even the tightest of spaces is a breeze.
Going out? The Q200 provides greater stability to prevent tipping and is ideal for the taller and larger user, with a max. weight of 136kg. Using the Q200 R it’s no uphill struggle, with its larger castor wheels it can tackle any open-air terrain. The Q200 R provides excellent outdoor performance as it easily manoeuvres through uneven and hilly territory with the ability to tackle hills of up to 8 degrees.
Unbelievably light at 98 kg with a fold down back, the Q200 R is also easy to hoist in and out of your car.
Smart base technology
All indoor/outdoor powered wheelchairs face the same problem... we solved SMART BASE Technology.
Our vision was to create a TRUE indoor/outdoor powerchair with super-tight indoor manoeuvrability and no compromises on outdoor stability and performance. But how do you design such a finely-balanced powerchair?
A large drive-base means difficulty when manoeuvring in tight environments. Too small and it becomes tippy with a loss of traction. With SMART Base Technology we were able to test 100‘s of configurations to find the perfect combination.
The result is the QUICKIE Q200 R. A legitimately compact entry-level powerchair that delivers the very-best traction, stability and even the ability to climb kerbs of up to 100 mm (4“).
THE SMALL POWERCHAIR THAT'S BIG ON GOING OUT
Popping out? The Q200 R is just as at home inside and out. Painstakingly researched, its compact dimensions provide highly-deceptive traction and stability over a variety of terrains, hills and even when tackling kerbs. With a longer length of 1070mm, 580mm width and sporting bigger 14” drive wheels and 9” castors, the Q200 R provides greater stability and traction than its little brother. It’s rugged exterior and extra-muscle comes in useful when riding over uneven terrain.
Don‘t let kerbs get in the way
Need a little assistance climbing obstacles? The Q200 R's low-impact kerb climber will tackle kerbs of up-to 100 mm (4“) at low-speed and even from a standing-start (so your seated position will be maintained whilst transitioning up the kerb).
Never an up-hill-struggle
Indoor/outdoor powerchairs don‘t traditionally cope well with steep gradients - a problem we solved with SMART Base Technology. Precision-testing determined that a 1070 mm base-length on the Q200R provides the best stability to prevent tipping and keep you safe - even when travelling up hills of 8 degrees.
SMART base technology helped to calculate not only the dimensions for a compact base, but also the ideal seated position for maximising traction between the drive-wheel and the ground. Combined with the Q200 R drive-wheel suspension, you‘ll enjoy the kind of safe, smooth and responsive ride that‘s normally expected from a larger powerchair.
The power to get you there
Powered by punchy 55Ah batteries, the Q200 R electric wheelchair loves a spin around town and longer city trips as well as tackling more challenging or hilly terrain. With the stamina to go up to 31 km (19 miles) on a single charge, you‘ll have plenty of time to stop-off for other adventures along the way.
A compact package for easy transportation
The Q200 R powerchair weighs a trim 98 kg, so can be hoisted in and out of your vehicle with ease. Worried about space? With a fully fold-down back and removable legrests/armrests, it‘ll fit snugly in most cars or nicely store away at home.
Ready to roam
Primed for public transport, the intuitive Q200 R powered wheelchair is so compact and manoeuvrable, getting on-and-off trams, buses and trains is a breeze. Prefer to travel by car? The Q200 R can be compactly stored in the boot or used as a seat whilst travelling.
Sit back and relax
The Q200 R seating has been designed to fit you. With plenty of settings and a 5-strap tension adjustable back to meet postural requirements, take comfort in knowing that if your needs change, so can your seat.
Next generation unique technology. Check out new Q700M Series - Tilt / Recline / Standing Powerchair
Specifications
| Seat Width: | 380 - 490 mm (15" - 19") |
| Seat Height: | 470 mm |
| Seat Depth: | 410 - 510 mm (16" - 20") |
| Seat Angle: | from 0°, 3° and 6° |
| Backrest Height: | 500 mm (20") |
| Backrest Angle: | from 0°, 4°, 8° and 12° |
| Side Guard: | from 0-50 mm (0" - 2") |
| Armrest Height: | 230 - 305 mm (9" - 12") |
| Overall Width: | 580 mm (22.5") |
| Overall Length: | 1070 mm (42") |
| Speed: | 6 kph or 10 kph |
| Battery Size: | 55 Ah |
| Max. Range: | 31 km |
| Seat Tilt: | 0° - 6° |
| Turning Diameter: | 1700 mm (67") |
| Max. Safe Slope: | 8° |
| Max Kerb Climb: | 70 mm - 100 mm (with Kerb Climber) |
| Electronics: | VR2 |
| Min. Wheelchair Weight: | from 98 kg (incl. 55 Ah batteries) |
| Max. User Weight: | 136 kg |
| Colours: | 4 colours: red, blue, green, black (subject to availability) |
| Warranty: | 2 years on frame, 2 years on components, 1 year on battery |
| Country of Origin: | Europe |
