Description
- Overview
- Specifications
• Lightweight aluminium frame
• Motor operation mode
• Double crossbar frame enhances durability and stability
•
Height adjustable contoured armrest

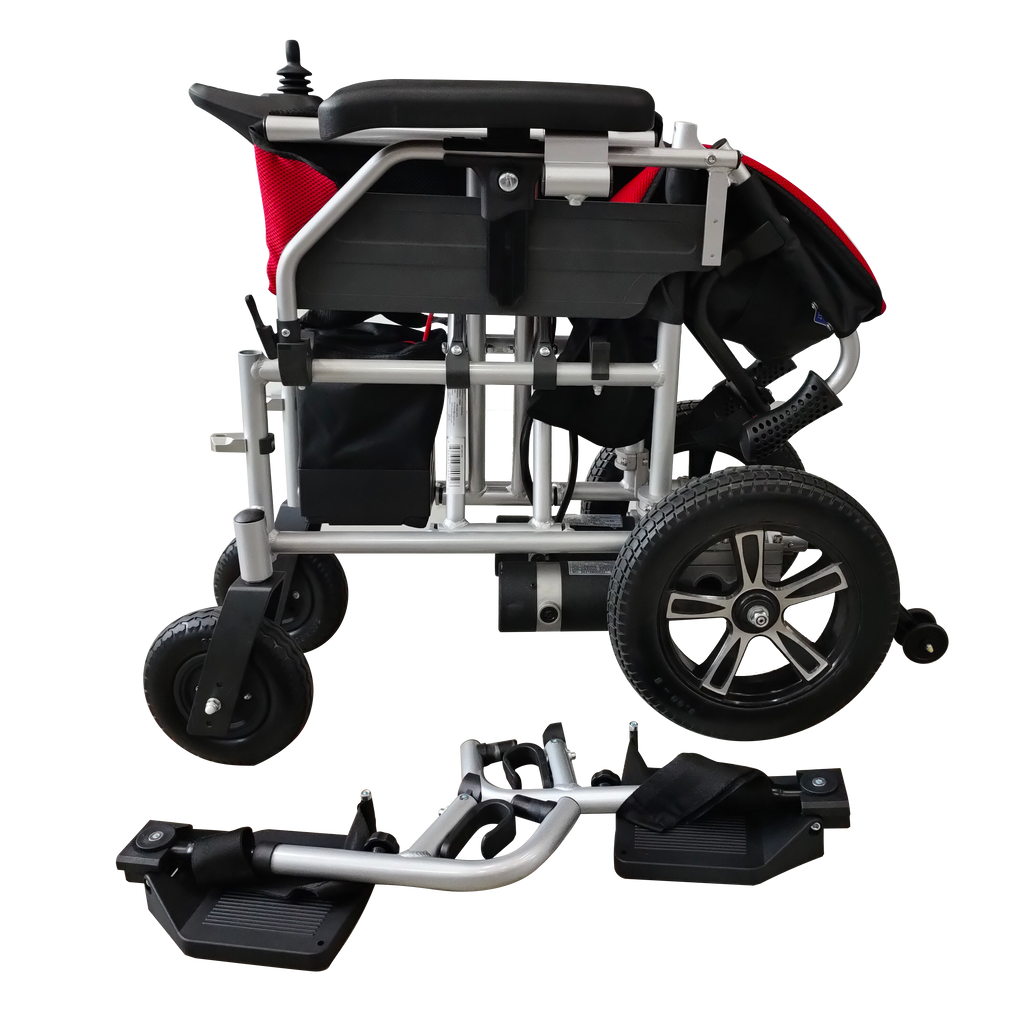

• Fold down backrest for easy storage and transportation
• Easily folded without removing battery
• Comes with battery holder for stable performance
• Detachable footrest comes with heel strap
•
Tension back for better seating posture
• Anti-tippers to prevent from falling backward
• Stabiliser bar at the back of wheelchair to enhance rigidness
• Comes with safety belt
• Battery Size: 24V x 17AH or 24V x 29AH
• Range: Approximate 25km (17AH) or 35km (29AH)
• Charger: 4A charger
• Motor Size: 250W
• Brake: Electromagnetic Brake

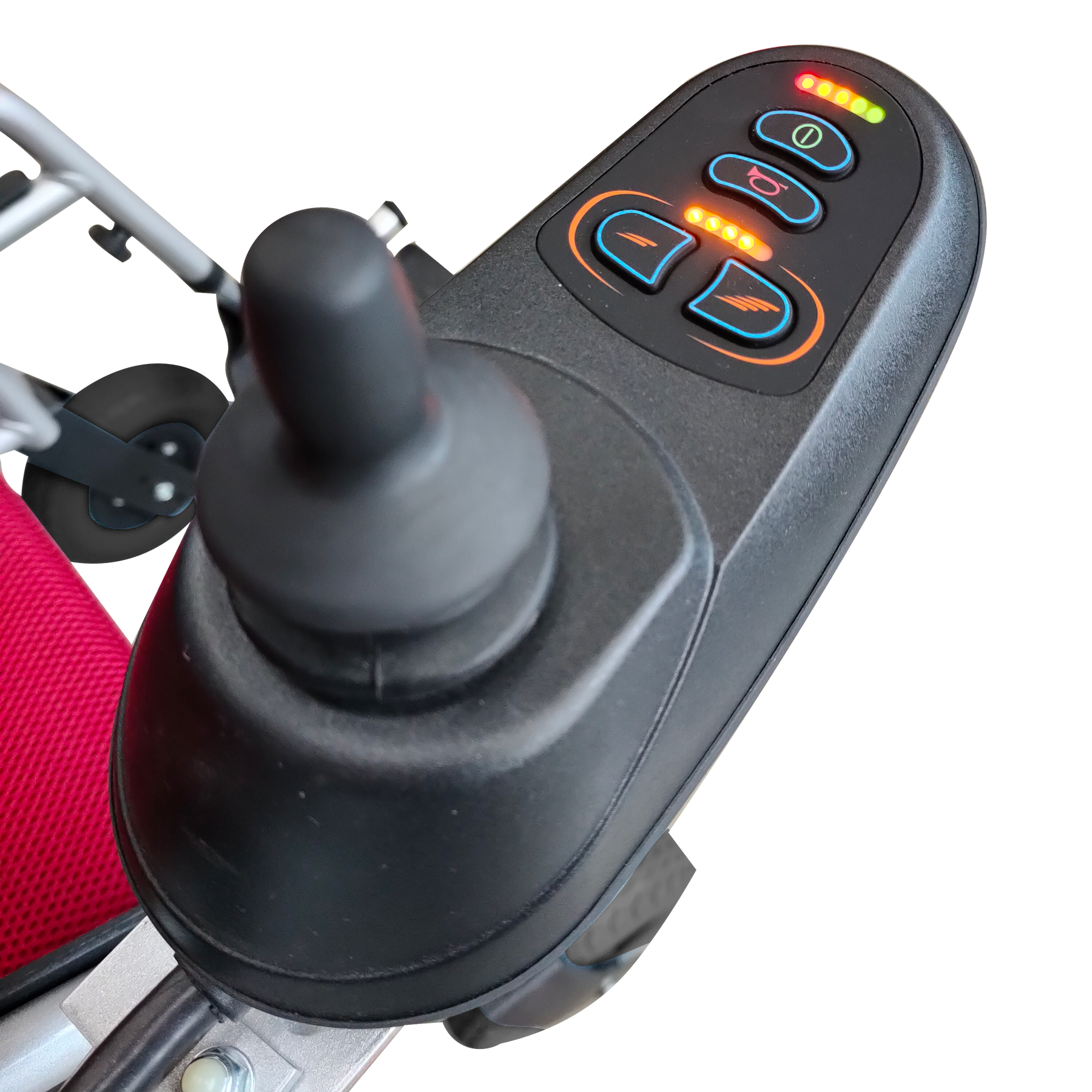

• Controller: PG New VSI 50A
• Climbing angle: 8°
• Maximum speed: 8 km/h
• Turning Radius: 33”
| Seat Width: | 16" / 18" |
| Seat Depth: | 16" |
| Front Seat Height: | 20" |
| Rear Seat Height: | 19" |
| Back Height: | 16.5" |
| Rear Wheel: | 12"x2.5" |
| Front Wheel: | 8"x2" |
| Overall Width: | 23" / 25" |
| Overall Depth: | 45" |
| Overall Height: | 37.5" |
| Seat to Armrest Height: | 9"-12" |
| Range: | 25 km (17AH) 35 km (29AH) |
| Weight: | 37.8kg |
| Weight Capacity: | 136kg |
| Warranty: | 1 year on frame |
| Country of Origin: | China |
