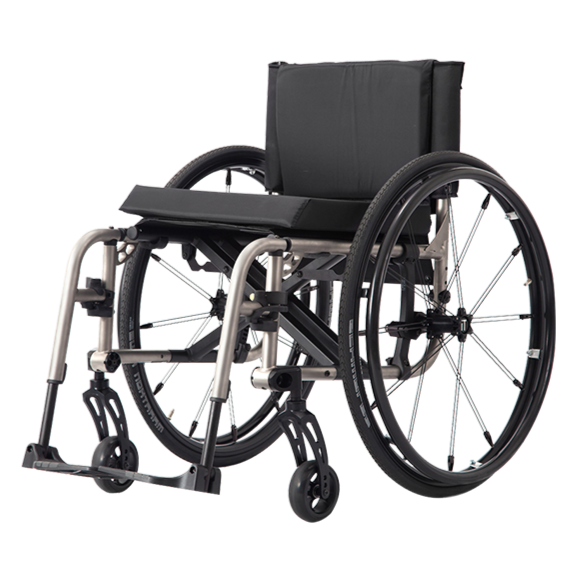

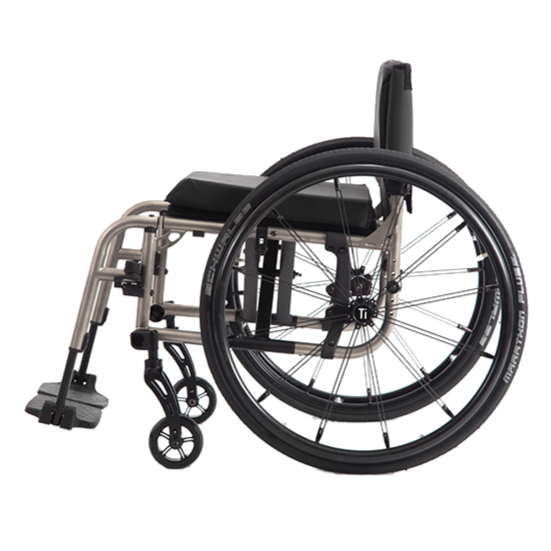

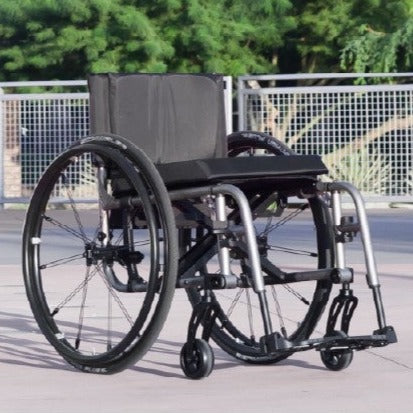

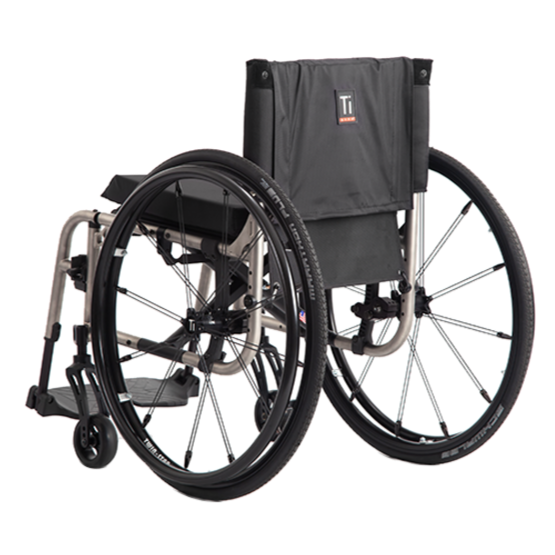

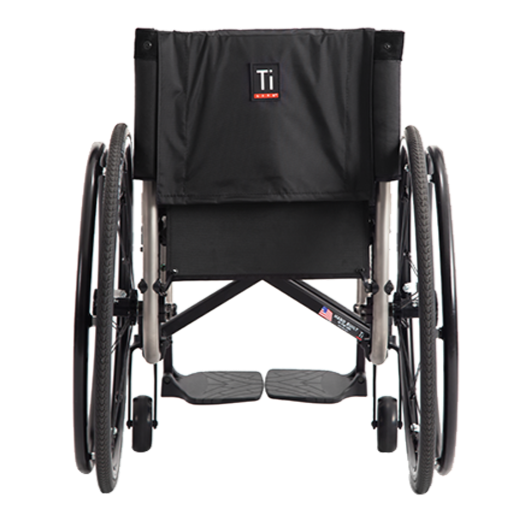

Tilite 2GX Lightweight Folding Wheelchair
Product DescriptionTitanium performance The 2GX combines the advantages of a modular folding frame with the high strength and vibration dampening characteristics of titanium. Add full adjustability, and the 2GX is designed to empower – no matter where you choose to roll.
Modular Design The modular frame design of the 2GX facilitates configurability in the field. This includes adding aftermarket seating systems, switching fixed and swing away front ends, and growing chair width and depth to meet changing customer needs.
Full Adjustability The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine-tune the fit of your wheelchair because you are not limited to a series of pre-set holes.
Folding Frame The 2GX folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation. These features are “must have” advantages for anyone who chooses a folding chair.
Titanium Titanium absorbs vibration, won’t break and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.
2GX Innovation Modular Design of the 2GX facilitates configurability in the field. This includes: - Adding aftermarket seating systems.
- Switching fixed and swing away front ends.
- Growing chair width and depth.
The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine-tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points in today's wheelchairs by reducing the number of holes in the frame.
Improved Speedloader Design makes for easier, more durable adjustments and two positions (forward/ backward) for caster positioning.
Redesigned Footplates are lighter with a rubberized non-slip surface and an updated look.
Patented Curved Axle Plate allows for the greatest range in the center of gravity adjustment and rear seat height adjustment.
Snap-In Seat Saddles lock the cross tubes in place on TiLite’s rigid folding mechanism. This feature helps the Aero X achieve rigid chair performance.
The Aero X utilizes Machined Plugs to create rear wheel camber. In contrast to using washers to create rear wheel camber, the use of machined camber plugs precisely aligns the Aero X’s rear wheels, allowing the chair to consistently track straight.
Frame Type Folding Frame Style Modular Box Frame Frame Material Titanium TiFit N/A Adjustability Full adjustability Growable Optional (Depth adjustable back / frame) Custom Configuration Yes Frame Options
Fixed front end
Swing away (all-in-one swing in, swing out, & removable) hemi height frame
Heavy duty frame
Power adaptable frame
Fixed Front - 13.1 lb.
Swing Away - 15.5 lb.
12" - 22"
12" - 20"
Front Seat Height
13.5" - 21"
Rear Seat Height
13" - 20"
0°, 2°, 4°, or 6°
Front Frame Angle
Fixed Front - 70°, 80°, or 85°
Swing Away - 70°, 80°, 85°, or 90°
Footrest Width Options Standard Taper Seat Back Type (Folding) Folding Seat Back
Adj. Height 11" - 20.5"
Adj. Angle 80° - 101°
Seat Back Type (Fixed) Fixed Seat Back
Adj. Height 11" - 20"
Center of Gravity Adjustment 6" Weight Limit Standard - 265 lb.
Heavy Duty - 350 lb.
Transit Options Transport Bracket Warranty Lifetime on Frame
One Year on TiLite Components
Red = Fixed | Green = Adjustable
**Weight based on 16″ x 16″ wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24″ (540) rear wheels weighs 7.2 lb.
