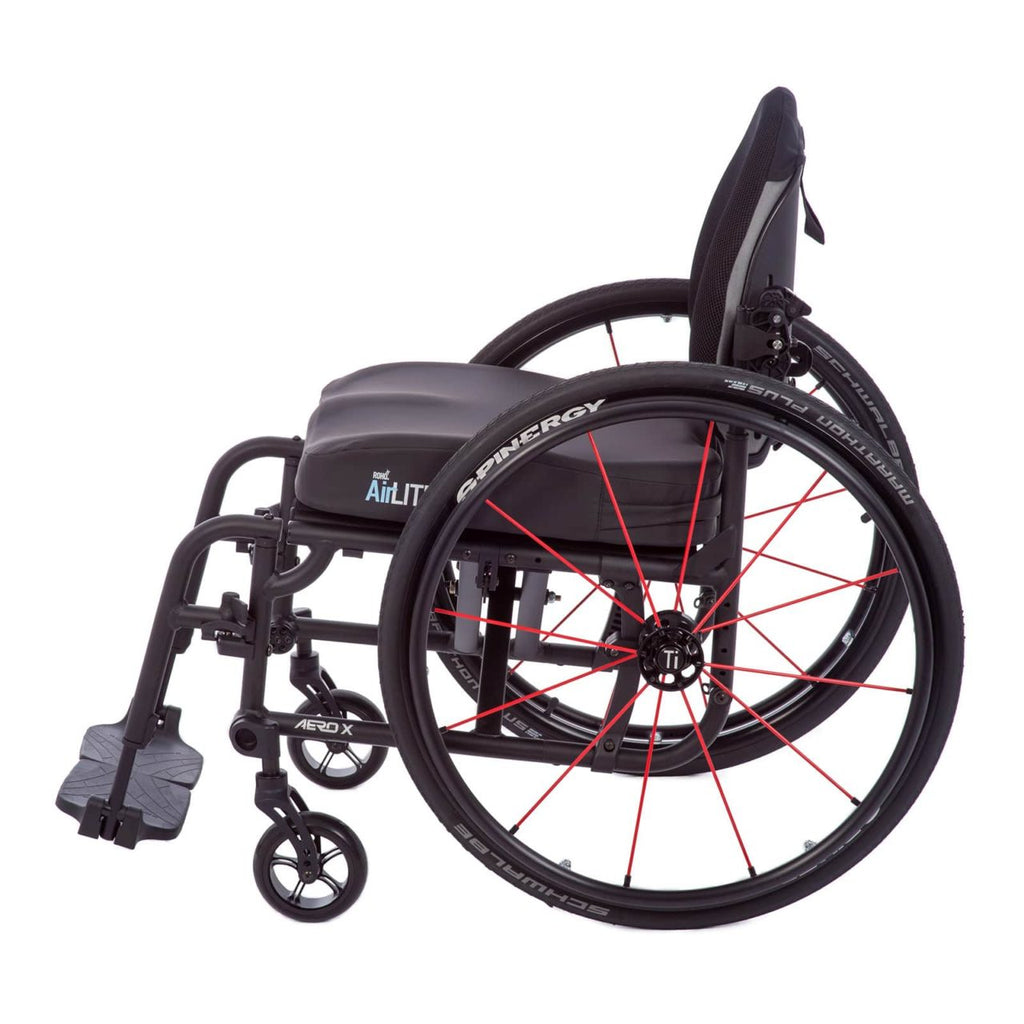

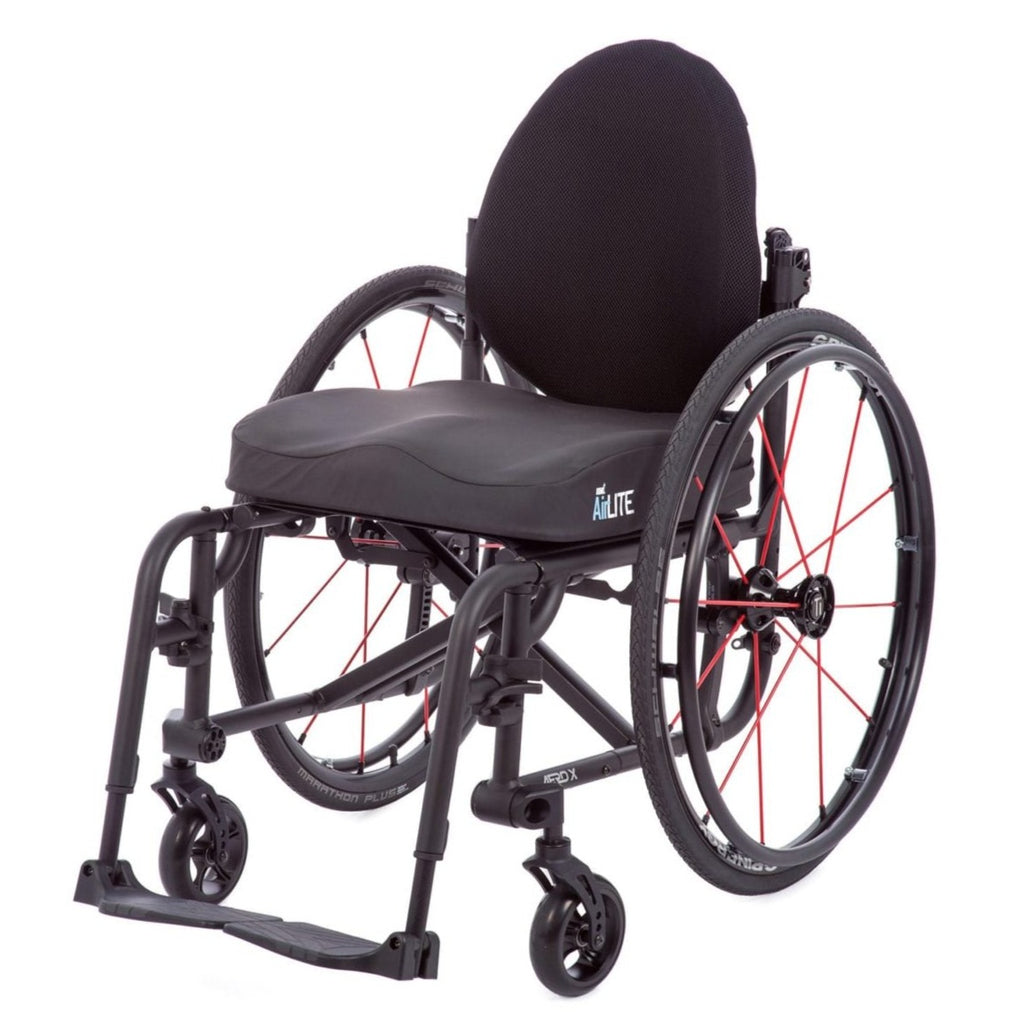

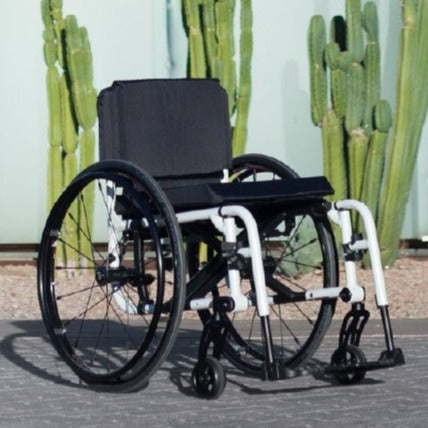

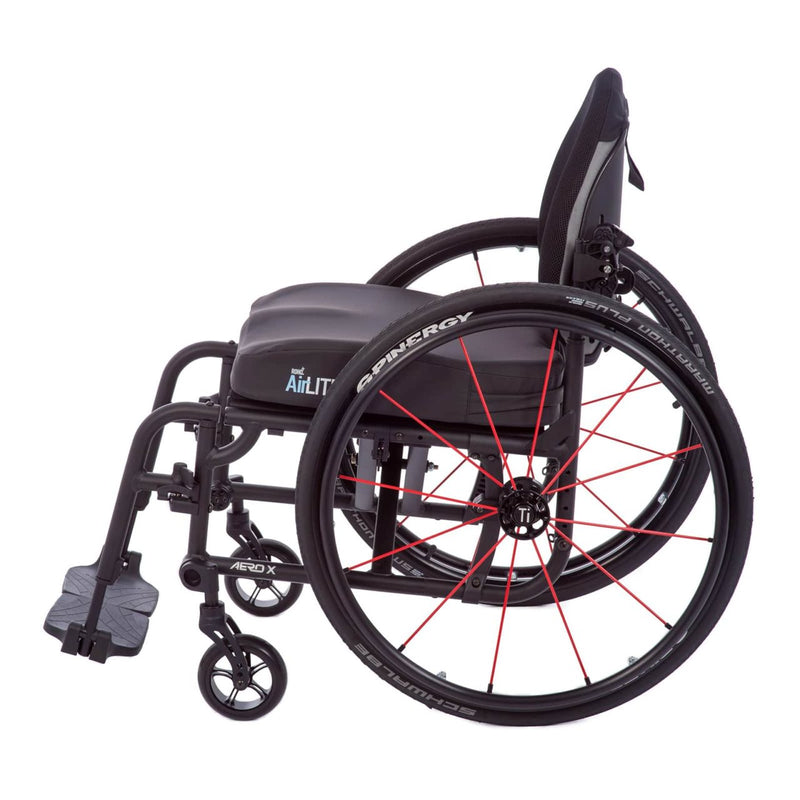

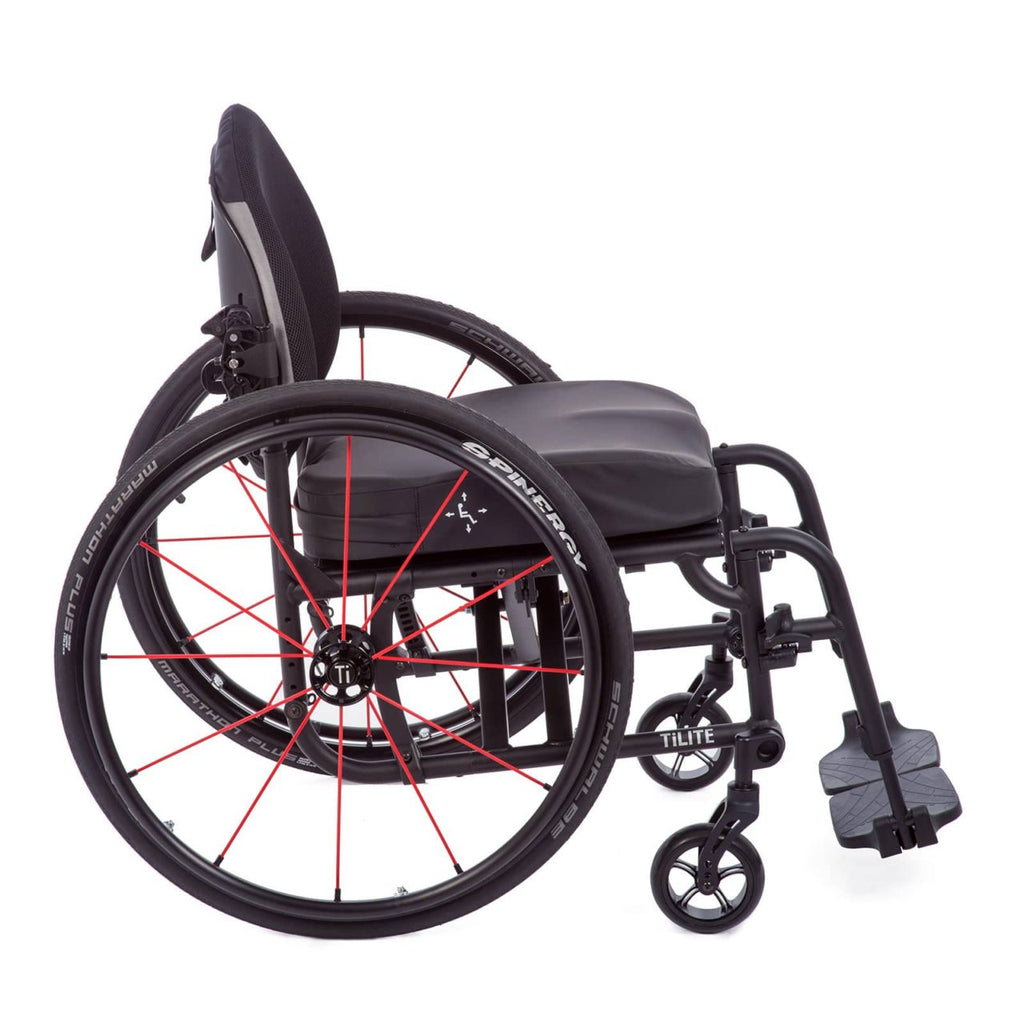

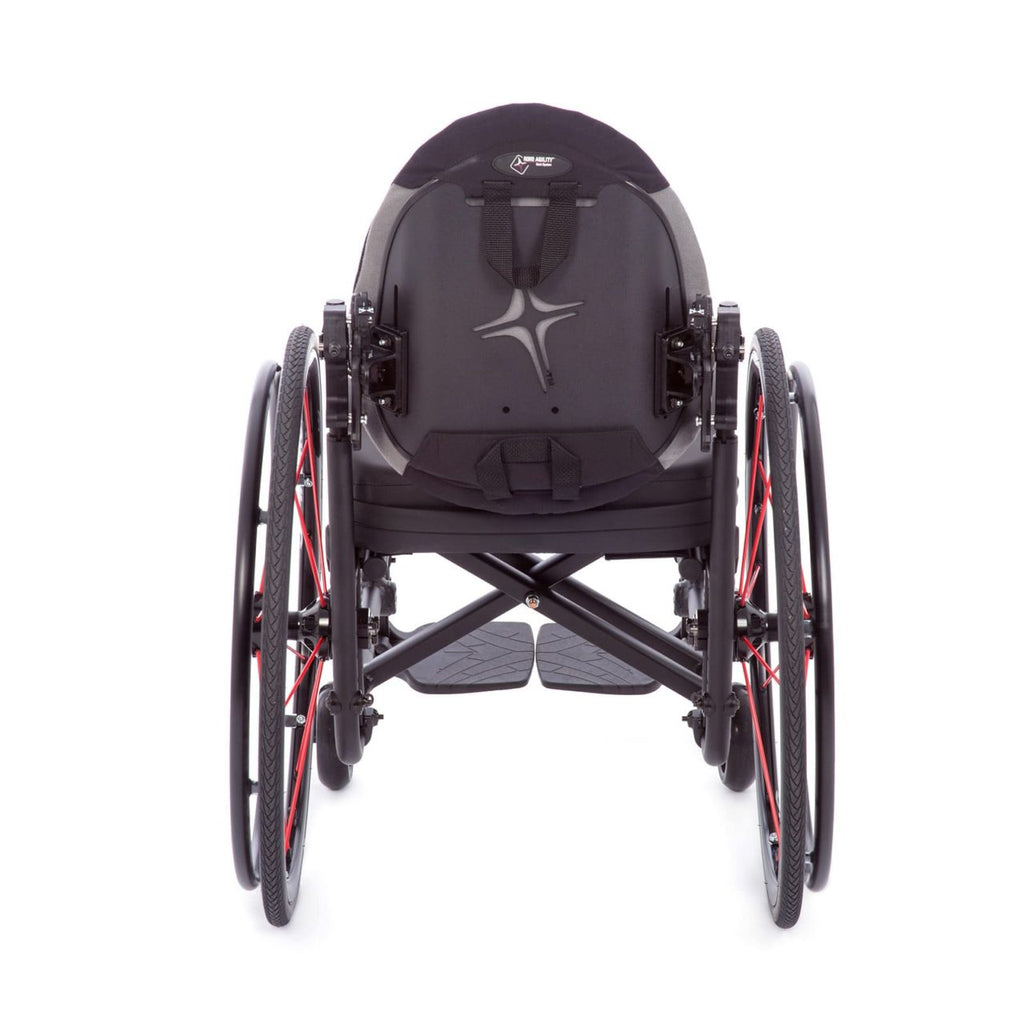

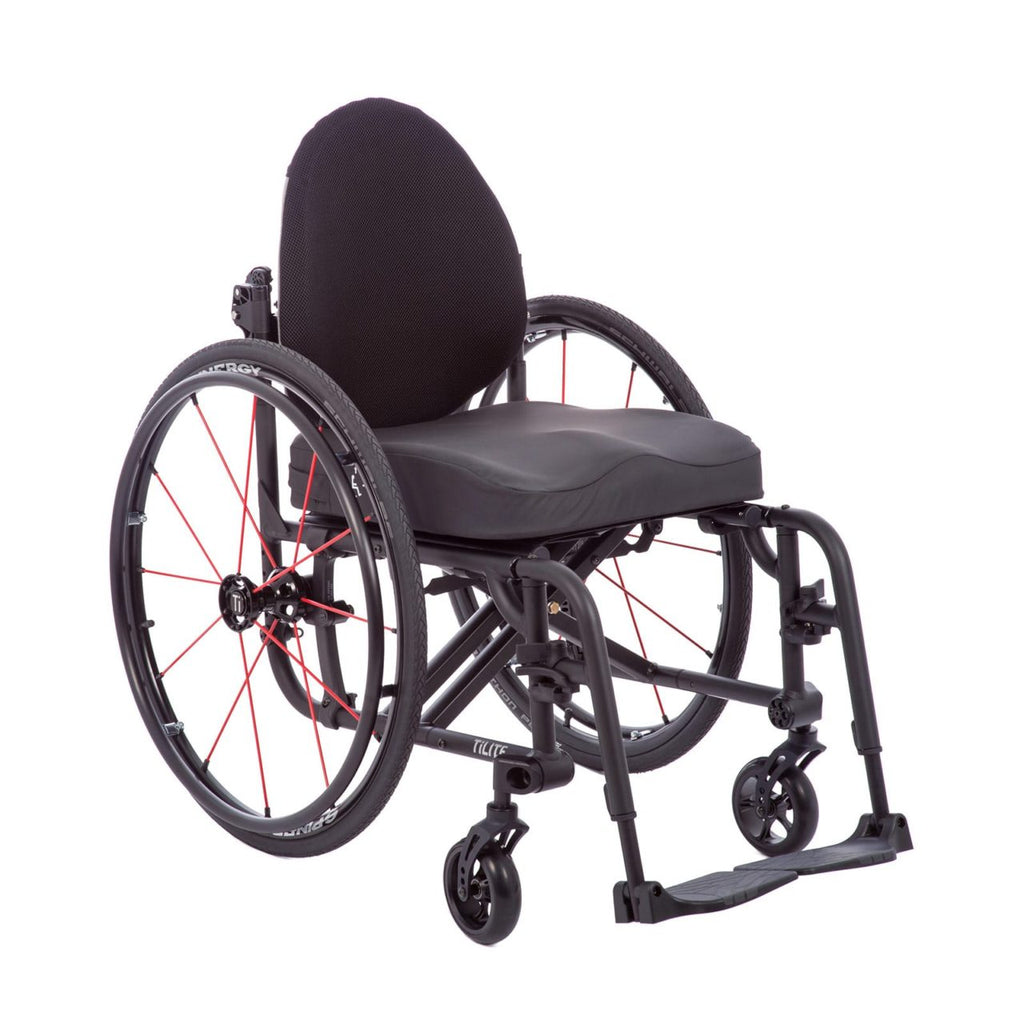

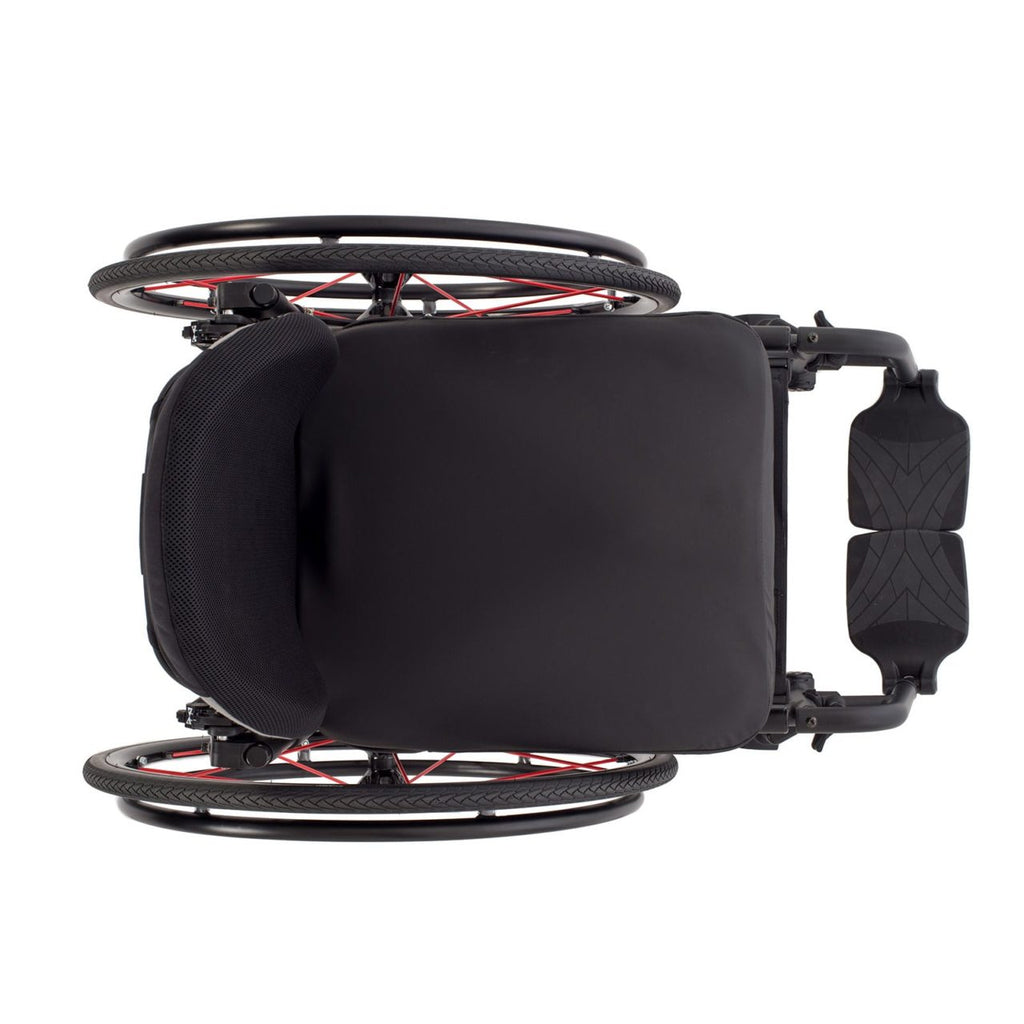

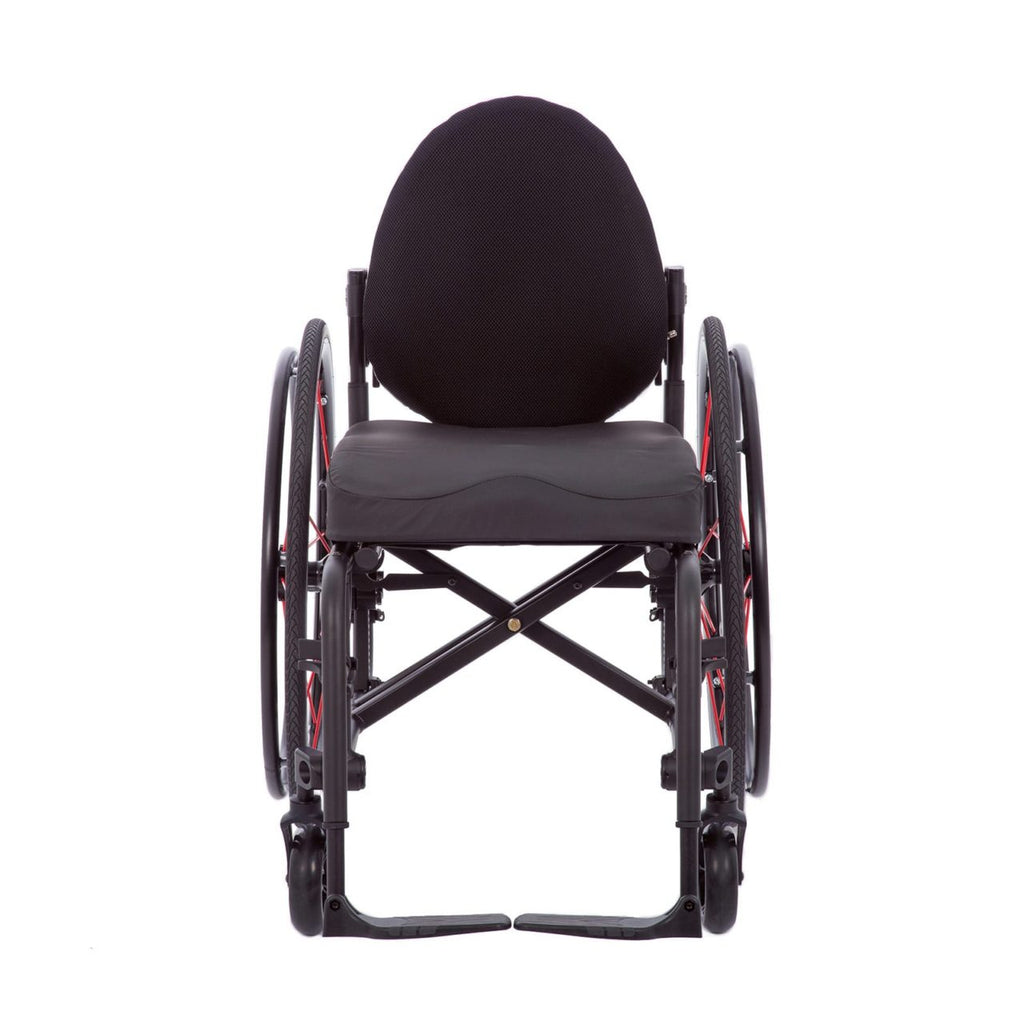

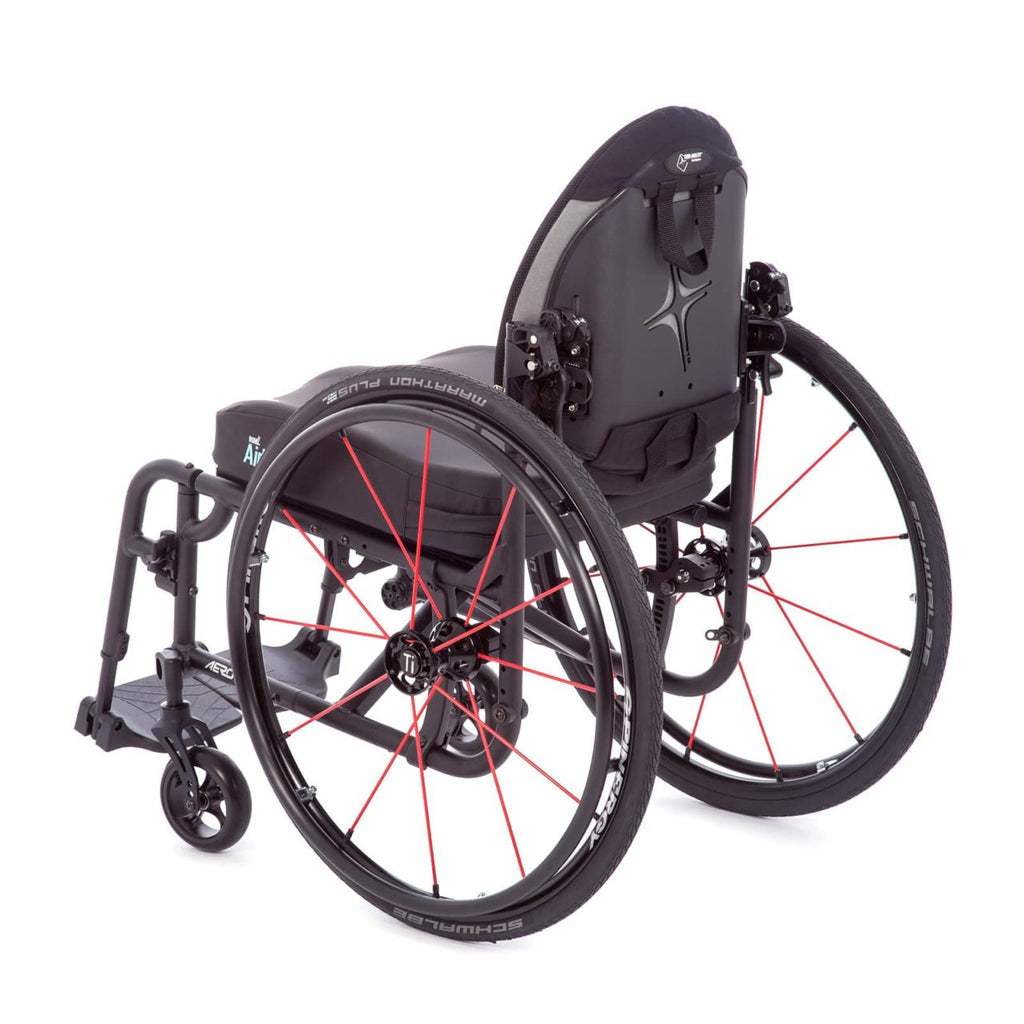

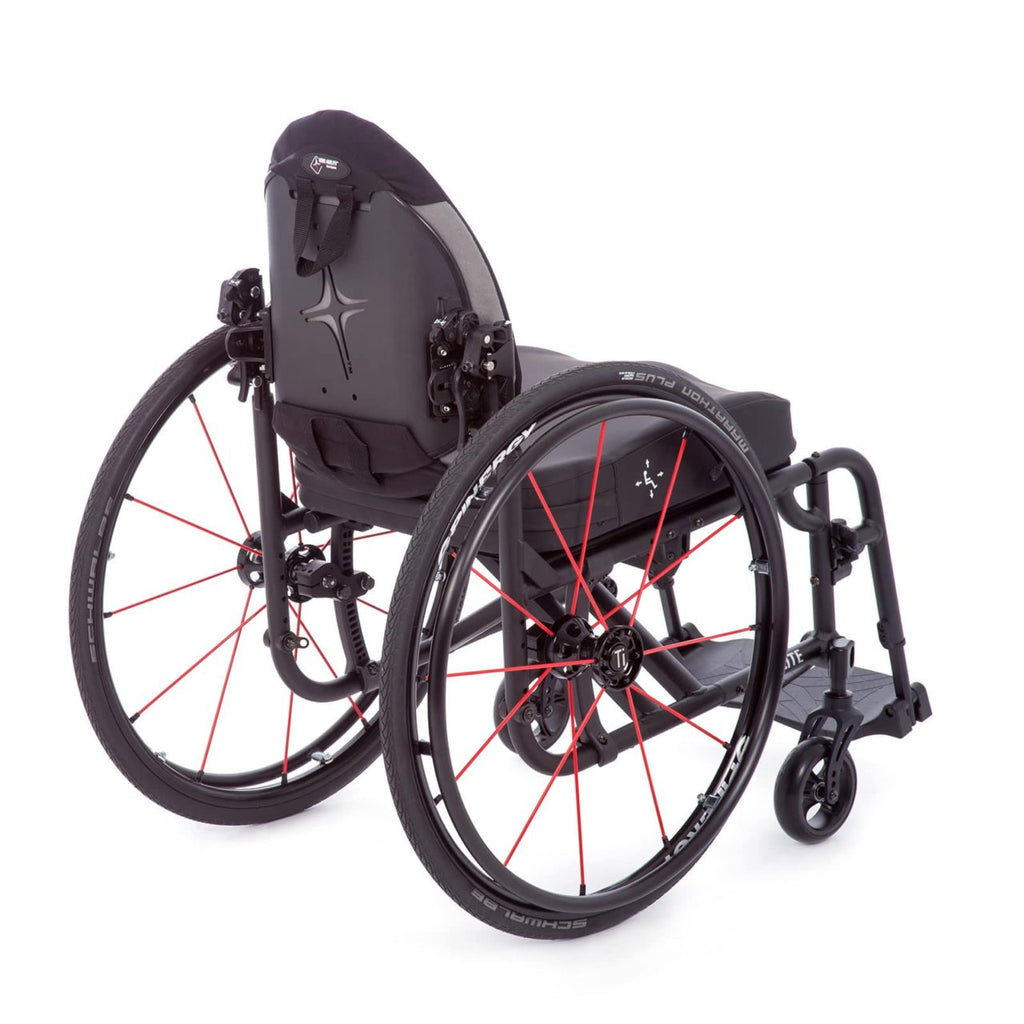

Tilite Aero X Lightweight Folding Wheelchair
Product DescriptionMultifaceted simplicity
The Aero X features an innovative modular design with clean, modern lines and configurability. Featuring multiple configurations that include heavy-duty, hemi, and amputee options. Add superior rolling dynamics and full adjustability, and you get an Aero X that excels in both performance and price.
The modular frame design of the Aero X facilitates configurability in the field. This includes adding aftermarket seating systems, switching fixed and swing away front ends, and growing chair width and depth to meet changing customer needs.
The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine-tune the fit of your wheelchair because you are not limited to a series of pre-set holes.
We’ve done it. TiLite has taken this standard wheelchair design and added efficiency in both function and manufacturing. Here is a design that is strong, efficient, and cost-effective so that you get more of what you want.
The Aero X folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation. These features are “must have” advantages for anyone who chooses a folding chair.
AERO X Innovation
Modular Design of the Aero X facilitates configurability in the field. This includes:
- Adding aftermarket seating systems.
- Switching fixed and swing away front ends.
- Growing chair width and depth.
The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine-tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points in today's wheelchairs by reducing the number of holes in the frame.
Improved Speedloader Design makes for easier, more durable adjustments and two positions (forward/ backward) for caster positioning.
Redesigned Footplates are lighter with a rubberized non-slip surface and an updated look.
Patented Curved Axle Plate allows for the greatest range in the center of gravity adjustment and rear seat height adjustment.
Snap-In Seat Saddles lock the cross tubes in place on TiLite’s rigid folding mechanism. This feature helps the Aero X achieve rigid chair performance.
The Aero X utilizes Machined Plugs to create rear wheel camber. In contrast to using washers to create rear wheel camber, the use of machined camber plugs precisely aligns the Aero X’s rear wheels, allowing the chair to track straight consistently.
Frame Type Folding Frame Style Modular Box Frame Frame Material Aluminum (Titanium Upgrade Available) TiFit N/A Adjustability Full Adjustability Growable Optional (Depth Adjustable Back/Frame) Custom Configuration Yes Frame Options Fixed Front End
Swing Away (All-In-One Swing In, Swing Out, & Removable) Hemi Height Frame
Heavy Duty Frame
Power Adaptable Frame
Transport Weight** Fixed Front - 15.6 lb.
Swing Away - 18 lb.
Seat Width 12" - 22" Seat Depth 12" - 20" Front Seat Height 13.5" - 21.5" Rear Seat Height 13" - 20" Camber 0°, 2°, 4°, or 6° Front Frame Angle Fixed Front - 70°, 80°, or 85°
Swing Away - 70°, 80°, 85°, or 90°
Footrest Width Options Standard Taper Seat Back Type (Folding) Folding Seat Back
Adj. Height 11" - 20.5"
Adj. Angle 80° - 101°
Seat Back Type (Fixed) Fixed Seat Back
Adj. Height 11" - 20"
Center of Gravity Adjustment 6" Weight Limit Standard - 265 lb.
Heavy Duty - 350 lb.
Transit Options Transit Tie-Down
Warranty Lifetime on Frame
One Year on TiLite Components
**Weight based on 16″ x 16″ wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24″ (540) rear wheels weighs 7.2 lb.
