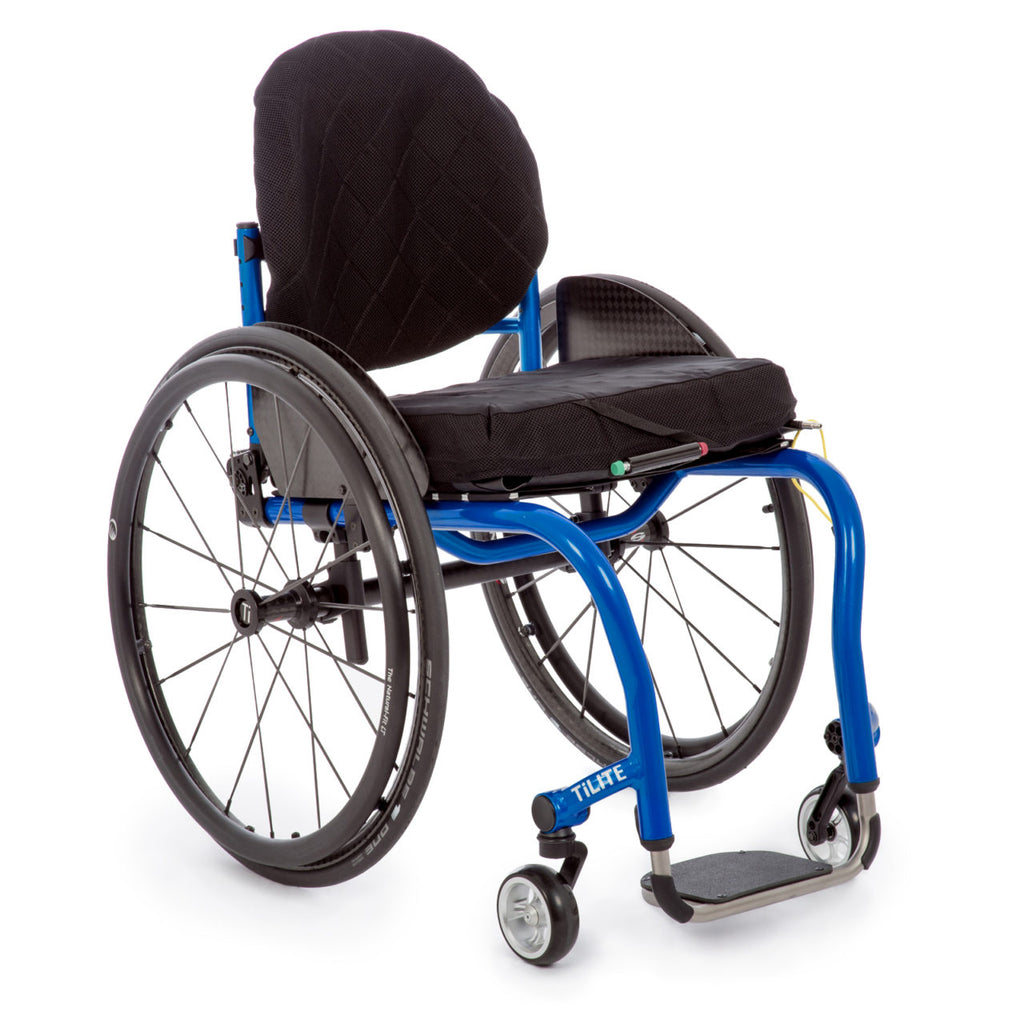

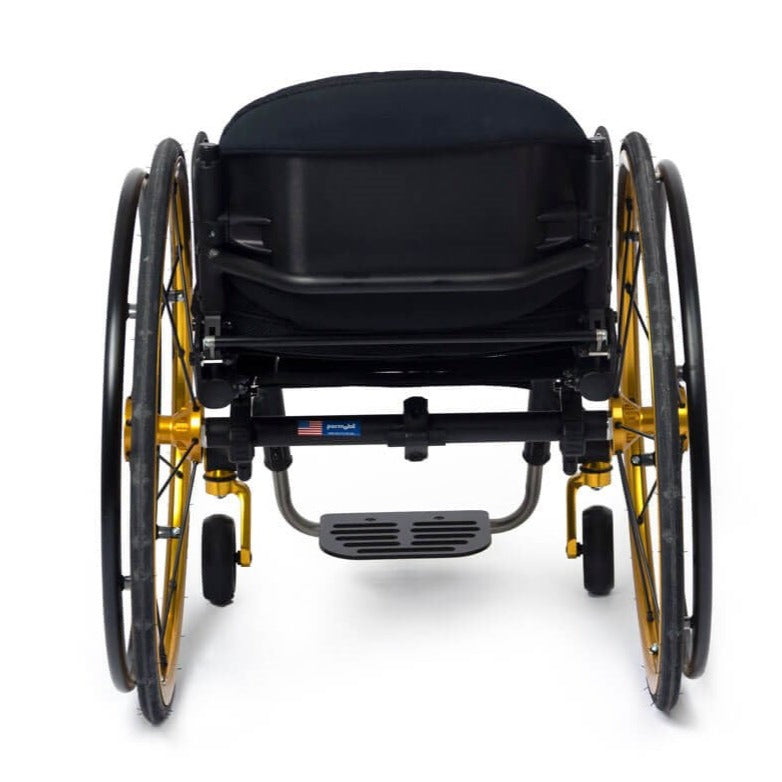

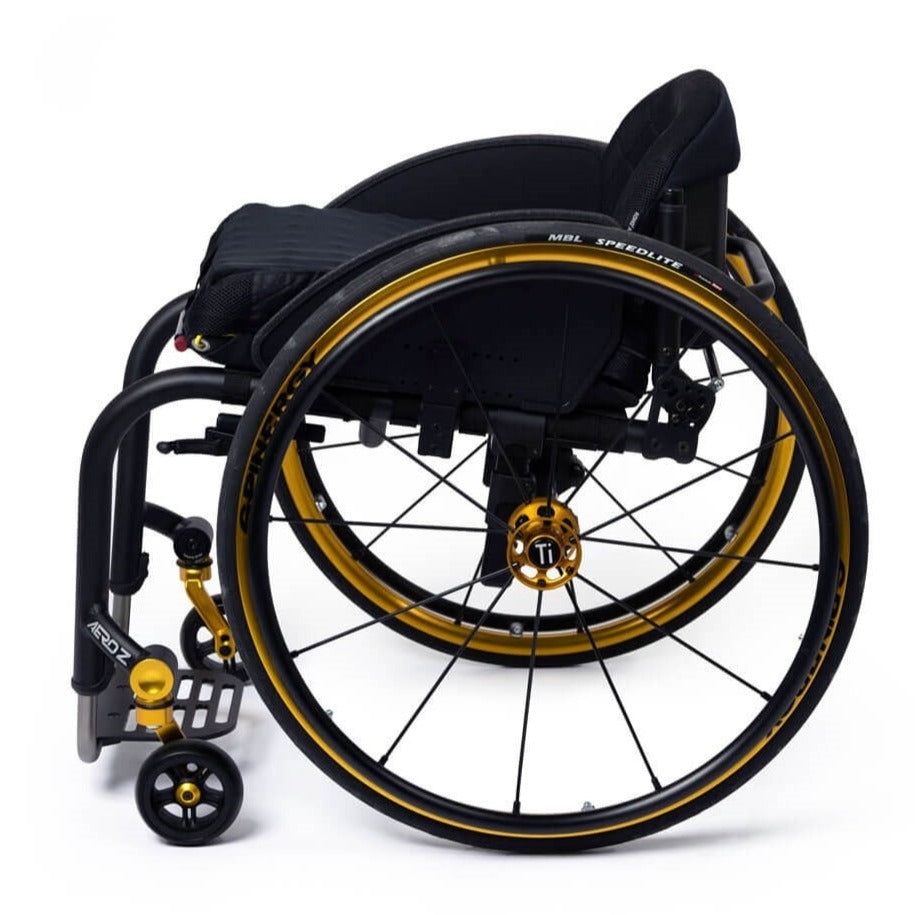

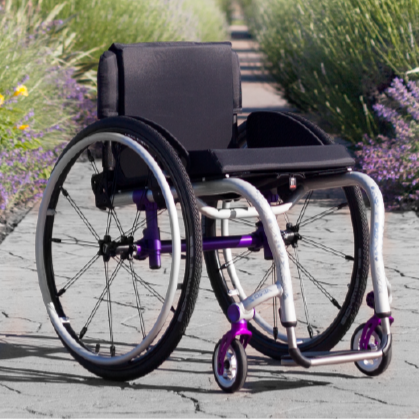

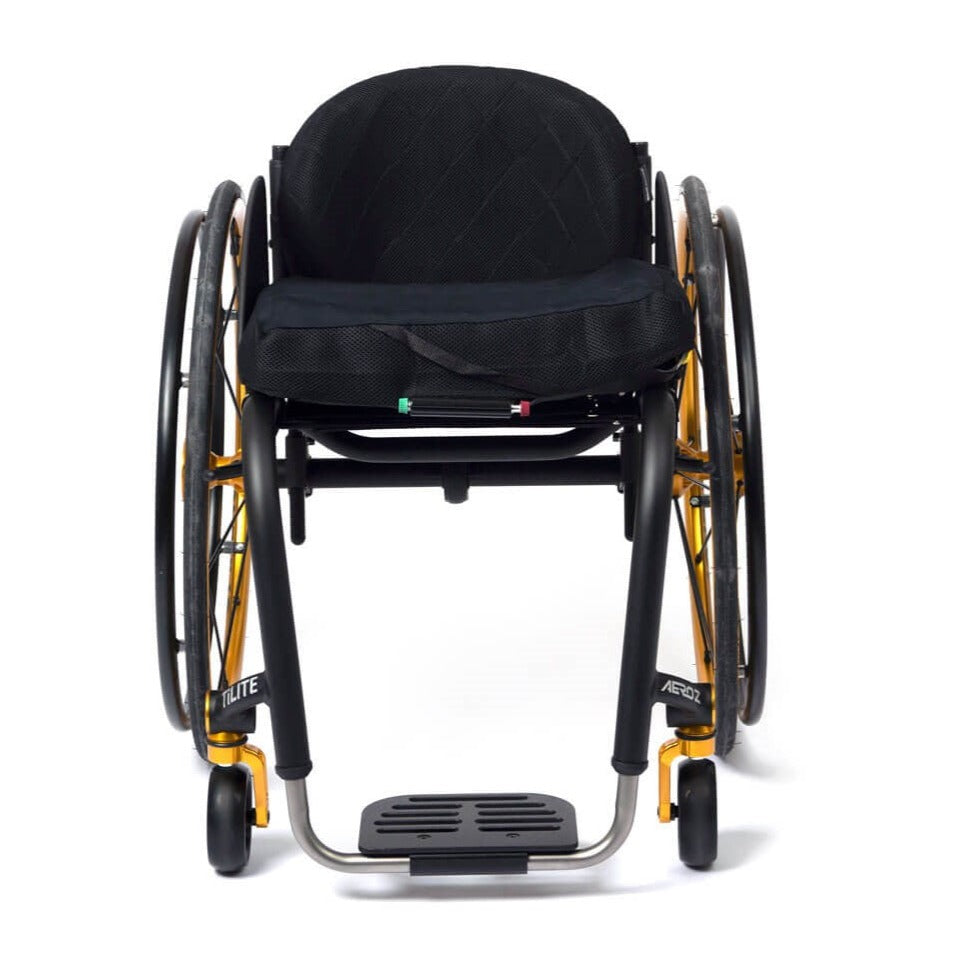

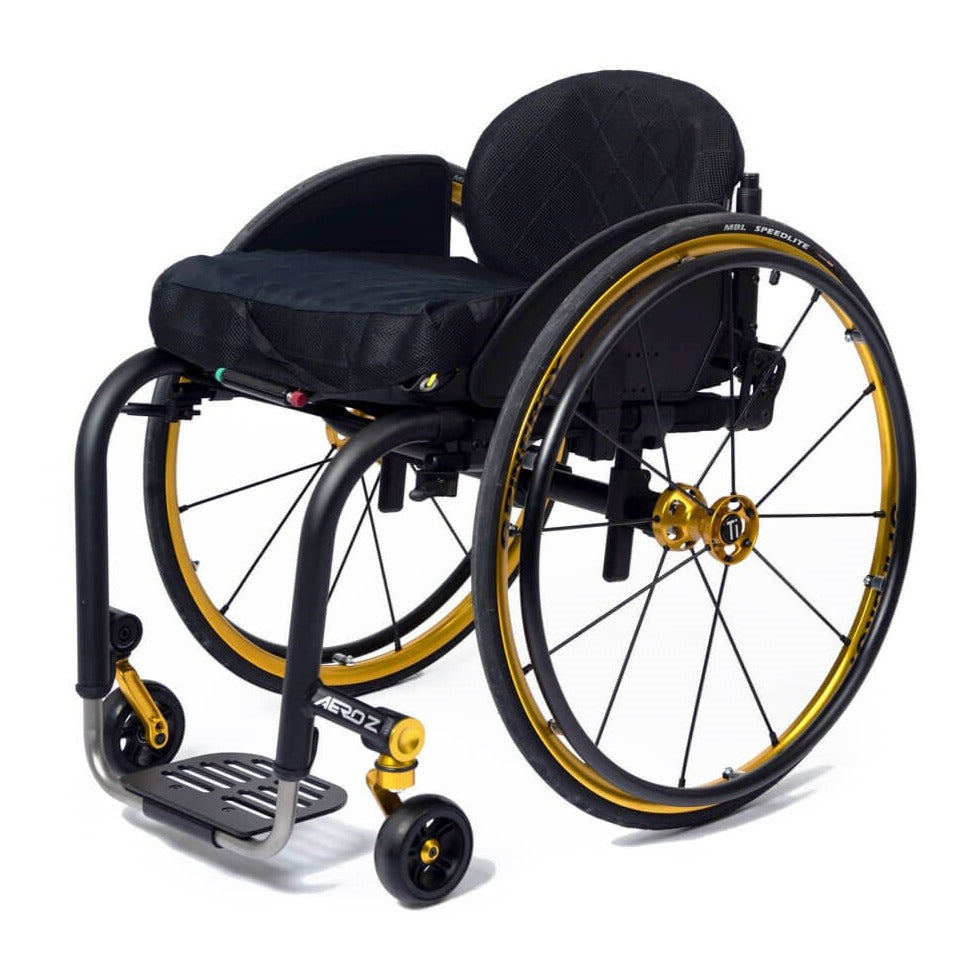

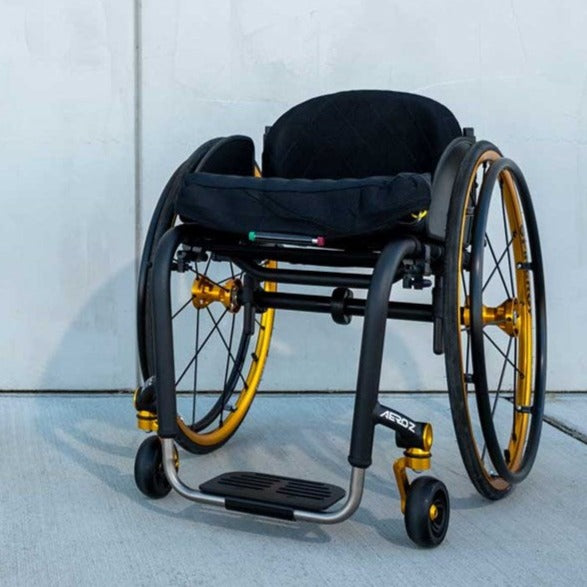

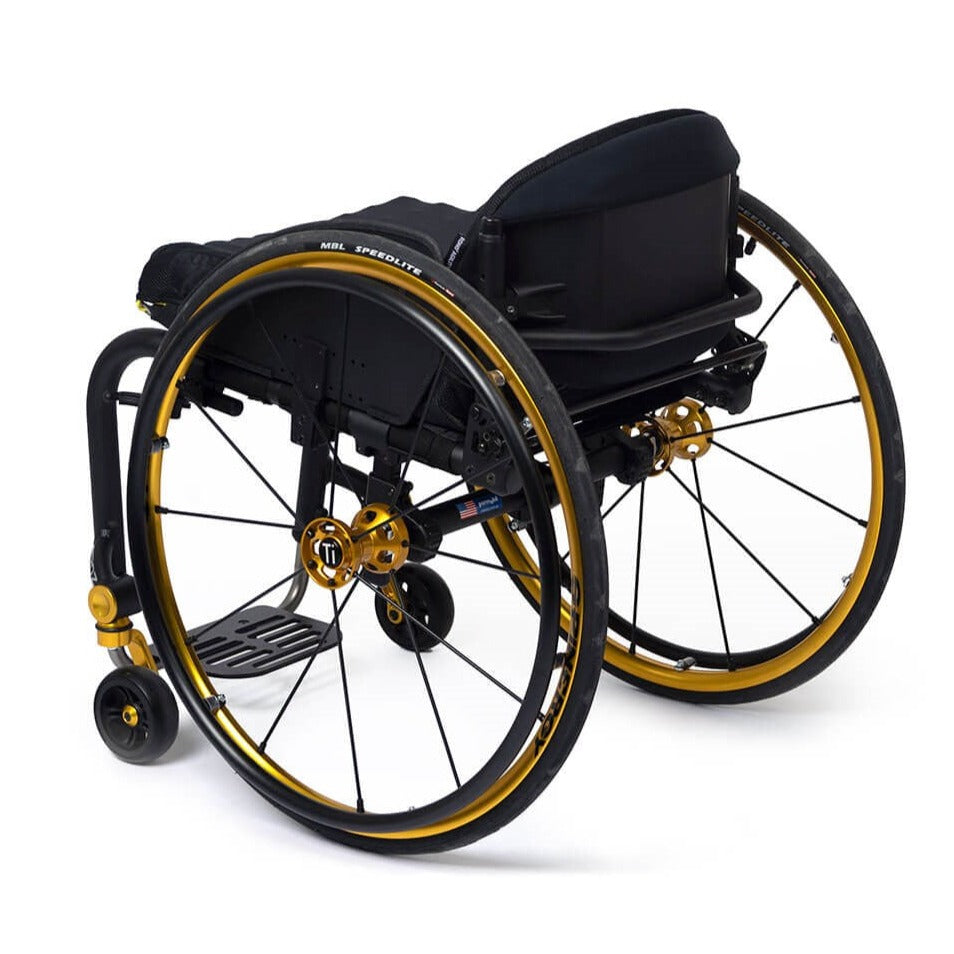

Tilite Aero Z Lightweight Aluminium Mono-Tube Rigid Wheelchair

Product Description

Features

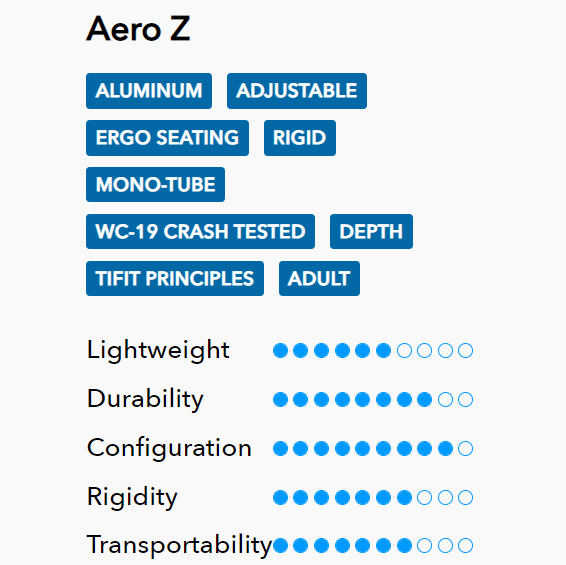

Specifications
Downloads

Open frame. Open road.
The open frame of the aluminum Aero Z calls out to the open road. The Aero Z is the only TiFit, mono-tube aluminum frame on the market. In a class by itself, the Aero Z is lightweight and fully adjustable, and it won’t break the bank!

Rigid
Rigid frame chairs are the lightest and highest performing chairs because they are constructed from the fewest possible components and have the fewest moving parts.

Full Adjustability
Precision Lock technology from Permobil is the most intuitive and easy-to-use adjustment system on the market. Together, the Precision Lock caster and back angle adjustments compose an exact fit and effortless ride.

Mono-Tube Frame
Distinguished by a clean, modern look, the mono-tube frame’s 1.25″ tubing gives the Aero Z strength and durability. The frame shape affords excellent transportability and easy placement on a car seat. Round off the Aero Z’s frame with curved, ovalized caster arms.

TiFit
The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.

Aero Z Innovation
The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine-tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points in today's wheelchairs by reducing the number of holes in the frame.

Adjustable Camber Mount incorporates TiLite's Tru-Fit system with up to 3.5″ of rear seat height adjustment.

The Precision Lock Caster System is a simplified and more accurate way to square your wheelchair in a matter of minutes. Precision Lock is the only caster system to feature a single-socket adjustment mechanism while offering an unrestricted range of movement.

Zero Play Camber Plugs give a much tighter feel to the chair like sports suspension in a car. CNC machined from billet aluminum to the highest tolerances; they remove any side to side movement from the rear wheels.

TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

Do you need help with funding your Tilite chair?
You can try to get funding for your wheelchair through SG Enable Assistive Technology Fund (ATF). To learn more about this service, the eligibility criteria required and how you can apply for the scheme, please click below to access the funding page.
>> Find out More

Frame Type	Rigid
Frame Style	Mono-Tube
Frame Material	Aluminum (Titanium Upgrade Available)
TiFit	Yes
Adjustability	Full Adjustability
Growable	Optional (Depth Adjustable Back/Frame)
Custom Configuration	Yes
Frame Options	SuperLite Edition Power Adaptable Frame Reinforced Frame
Transport Weight**	12.4 lb.
Seat Width	10" - 20"
Seat Depth	10" - 20"
Front Seat Height	16" - 21"
Rear Seat Height	12.5" - 20"
Camber	0°, 2°, 4°, 6°, 8°, or 12°
Front Frame Angle	70°, 75°, 80°, 85°, or 90°
Footrest Width Options	Standard Taper V-Front End
Seat Back Type	Folding Seat Back Adj. Height 8.5" - 21" Adj. Angle 80° - 101°
Center of Gravity Adjustment	6"
Weight Limit	265 lb.
Transit Options	Transit Tie-Down Transport Bracket
Warranty	Lifetime on Frame One Year on TiLite Components

Red = Fixed | Green = Adjustable
**Weight based on 16″ x 16″ wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24″ (540) rear wheels weighs 7.2 lb.
