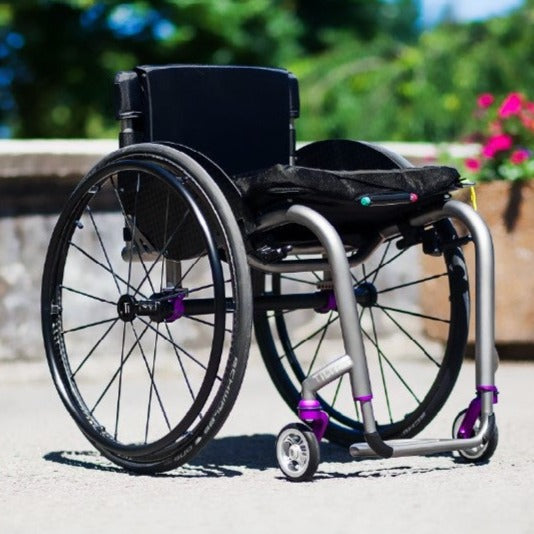

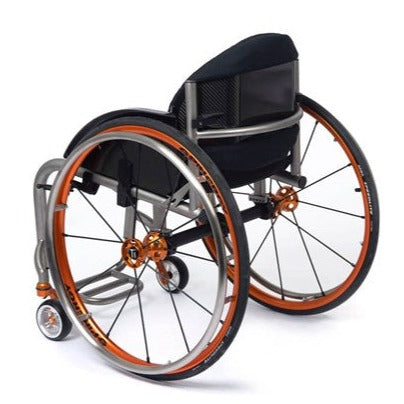

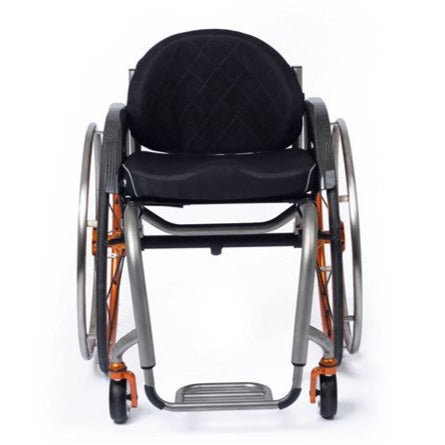

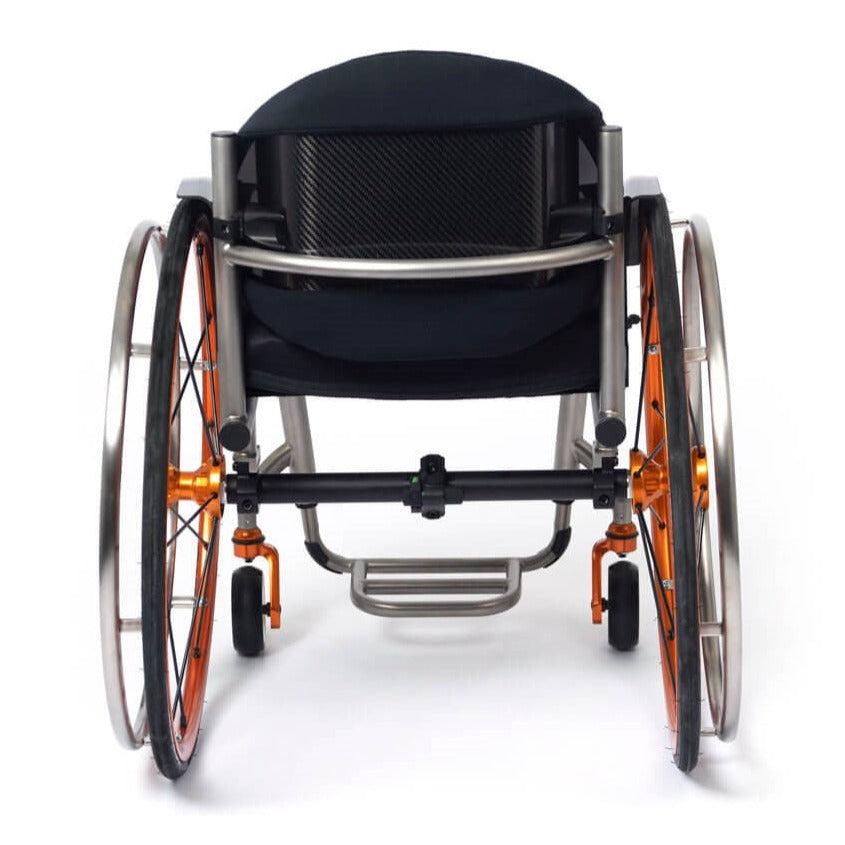

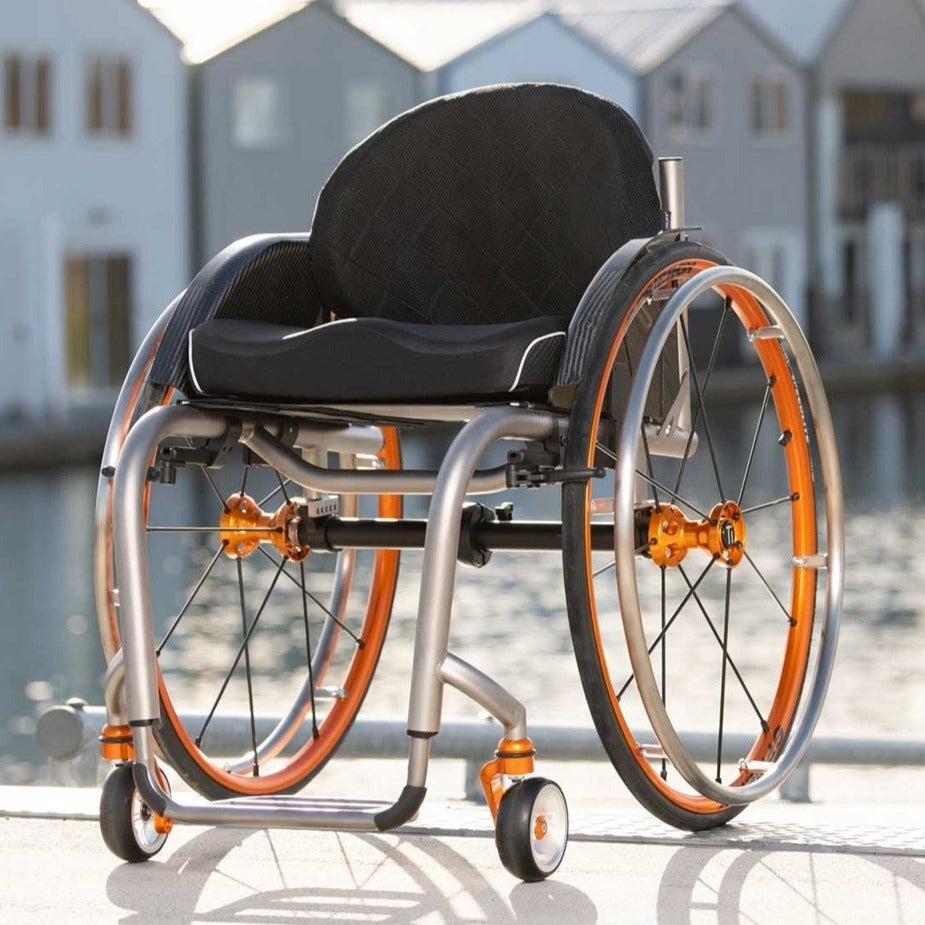

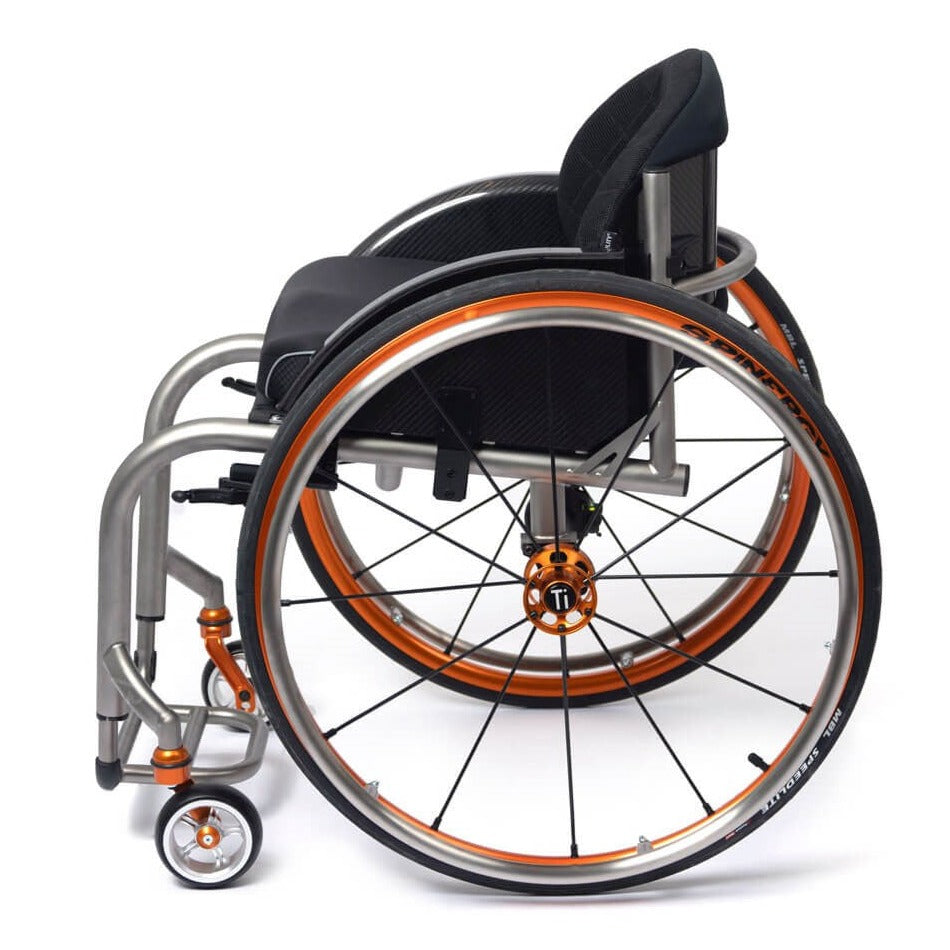

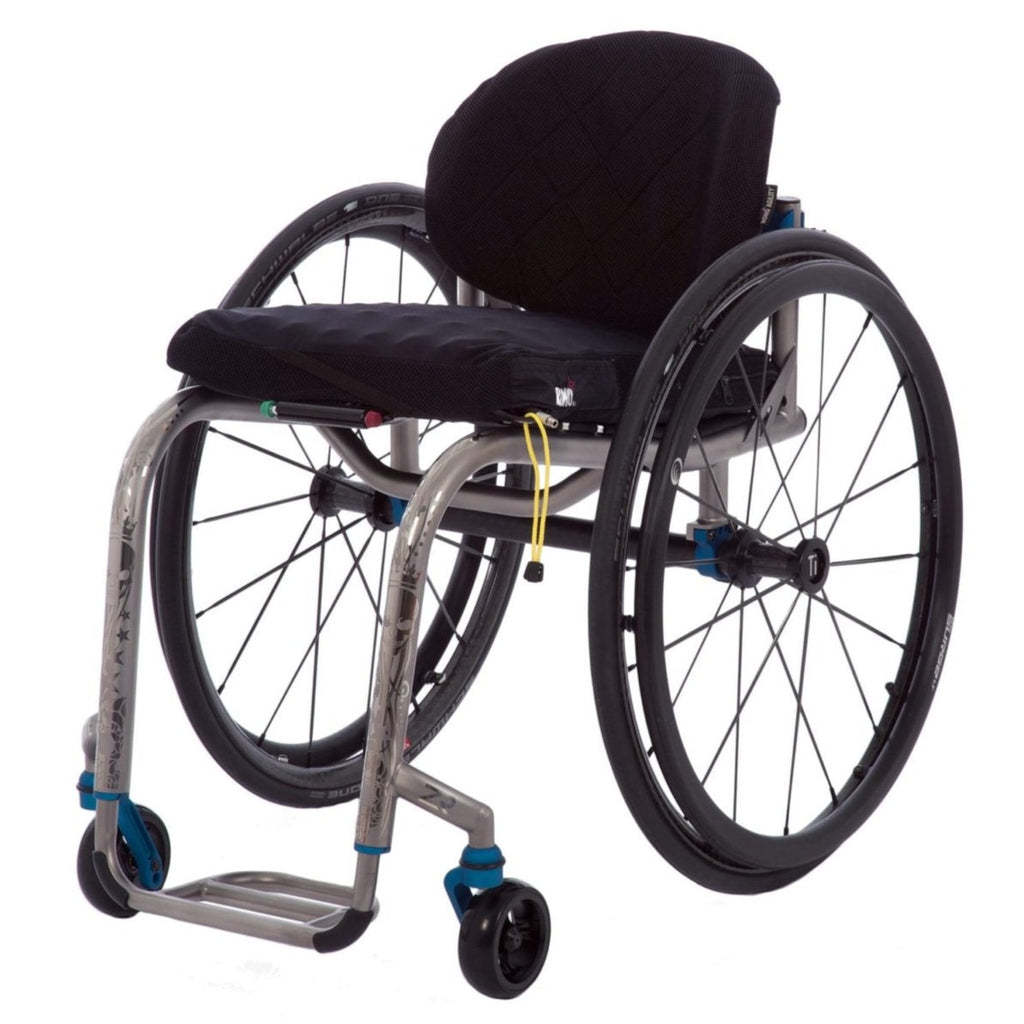

Tilite ZR Lightweight Rigid Wheelchair
Product DescriptionHead-turning style With the ZR’s minimalist mono-tube frame, less truly is more. The clean aesthetic of the ZR turns heads while the titanium frame makes sure you have the strength and vibration-dampening ride to go with your beauty. Style and strength to take on whatever life throws at you.
Rigid Rigid frame chairs are the lightest and highest performing chairs because they are constructed from the fewest possible components and have the fewest moving parts.
Titanium Titanium absorbs vibration, won’t break and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.
Mono-Tube Frame Distinguished by a clean, modern look, the mono-tube frame’s 1.25″ tubing gives the ZR strength and durability. The frame shape affords excellent transportability and easy placement on a car seat. Round off the ZR’s frame with curved, ovalized caster arms.
TiFit The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.
ZR Innovation The ZR's sleek Mono-Tube Frame, with 1.25″ tubing, is 20% lighter than its predecessor but retains titanium's 44% strength advantage over 7000 series aluminum.
Swept Caster Arm with bullet caster housing reduces weight and adds yet more style.
Zero Play Camber Plugs give a much tighter feel to the chair like sports suspension in a car. CNC machined from billet aluminum to the highest tolerances; they remove any side to side movement from the rear wheels.
TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.
Frame Type Rigid Frame Style Mono-Tube Frame Material Titanium TiFit Yes Adjustability Limited Adjustability Growable N/A Custom Configuration Yes Frame Options Black Edition
Heavy Duty Frame
Power Adaptable Frame
Transport Weight** 9.3 lb. Seat Width 10" - 20" Seat Depth 10" - 20" Front Seat Height 16" - 21" Rear Seat Height 12.5" - 20" Camber 0°, 2°, 4°, 6°, 8°, or 12° Front Frame Angle 70°, 75°, 80°, 85°, or 90° Footrest Width Options Standard Taper
Seat Back Type (Folding) Folding Seat Back
Adj. Height 8.5" - 21"
Adj. Angle 80° - 101°
Seat Back Type (Fixed) Fixed Seat Back
Fixed Height 8" - 20"
Fixed Angle 80° - 101°
Center of Gravity Adjustment 2.25" Weight Limit Standard - 265 lb.
Heavy Duty - 300 lb.
Transit Options Transport Bracket Warranty Lifetime on Frame
One Year on TiLite Components
Red = Fixed | Green = Adjustable
**Weight based on 16″ x 16″ wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24″ (540) rear wheels weighs 7.2 lb.
