Tobii Dynavox

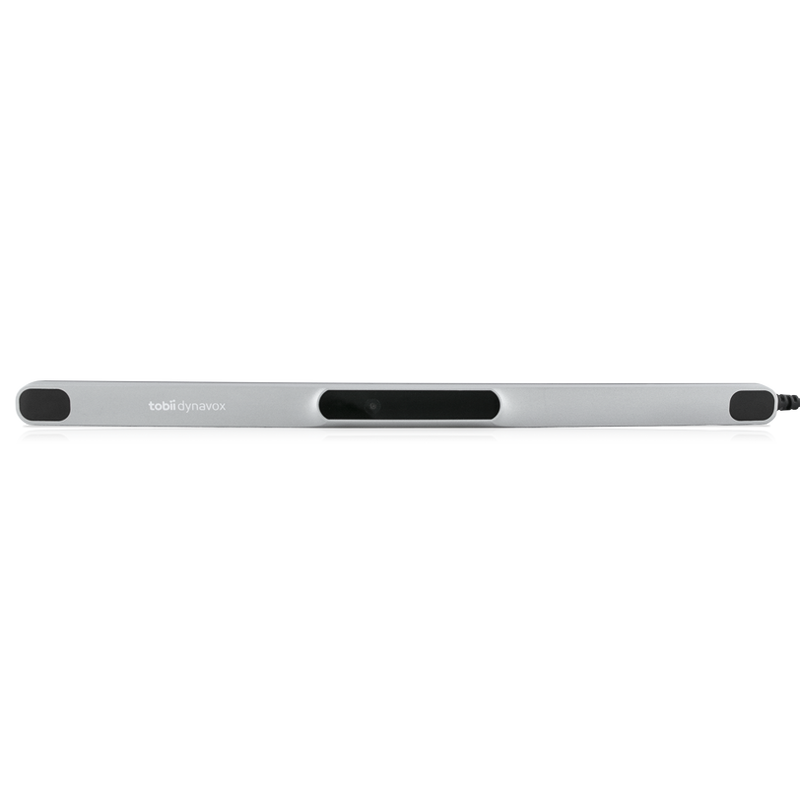

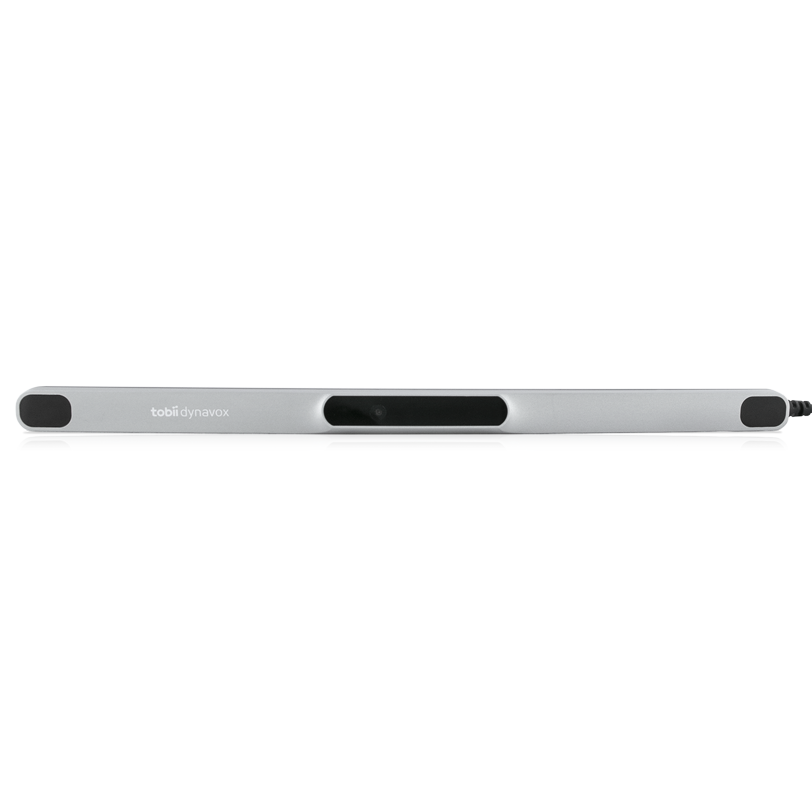

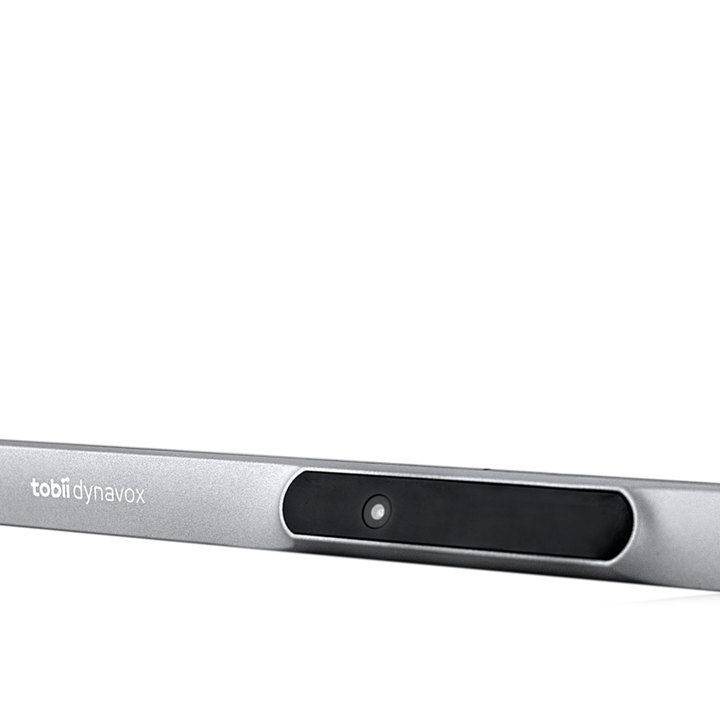

Tobii Dynavox PCEye 5 with Computer Control
DNR Wheels are licensed to sell this product only in Singapore.
Control a Windows computer using only your eyes, even outdoors.
PCEye is a new compact eye tracker that gives individuals with physical disabilities a flexible way to operate a computer with their eyes. It can enhance the use of a dedicated communication device by fitting Windows tablets, laptops and desktop monitors up to 27'' for both indoor and outdoor use. How Tobii Dynavox eye tracking works.
PCEye comes with Computer Control, an intuitive way to access and navigate a Windows computer with eye gaze. Surf the web and create documents. Play games. Make video calls and post on social – all with your eyes.
For those who also need a communication system, PCEye can be purchased with our symbol-supported Snap Core First app or with our text-based Communicator 5 software. It can also be purchased with an optional bracket to connect the PCEye to a Windows tablet.
Assistive eye-tracking
PCEye is a compact eye tracker that enables people with physical disabilities to control almost any Windows computer with their eyes.
Eye control
Outdoor eye-tracking
Flexible
Portable
Independence & flexibility
Access all the functions of a Windows computer, including small and large screens, both indoors and out completely independently.
Accessible

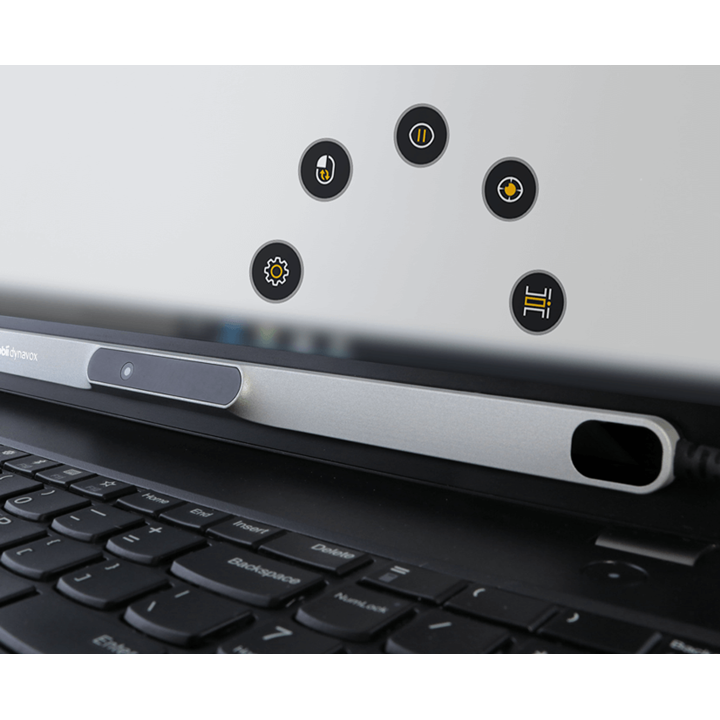

Replace a traditional keyboard and mouse with your eyes and surf the web, connect on social media, play games, create documents and more. Simply connect the PCEye to your Windows device via USB, and access everything your computer has to offer, intuitively and independently with Computer Control.
Flexible
Use the PCEye with a wide selection of devices. It attaches perfectly to most Windows tablets, laptops and desktop monitors, with excellent performance on screens up to 27" in size. It can be used both indoors and outdoors, even in bright light.
Complementary
PCEye is a discreet eye tracker that can be used as a complementary tool to a dedicated communication device such as the I-Series. It offers added flexibility and convenience to meet different needs throughout the day. Use it with a larger-screen computer for gaming, a laptop for meetings or a tablet for pared-down outings.
Accurate
Based on 15+ years of testing across different ethnicities, eyewear and lighting conditions, our newest eye tracker delivers precise screen target selection and the fastest recovery time if the device loses track of your eyes.
Software included with PCEye
Access everything a Windows device has to offer with Computer Control, included with every PCEye purchase.
Computer Control
Enables full control of a Windows computer intuitively using just your eyes. Easily launch the apps via Computer Control.

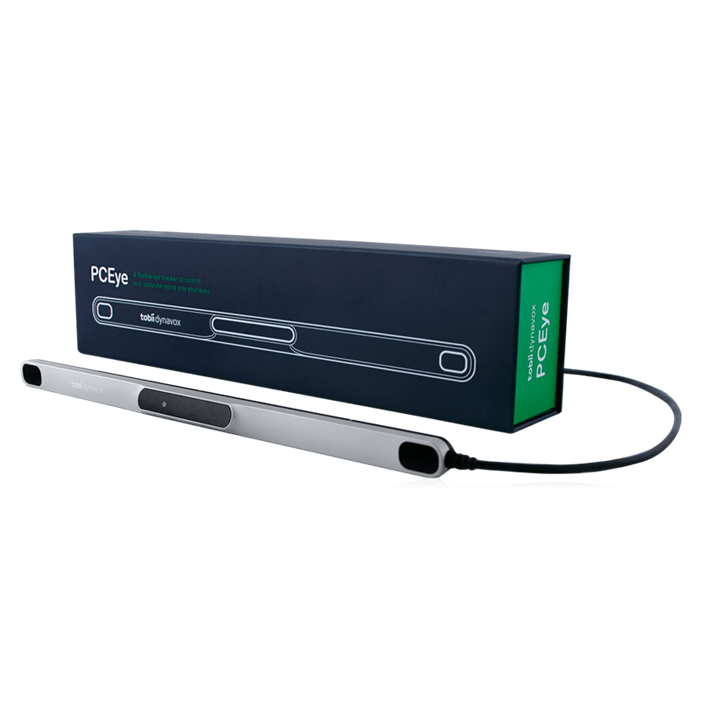

What's in the box?
- PCEye eye tracker
- Magnetic mounting plates
- USB-A to USB-C adapter
- Computer Control software (installer link)
- Getting Started Guide
- Training Cards
Optional Software for PCEye
The following optional software transforms PCEye into an affordable AAC device for those with speech and language disabilities, in addition to teaching eye control skills.
A symbol-supported AAC app enabling a path to communication and literacy at any stage of development.
Communicator 5
A text-based AAC solution designed to help literate individuals with language disabilities communicate more efficiently.
Magic Eye FX
A set of games and activities designed to teach beginner-level eye gaze computer access in a fun, stress-free way.
Optional Accessories
Make the most of your PCEye with these accessories.
Carrying Case
Take your PCEye with you anywhere safely and in style. Included with purchase and available to buy as a spare.
PCEye Bracket
Connect your PCEye eye to a Windows tablet with this custom-fit bracket. Sold separately.
Specifications
| Technical Specifications | PCEye 5 |
| Gaze Data Rate | 33 Hz |
| Gaze Sample Rate | 132 Hz |
| Data Streams | Gaze point, user position guide, Presence Primary camera image stream 33 Hz |
|
Power Consumption Full Operation |
2.2 W typical average |
| Processing Unit | Tobii EyeChip™ with fully embedded processing |
| Interface | USB Type C connector |
|
Head Movement Box1 size at distance @ 50 cm @ 19.7″ @ 65 cm @ 25.6″ @ 95 cm @ 37.4″ |
>20 cm × 20 cm >7.9″ × 7.9″ >35 cm × 35 cm >13.8″ × 13.8″ >35 cm × 35 cm >13.8″ × 13.8″ |
| Distance from user to the Eye Tracker | 50 cm - 95 cm |
|
Screen Size2 At 65 cm (25.6“) user distance |
Recommended up to 27” |
|
User Calibration (former tracking robustness) |
>99% |
|
Detected Gaze Interaction >30 Hz |
98% for 95% of population3 |
|
Gaze Accuracy on a 27” screen Across the whole box: Across 50% of population34 Across 95% of population3 |
< 8 mm < 18 mm |
|
Gaze Precision on a 27” screen Across the whole box: Across 50% of population34 Across 95% of population3 |
< 0.7 mm < 3 mm |
|
Max Head Movement Speed Eye Position Gaze Data |
40 cm/s (15.7 in/s) 10 cm/s (3.9 in/s) |
| Sucessfull Interaction Ratio | Minimum interactor size: 2 x 2 cm |
| Outdoor | Yes |
| Head Roll | < 25 degree |
| Pitch | < 25 degree |
| Visibility | Low visibility (850 nm) |
| Flicker | No flicker ( sampling @ 132 Hz) |
|
Data Flow and Data Rate Gaze Latency Gaze Recovery Low Resolution Strem |
25 ms (worst case image to signal latency) 50 ms 280×280 |
| Unit Size (Length × Height × Depth) | 285 mm × 15 mm × 8.2 mm 11.22″ × 0.59″ × 0.32″ |
| Unit Weight | 93 g 3.3 oz |
| Warranty | 2 years warranty (Against manufacturing defects) |
1. Head box describes the space in front of the eye tracker where the user must have at least one eye to get gaze data. The eye tracker is at a 20° angle looking upward from below the screen.
2. For larger than recommended screens, the limiting parameter is the quality of the gaze accuracy at the upper corners of the screen when the user sits close to the screen.
3. The degree-of-accuracy and precision over percentage-of-population numbers result from extensive testing across representatives of the whole population. We have made use of hundreds of thousands of diagnostic images and performed tests on approximately 800 individuals with
different conditions, vision, ethnicities, everyday dust, smudges or blemishes around their eyes, with eyes out of focus, etc. This has resulted in a much more robust and high performance eye tracking experience and a much more realistic representation of true performance across the
whole population, not just in a mathematically “ideal” scenario.
Downloads
Tobii Dynavox PCEye 5 Brochure
User Manual - Tobii Dynavox PCEye 5
